- 3 set of basket
- Speed range: (20~200)rpm
- Speed accuracy: ±2rpm
- Temperature range : ambient to +45.0℃

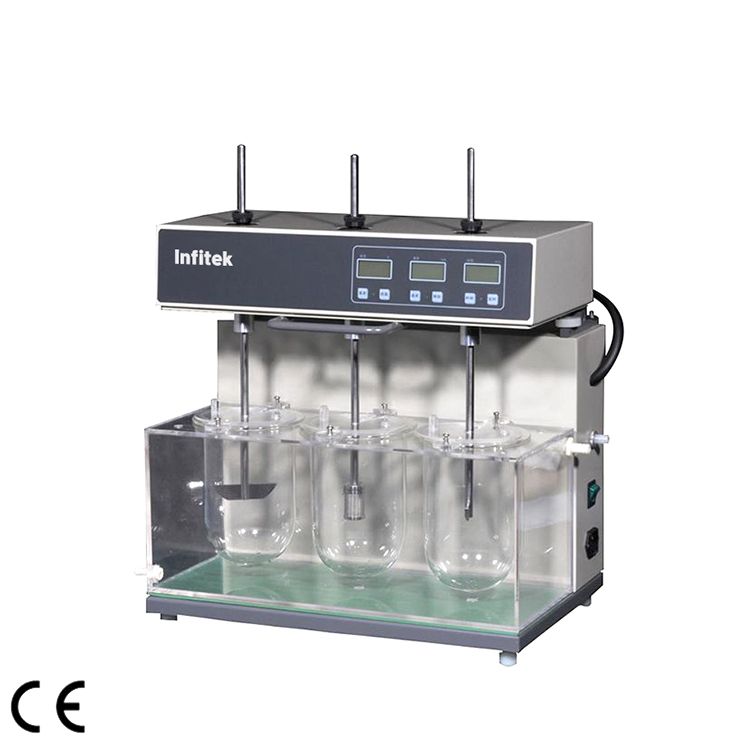

Dissolution Tester, DIST-3E
Description
DIST series of instruments are used to examine the dissolving speed and degree of solid preparations like drug tablets or capsules in the specified solvents.
Applicable standards:
- National standard( Chinese codex ) /2015
- Industry standard(Dissolution tester )JB/T 20105-2007
Features:
- It has three vessels and three poles arranged on one line.
- The head part of the instrument can be artificially turned over smoothly and flexibly.
- The basket units and paddle units are made of imported stainless steel (SUS316L).
- The magnetism-pumped circular water current can heat the system evenly, and the bath liquid canachieve an equal temperature.
- A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
- It can be operated conveniently by keystroke. The measurement result is displayed by LCD. The preset and real data can be displayed alternately in time.
- Automation: auto-test, auto-diagnose, auto-alarm.
Specifications
Model | DIST-3E |
Speed range | (20~200)rpm |
Speed accuracy | ±2rpm |
Temperature range | ambient to +45.0℃ |
Temperature Stability | ±0.3℃ |
Preset timing nine points | (5~900)min |
Time accuracy | ±0.5min |
Paddle radial run-out | ±0.5mm |
Basket radial run-out | ±1.0mm |
Power | 220V/50Hz/600W or 110V/60Hz/600W |
Dimension | (510*300*480)mm³ |
