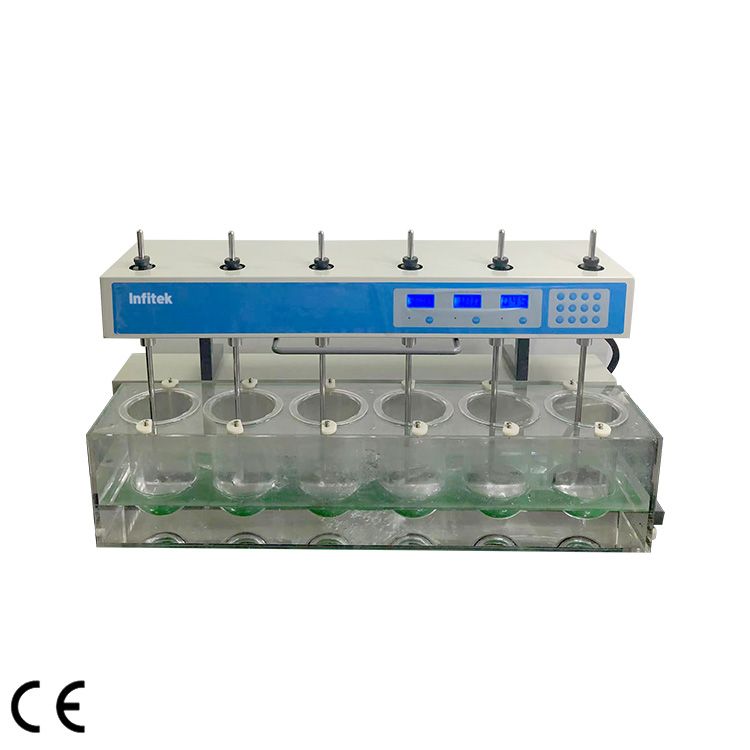

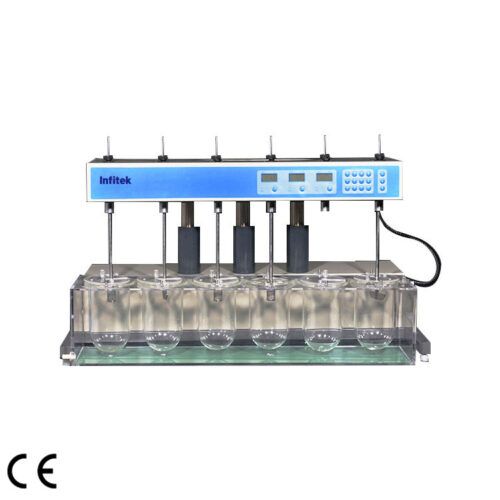

Dissolution Tester, DIST-6E

  • Speed range: (20~200)rpm
  • Speed accuracy: ±1rpm
  • Temperature range: ambient to +45.0℃
  • Temperature Stability: ±0.3℃

Share the product


DIST series of instruments are used to examine the dissolving speed and degree of solid preparations like drug tablets or capsules in the specified solvents.

Applicable standards:
National standard( Chinese codex ) /2013
Industry standard(Dissolution tester )JB/T 20105-2007

It has six cups and six paddles, arranged on one line.
The head part of the instrument can be artificially turned over smoothly and flexibly.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LCD. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
The dissolution parameters of’ Chinese codex 2010′ are stored in and can be taken out at anytime.


·  Speed range (20~200)rpm
·  Speed accuracy  ±1rpm
·  Temperature range ambient to +45.0℃
·  Temperature Stability ±0.3℃
·  Preset timing nine points  (1~999)min
·  Time accuracy ±0.5min
·  Paddle radial run-out  ±0.5mm
·  Basket radial run-out ±1.0mm
·  Power 220V/50Hz/1200W or 110V/60Hz/1200W
·  Dimension  (960*440*480)mm3
