- Electric Lifting
- Tester Vessel: 1200ml
- Speed range : (20~200)rpm
- Speed accuracy : ±1rpm
- Temperature range : ambient to +45.0℃

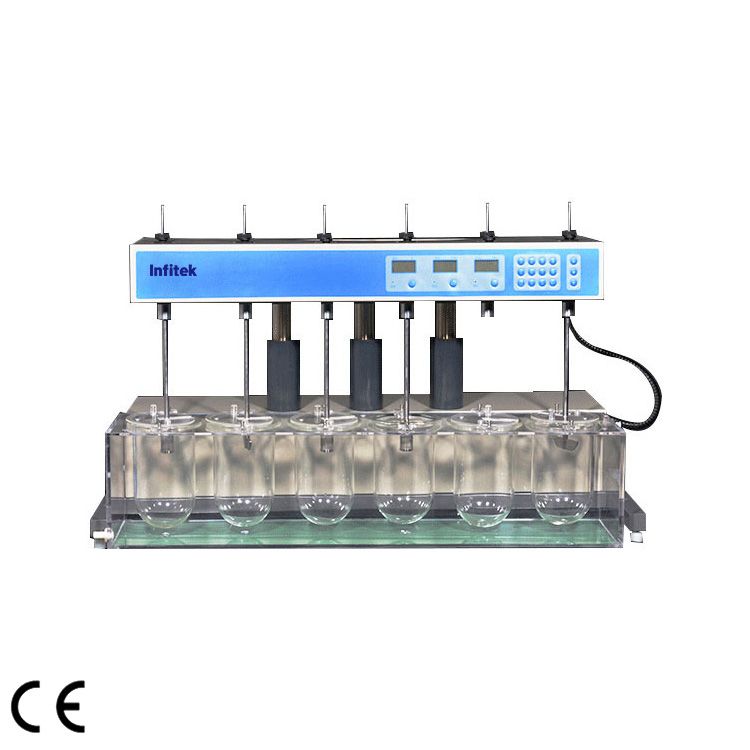

Dissolution Tester, DIST-6
Description
DIST series of instruments are used to examine the dissolving speed and degree of solid preparations like drug tablets or capsules in the specified solvents.
Applicable standards:
National standard( Chinese codex ) /2015
Industry-standard(Dissolution tester )JB/T 20105-2007
Features:
It has six cups and six paddles, arranged on one line.
The machine head is electrically lifted and lowered, ensuring smooth and flexible operation.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
An MPU is used in the dissolution tester to automatically control the temperature, rotational speed, and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LCD. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
The dissolution parameters of Chinese codex 2000 are stored in and can be taken out at any time.
Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.
Specifications
Model | DIST-6 |
Speed range | (20~200)rpm |
Speed accuracy | ±1rpm |
Temperature range | ambient to +45.0℃ |
Temperature Stability | ±0.3℃ |
Preset timing nine points | (1~999)min |
Time accuracy | ±0.5min |
Paddle radial run-out | ±0.5mm |
Basket radial run-out | ±1.0mm |
Power | 220V/50Hz/1200W or 110V/60Hz/1200W |
Dimension (W*D*H) | 960*320*480mm |
Package size (W*D*H) | 1230*540*630mm |
G.W. (kg) | 82kg |
