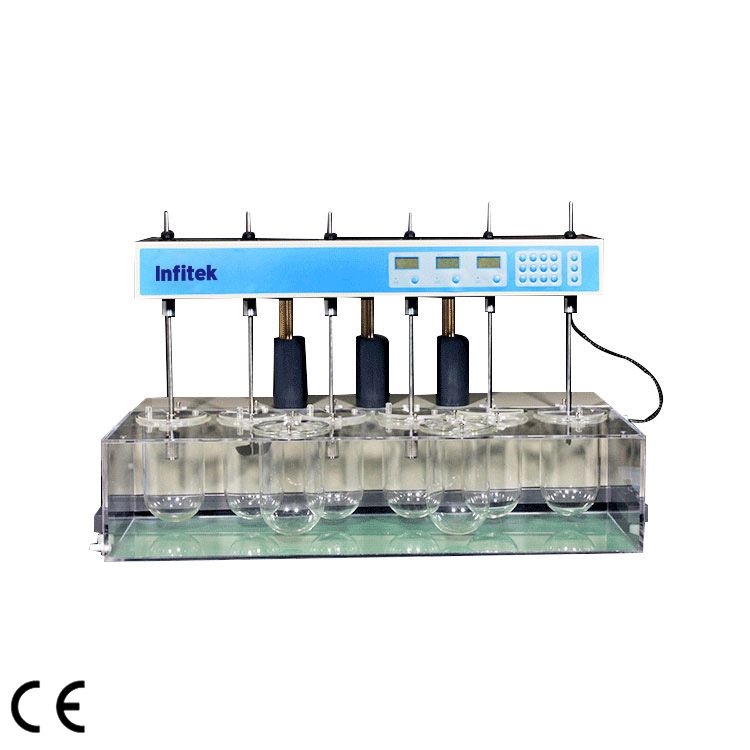

Dissolution Tester, DIST-8

  • Electric Lifting
  • Tester Vessel: 1200ml
  • Speed range: (20~200)rpm
  • Speed accuracy: ±1rpm
  • Temperature range: ambient to +45.0℃

Share the product

Description

DIST series of instruments are used to examine the dissolving speed and degree of solid preparations like drug tablets or capsules in the specified solvents.

Applicable standards:

·  National standard( Chinese codex ) /2015

·  Industry standard(Dissolution tester )JB/T 20105-2007

Features:

· It has eight vessels and six poles, with six vessels and six poles in front and other two vessels at back.

· The machine head is electrically lifted and lowered, ensuring smooth and flexible operation.

·  The basket units and paddle units are made of imported stainless steel (SUS316L).

·  The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.

·  A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.

·  It can be operated conveniently by keystroke. The measurement result is displayed by LCD.The preset and real data can be displayed alternately in time.

·  Automation: auto-test, auto-diagnose, auto-alarm.

· The dissolution parameters of’Chinese codex 2000’are stored in and can be taken out at anytime.

·  Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.

Specifications

Speed range (20~200)rpm
Speed accuracy  ±1rpm
Temperature range ambient to +45.0℃
Temperature Stability ±0.3℃
Preset timing nine points  (1~999)min
Time accuracy ±0.5min
Paddle radial run-out  ±0.5mm
Basket radial run-out ±1.0mm
Power 220V/50Hz/1200W or 110V/60Hz/1200W
Dimension  (960*320*480)mm3
