- Comply with 21CFR
- Tester Vessel: 1200ml
- Amplitude of swing of stirring paddle: ≤0.3mm
- Amplitude of swing of rotation basket: ≤0.8mm
- Speed adjustable range : 20-200 rpm

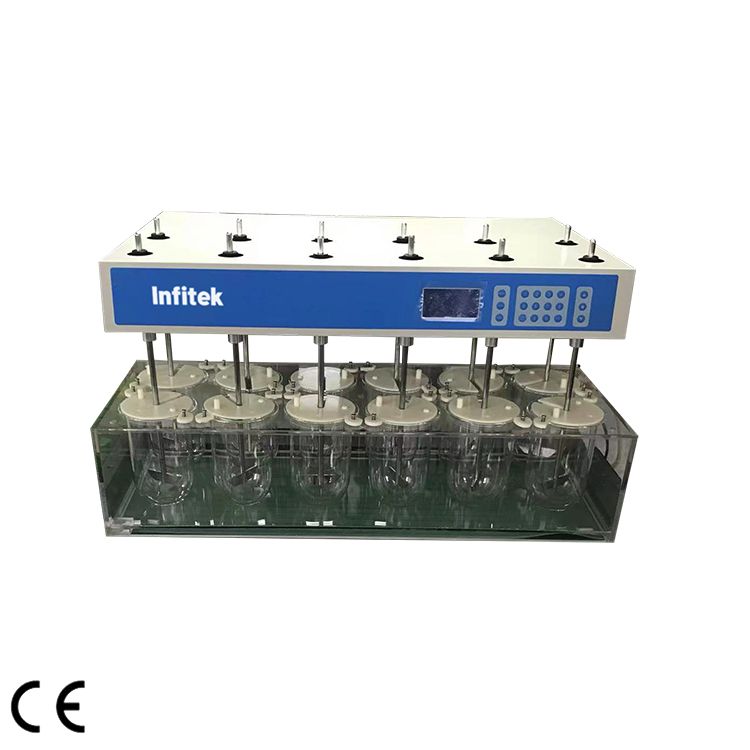

Dissolution Tester, DIST-12
Description
Features:
The head moves up/down automatically.
Available for installation of 12 basket rods or paddle rods.
Available for installation of 12 new dissolution cups with the height of 185mm and shading dissolution cups as well.
Friendly human-computer interface, with simple and convenient operation.
All the working parameters can be preset and saved automatically, without the need to set repeatedly when the instrument is started next time
Accurate rotating speed, steady operation and low energy consumption.
Thermostatic water bath adopts built-in integrated temperature sensor and new software and hardware temperature measurement and control mode, which is featured by fast temperature rise and high precision; temperature deviation can be corrected with software conveniently.
Independent operation of startup, pause and reset for experimental timing.
Automatic protection functions such as self-inspection fault alarm and over-temperature protection, etc.
The paddle rod, basket rod and basket turning body are all made of stainless steel material meet the requirements of Chinese Pharmacopoeia in quality and performance.
Specifications
Main technical indexes of dissolution tester:
- Large screen liquid crystal display and intelligent menu operation.
- Electronic sensor can monitor the temperatures of various point of water bath case.
| Amplitude of swing of stirring paddle | ≤0.3mm |
| Amplitude of swing of rotation basket | ≤0.8mm |
| Deviation of rotating rod and axle of dissolution cup | ≤1mm |
| Speed adjustable range | 20-200 rpm |
| Rotating speed resolution | 1 time/min |
| Water bath temperature adjustment range | room temperature-45ºC |
| Temperature resolution | 0.1ºC |
| Temperature control accuracy | ≤±0.3ºC |
| Number of sampling periods | 9 different sampling periods can be preset. |
| Time of sampling period | 1-999min optional for each period，9 sampling periods can be counted down by sections. |
| Timing error | ±0.5min |
| Pharmacopoeia parameter calling | The instrument saves 300 dissolution test parameters in Chinese Pharmacopoeia, which can be called randomly. |
| Standard configuration | 12 paddles and 12cups |
| Electrical heating power | 1100W |
