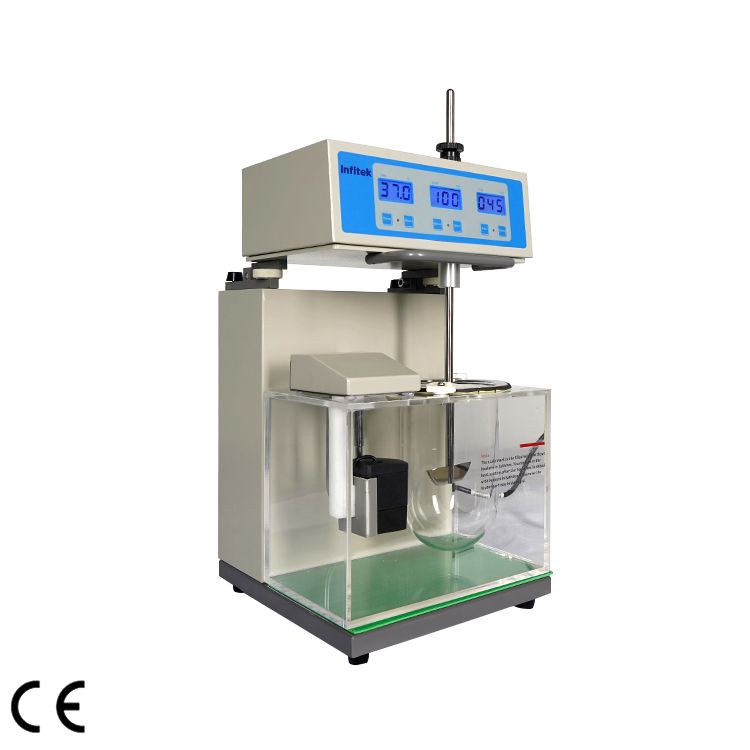

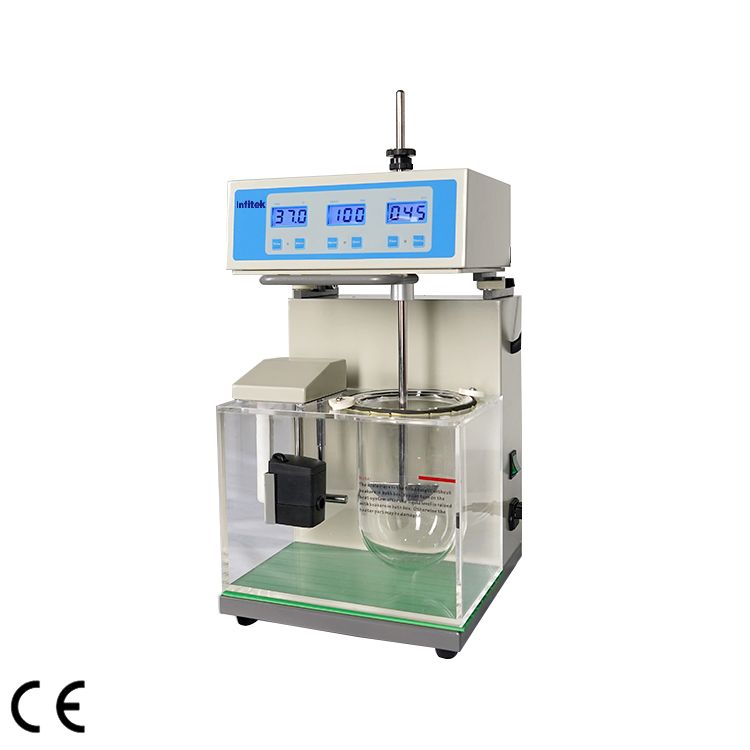

Dissolution Tester, DIST-1E

  • 1 set of basket
  • Speed range: (20~200)rpm
  • Speed accuracy: ±2rpm
  • Temperature range: ambient to +45.0℃

Share the product




DIST series of instruments are used to examine the dissolving speed and degree of solid preparations like drug tablets or capsules in the specified solvents.
Applicable standards:
National standard( Chinese codex ) /2015
Industry standard(Dissolution tester )JB/T 20105-2007
It has one vessels and one poles arranged on one line.
The head part of the instrument can be artificially turned over smoothly and flexibly.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LCD. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.




Model DIST-1E
Speed range (20~200)rpm
Speed accuracy ±2rpm
Temperature range ambient to +45.0℃
Temperature Stability  ±0.3℃
Preset timing nine points (5~900)min
Time accuracy  ±0.5min
Paddle radial run-out ±0.5mm
Basket radial run-out ±1.0mm
Power  220V/50Hz/600W or 110V/60Hz/600W
Dimension (260*300*480)mm³

Accessories & Package

Accessories & Package
