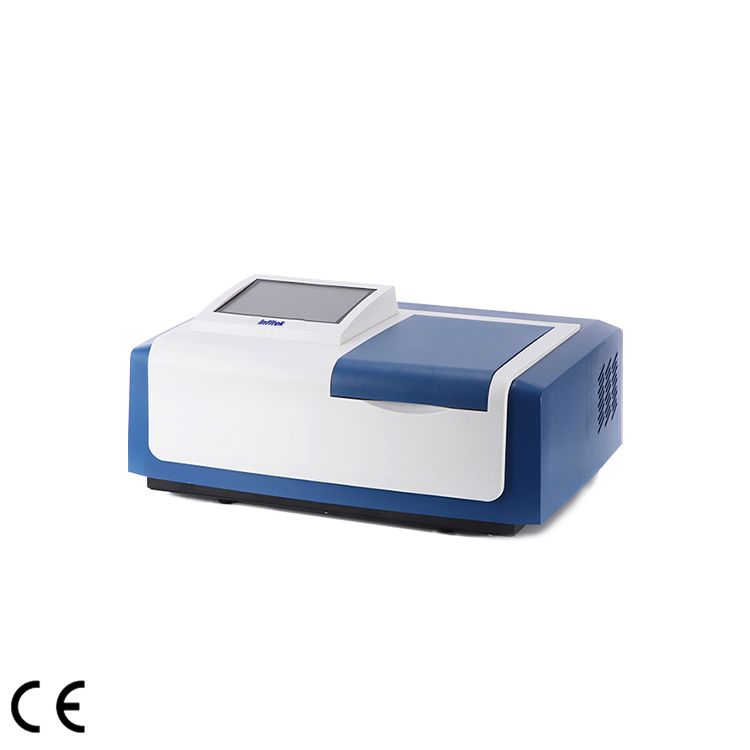

Double Beam UV-Vis Spectrophotometer SP-IUV7 has outstanding test precision and very competitive prices, and With powerful functions, the equipment shows great performance in qualitative and quantitative testing
DESCRIPTION
DESCRIPTION
Main Features of Double Beam UV-Vis Spectrophotometer SP-IUV7
1. Double beam optical system, and blazed holographic
2. G They have outstanding test precision and very competitive prices.
3. 8-inch color touch-screen, cutting-edge user interface, powerful functions, and easy operation.
4. With powerful functions, the equipment shows great performance in qualitative and quantitative testing, such as:
5. The equipment is designed with a sophisticated power protection system. With a high capacity of internal memory, it can store testing results, scanned images, regression equations, and correction data. Therefore, it follows a fast initialization when power is on.
6. The instrument can be connected with a dedicated printer, which can print testing results, or draw curves from spectral scanning, fixed wavelength time-based scanning, and linear regression.
7. With a USB COM port the device can be connected to a PC, which can not only enhance the performance in data testing and spectrum scanning but also expand the memory to save more testing results.
SPECIFICATIONS
SPECIFICATIONS
| Model | SP-IUV7 |
| Photometry | Double Beam |
| Monochromator Type | Czerny-Turner |
| Focal Length | 160mm |
| Grating | 1200 lines/mm |
| Detector | Silicon Photocell |
| Spectrum Bandwidth | 1.8nm |
| Wavelength Setting | 8-inch color touch-screen |
| Wavelength Range | 190-1100nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | ≤0.2nm |
| Scanning Speed | Fast-Medium-Slow |
| Stray Light | ≤0.03%T (at 220nm NaI, 360nm NaNo2) |
| Photometric Range | 0.0-200.0%T -0.301-4.000A 0.000-9999C |
| Photometric Accuracy | ±0.3%T ±0.002Abs (0-0.5A) ±0.004 Abs (0.5-1A) |
| Photometric Repeatability | ≤0.15%T 0.001 Abs (0-0.5A) 0.002 Abs (0.5-1A) |
| Baseline | ≤±0.002A (200-1090nm) |
| Noise | 100%（T）noise≤0.15%(T), 0%（T）noise≤0.1%(T) |
| Drifting | ≤0.0009 Abs/30min (250nm and 500nm after 2h warm up) |
| Power | AC220V±22V 50Hz±1Hz, 200W |
| Packaging Size | 710mm×590mm×505mm 0.21M3 36kg |
Standard Accessories
| Operation manual | 1 |
| Glass cuvette | 1cm 4pcs |
| Quartz cuvette | 1cm 2pcs |
| Power cable | 1 |
| Fuse | 2pcs |
Optional Accessories
UV WIN8 Spectrum data processing software
