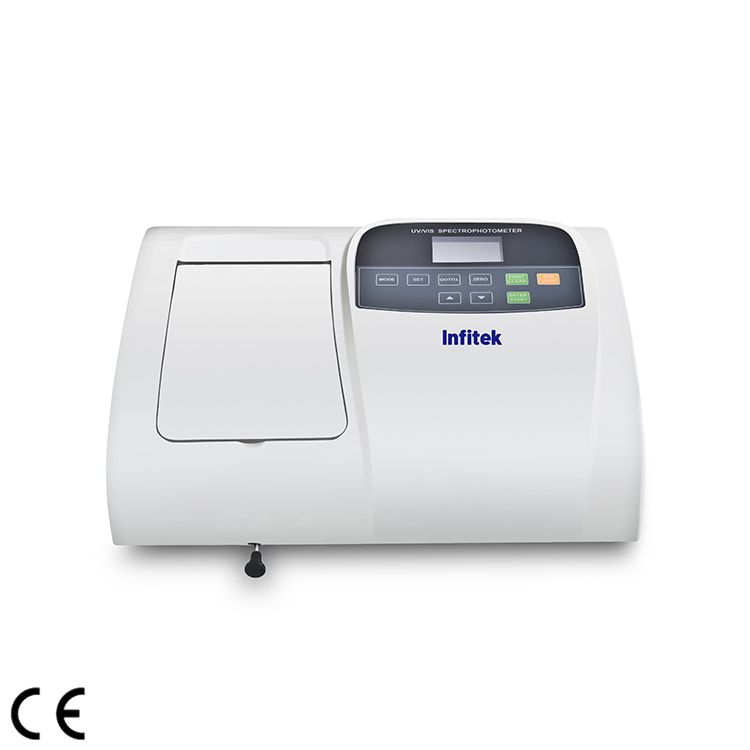

UV VIS Spectrophotometer, Single Beam, SP-MUV5100

  1. Wavelength Range: 190-1000nm
  2. Wavelength Accuracy: ±2nm
  3. Data Output Port: USB & Parallel Port(Printer)
  4. 2.5 inches LCD screen
  5. Multiple results readout

Share the product

Description

DESCRIPTION

DESCRIPTION

Spectrophotometer

1.  2.5 inches LCD screen

Equipped with a 2.5 inches LCD screen to give a clear display of standard curves and groups of results.

2. Standard curve

Can set up various standard curves according to customer ‘s solutions and find the concentration of unknown solutions.

3. Imported deuterium lamp

SP-MUV5100 is equipped with imported deuterium lamp which ensures low stray light, photometericaccuracy and is easy to be replaced.

4. Data output

Equipped with USB port to connected with a PC to display spectrum scanning,kinetics and Multi wavelength testing results on the screen.The software is

optional

5. Multiple results readout

Can display wavelength,absorption and transmittance with 5 results per screen.It also has a memory store of up to 200 results.

6. Auto setting wavelength

Users set wavelength automatically through arrow keys to avoid operation errors.

SPECIFICATIONS

SPECIFICATIONS

 Model SP-MUV5100
 Optical System Single beam, Grating 1200 lines/mm
 Wavelength Range 190-1000nm
 Bandwidth 2nm
 Wavelength Accuracy ±2nm
 Wavelength Repeatability 0.5nm
 Wavelength Setting Auto
 Photometric Accuracy ±0.5%T
 Photometric Repeatability ≤0.2%T
 Photometric Range -0.3-3A,0-200%T,0-9999C
Photometric  Mode T,A,C,F
 Stray Light ≤0.1%T
 Stability ± 0.002A/h @ 500nm
 Display 128*64  LCD
 Detector Silicon Photodiode
 Light Source Tungsten  Lamp&Deuterium Lamp
 Output USB & Parallel Port(Printer)
 Power Requirements AC 85~250V
 Dimension 420*280*180mm
 Weight 12kg

Standard Accessories

Item Description Quantity Unit
1 Spectrophotometer 1 set
2 1cm Glass cuvette 4 pcs
3 Power cord 1 pcs
4 User’s Manual 1 pcs
5 1cm quartz cuvette 2 pcs
6 Dust Cover 1 pcs

PACKAGE

PACKAGE

Spectrophotometer-package

CERTIFICATE

CERTIFICATE

Spectrophotometer-Certification
