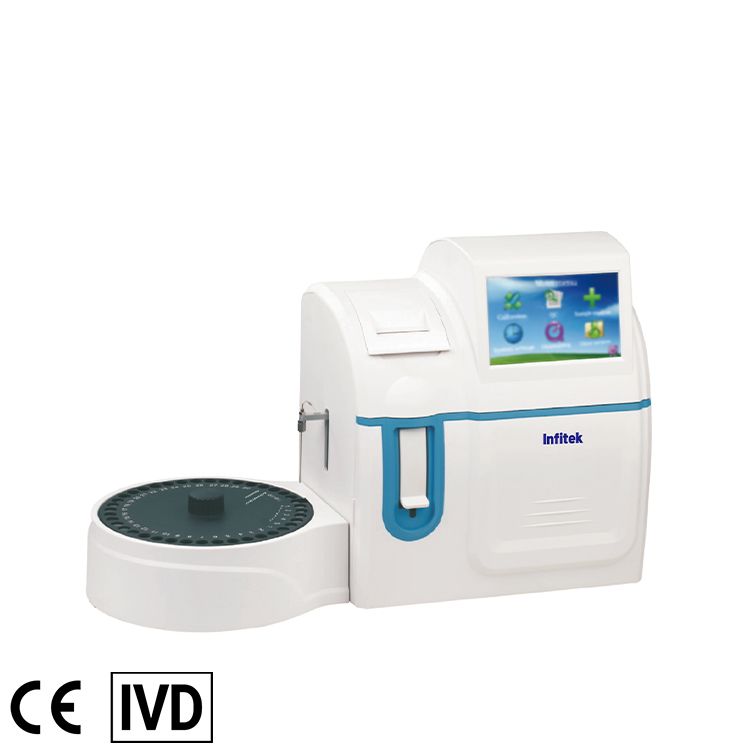

Electrolyte Analyzer, EA-7-25

  1. Measuring technology: Ion Selective Electrode(ISE)
  2. Item:K、Na、Cl、 iCa、nCa、TCa、pH 、TCO2 、AG
  3. Analysis speed: ≤25 seconds
  4. Sample consumption:60-300μL(Item 3 to item 11)
  5. Storage:Up to 10000 test results
  6. 7 inches color super large high-definition touch screen
  7. Optional Auto sampler :  39 positions (Including 5 emergency and 2 QC)

Share the product

Description

Description

Electrolyte analyzers are indispensable in clinical testing. In clinical practice, it mainly tests and maintains the balance of osmotic pressure in human blood and body fluids; in surgery, burns, diarrhea, acute myocardial infarction and other patients who need a large amount of balanced fluid replacement, the test and detection of ions are very important. EA Series Electrolyte Analyzers are highly precise and accurate, providing accurate, reliable, fast, and easy-to-use results for any sample. Therefore, ion detection is an essential general equipment for hospitals at all levels.

Features

Economical and practical:

  • A product with a high usage rate and a wide range of users.
  • Switch on and off at any time, saving reagents, reagent test cost ≤ $0.2
  • The cost of consumables is low, and the hospital can quickly recover the cost within a few months;

Easy to operate:

  • Optional automatic sampling, calibration is simple and practical.
  • It supports two reagent modes of environmental protection reagent pack and traditional reagent bottle
  • It supports four common types of sample adding cups, including Telcon cup, biochemical cup, bullet head and original test tube.
  • Optional full-automatic sampling device with original tube sampling and barcode scanning functions

Accurate measurement:

  • Adopt advanced ion measuring technology to ensure accurate measurement;
  • Imported electrode raw materials, long service life.
  • German CO2 sensor with a service life of up to 10 years;
  • Adopt automatic potential tracking correction technology to ensure measurement stability;

Advanced technology:

  • Automatic detection and filtering of fine air bubbles, waste liquid overflow alarm function
  • One analysis can do up to 9 items and 11 parameters (specific version);
  • The United States imports raw materials and key accessories, and the technical indicators have reached the international advanced level
  • With power-off protection function, the results can be automatically stored up to 10,000 sets of data;
  • It can be connected to the LIS system to facilitate hospital management;
  • Optional automatic sample feeding tray, with automatic cup-seeking detection system;
  • The user can switch the instrument on and off at any time 24 hours as needed to save costs;
  • After sample analysis, it has automatic flushing function to keep the electrode in good standby condition.

Specifications

Model EA-7-25-A EA-7-25-B EA-7-25-C EA-7-25-D
Test item K, Na, Cl K, Na, Cl, TCO2 K, Na, Cl, iCa, nCa, TCa, pH K, Na, Cl, iCa, nCa, TCa, pH, TCO2, AG
Sample Types Serum, Plasma, Whole blood, Cerebrospinal fluid and diluted urine
Sample consumption 60-300μL (Item 3 to item 11)
Measuring technology Ion Selective Electrode
Analysis time ≤25-40 seconds
Storage Up to 10000 test results
Printer Internal thermal printer
Electricity 220V±20V AC, 50Hz-60Hz, ≤120W
Ambient Conditions 15-40 °C( (60-104 F), ≤ 85% humidity
Communication Interface RS232
Optional T&K cup / blood collection tube Auto sampler :  39 positions (Including 5 emergency and 2 QC)
Dimension 340mm*200mm*380mm
Net weight 6Kg



Measuring range, resolution and accuracy:

Items Measuring Range Resolution Measuring Precision(CV%)
K+ 0.5-20.0mmol/L 0.01 mmol/L ≤1.0%
Na+ 15-200mmol/L 0.1 mmol/L ≤1.0%
Cl 15-200mmol/L 0.1 mmol/L ≤1.0%
Ca2+ 0.1-6.0mmol/L 0.01 mmol/L ≤1.0%
Li+ 0.1-5.0mmol/L 0.01 mmol/L ≤2.0%
pH 4-9pH 0.01 pH ≤0.5%
TCO2 2.0-70.0mmol/L 0.1 mmol/L ≤3.0%
