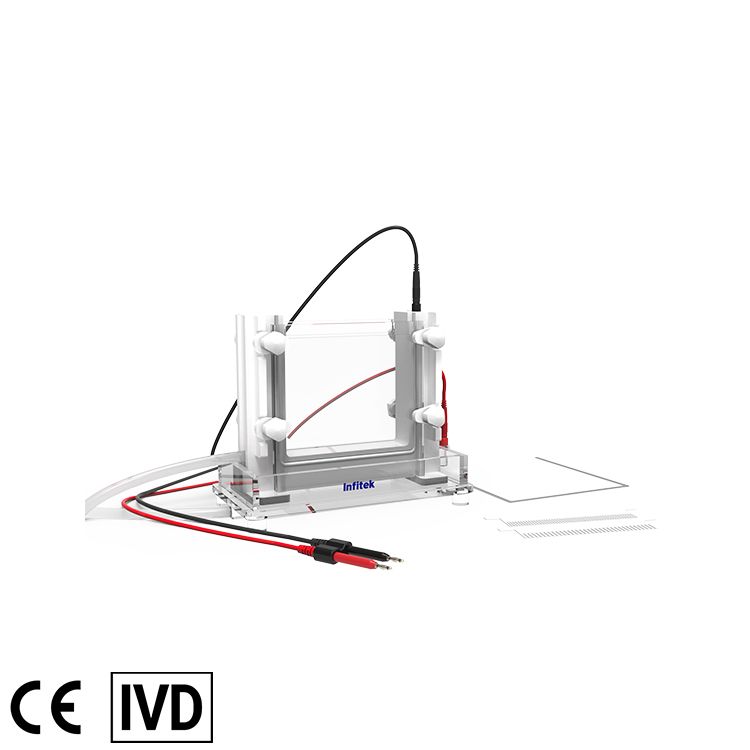

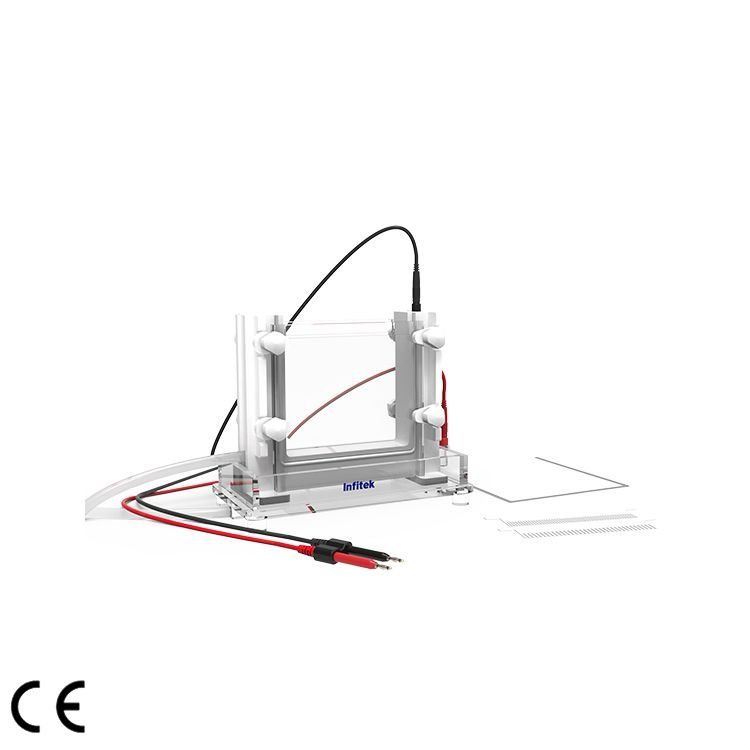

Vertical Electrophoresis Cell, GEP-VH-SCZ02

  1. Main body groove (main body): one
  2. Concave glass plate: 2 blocks
  3. Flat glass plate: 2 blocks

Share the product


Uses: This product is suitable for protein separation and identification and SSR molecular.


Thickened gel glass plate, durable.
Integrated design of concave plate and edge strip.
Special sealing mold to ensure no glue leakage.
Buffer outlets of the upper and lower tanks are convenient for removing residual liquid.
99.99% high purity platinum electrode has the best conductivity and corrosion resistance.


Overall dimensions (l× w× d)  220 * 130 * 190
Gel area (w× l)  150mm * 150mm
Glass area  180mm*180mm
Sampling comb  20, 34, 50 (optional gun sampling)
Gel thickness  1mm
Total buffer capacity  about 600ml.


name specifications quantity
Main body groove (main body) one
Concave glass plate two
Flat glass plate two
Sealing frame two
Sample comb 20 teeth two
34 teeth two
Upper and lower trough drain pipe two
wireway one
