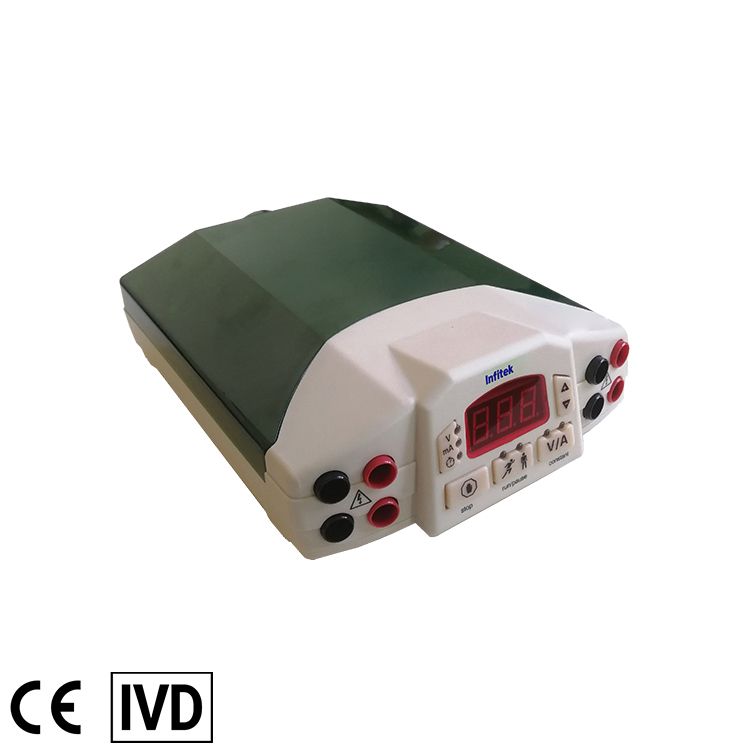

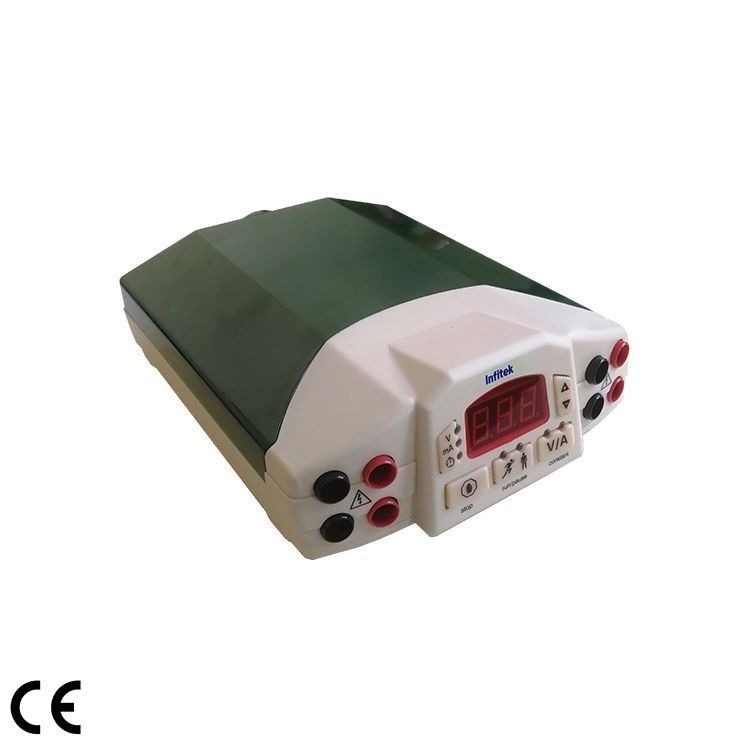

Mini basic electrophoresis apparatus, GEP-PH-300

  1. Output voltage:10-300V (continuously adjustable)
  2. Adopt advanced microcomputer control
  3. 0-999 minutes timing function
  4. Suitable for different input voltage requirements

Share the product

Description

1. Reliable work and stable performance
HT-300 basic electrophoresis apparatus
Adopt advanced microcomputer control power supply design scheme.
Good stability, light weight and small heat dissipation.
Effectively improve service life.

2. Beautiful appearance, fastening and durability
The latest design scheme is smooth and compact.
High strength material injection molding, impact resistance, corrosion resistance and aging resistance.
New flame retardant materials, reaching the international standard.
Silicone rubber operation keys, comfortable hand feeling and aging resistance.

3. powerful and easy to operate
Constant voltage and constant current arbitrary switching
0-999 minutes timing function
Automatic detection and error reporting of various fault phenomena
Setting parameters is simple and quick.
You can bring four identical electrophoresis tanks at a time.

4. The scope of application is wide
Suitable for different input voltage requirements around the world.
Suitable for a variety of horizontal, vertical, imprinting transfer electrophoresis experiments.

Specifications

Output voltage  10-300V (continuously adjustable)
Error  1V
Output current  4-400mA (continuously adjustable)
Accuracy  1ma
Output  100W (max)
Timing  1-999min (adjustable)
Package Dimension (W*D*H) (mm) 320*320*220
G.W.(kg)



2
