- Gel area: 30×19cm
- Gel thickness: 1mm
- Sampling comb: 68 teeth, 102 teeth (Gun samplingcan be used.)

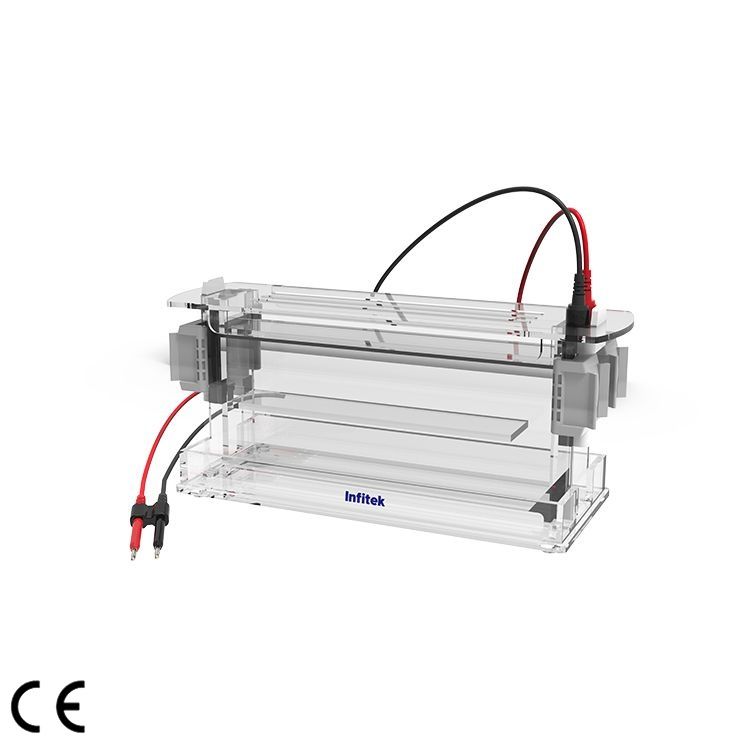

Vertical Electrophoresis Tank, GEP-VH-SCZ04C
Description
This product is widely used for high-throughput SSR experiments of non-denaturing polyacrylamide gels.
- It can be connected to a low-temperaturecirculator, and the electrophoresis temperature is constant.
- The integrated design of glass and edge strip makes gelmaking simple.
- Large sample volume, up to 200 samples can be electrophoresed at one time.
- Two groups of high-purity platinum electrodes provide a stable electric field for each rubber plate
Specifications
| Model | GEP-VH-SCZ04C |
| External Dimension | 530*340*310mm |
| Gel Area | 300*190mm |
| Sampling Comb | 102teeth,68teeth（gun sampling） |
| Adapted | GEP-PH-600C: Can run two electrophoresis tanks simultaneously |
| power supply | GEP-PH-600D: Can run four electrophoresis tanks simultaneously |
| Name |
Unit |
Quantity |
|
Main body of electrophoresis tank |
Set |
1 |
|
Gel glass concave plate (1.0mm) |
Piece |
2 |
|
Gel glass plate |
Piece |
2 |
|
1.0mm 102-teeth Sampling comb |
Piece |
2 |
|
1.0mm68-teeth Sampling comb |
Piece |
2 |
|
Drain pipe |
Piece |
2 |
|
Stationery folder |
Piece |
8 |
|
Power supply wire |
Piece |
1 |
|
Air bubble hook |
Piece |
2 |
