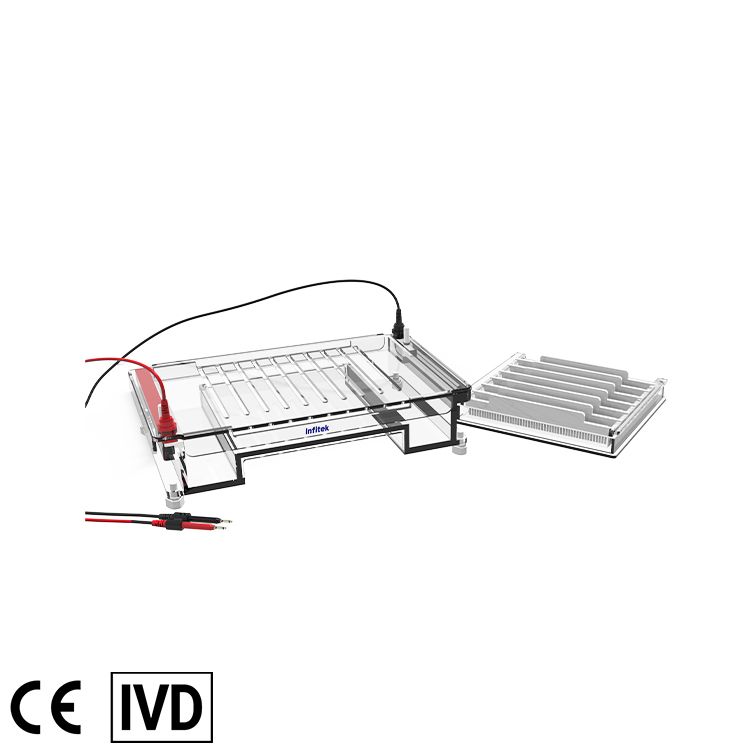

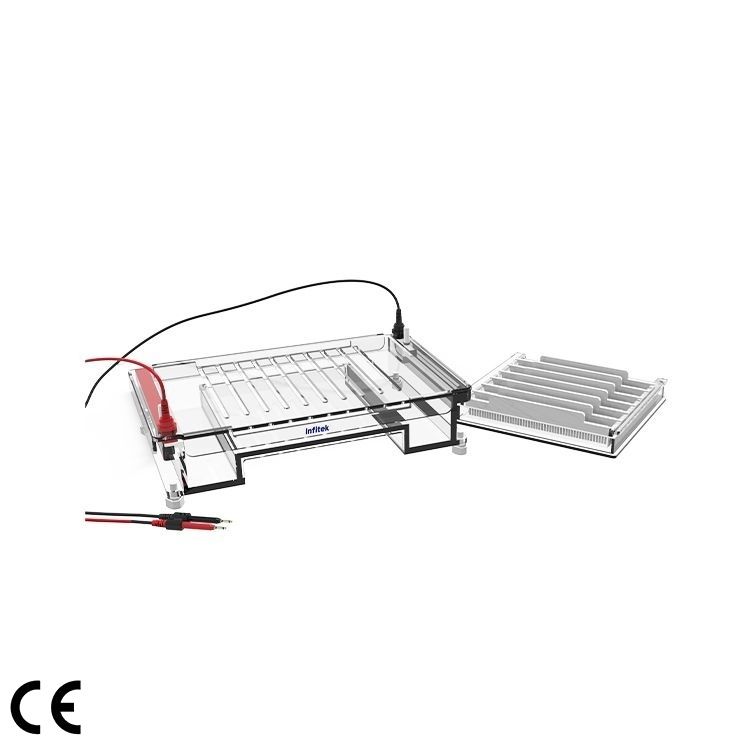

Horizontal Electrophoresis Cell, GEP-HH-SUB04

  1. Main body groove (upper cover): one
  2. Main tank (lower tank): one
  3. Glue maker: one

Share the product


Usage: This product is suitable for nucleic acid electrophoresis, separation and identification of DNA, and determination of its molecular weight.


More than 350 samples can be electrophoresed at one time.
The gel tray positioning card slot can be divided into 4 rows /7 rows of sample adding combs on average.
Special glue box is convenient for glue making.
The sample adding comb can be used for gun loading to meet the requirements of high-throughput electrophoresis.
The bottom adjustment knob can effectively adjust the level of the electrophoresis tank.
The electrode can be replaced for easy maintenance.
99.99% high purity platinum electrode has the best conductivity and corrosion resistance.


Basic parameters
Overall dimensions (l× w× d)  420 * 270 * 85
Gel area (w× l)  245mm * 250mm
Sample comb  52 teeth (can arrange guns and add samples)
Total buffer capacity  about 1600ml.


name specifications quantity
Main body groove (upper cover) 1
Main tank (lower tank) 1
Glue maker 1
tray 1
Sample comb 52 teeth 7
26 teeth 4
wireway 1
