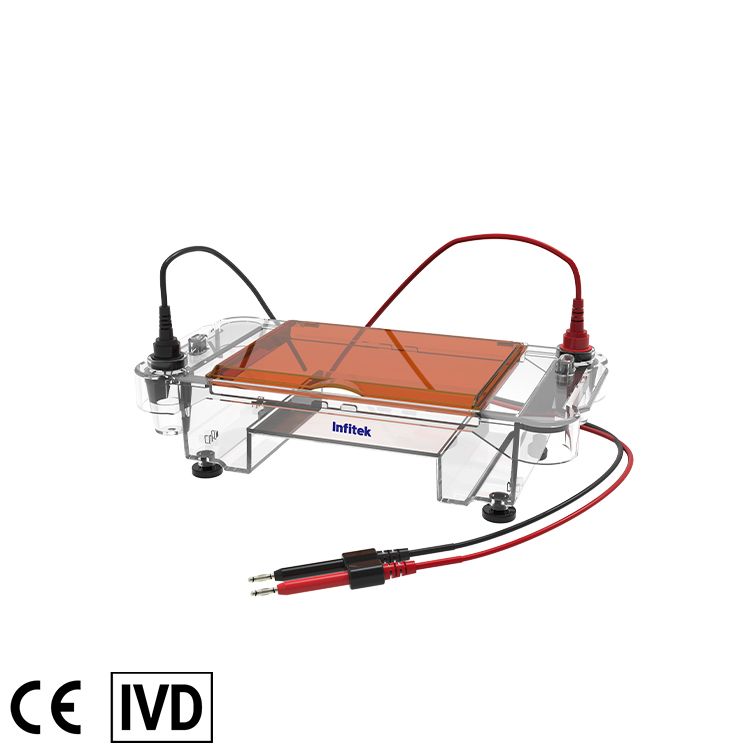

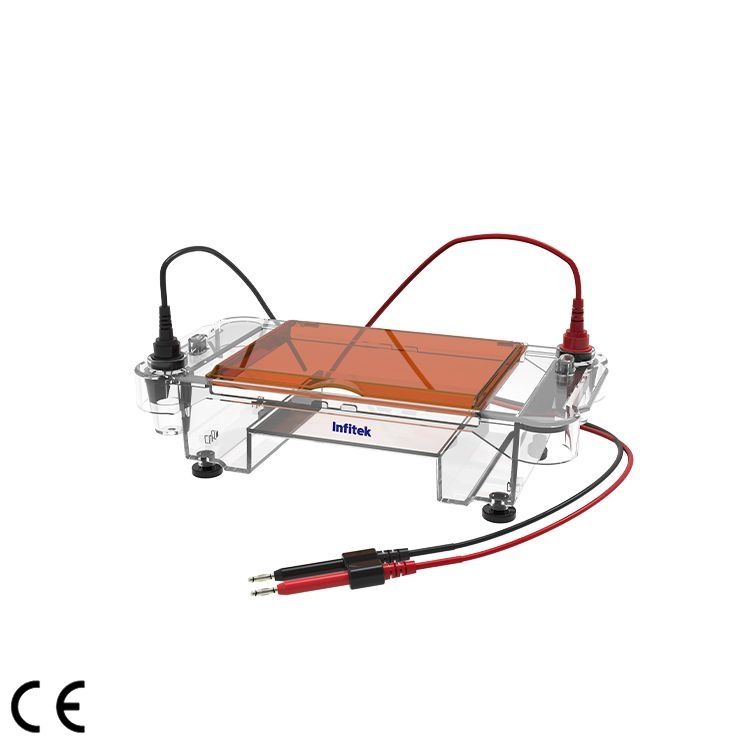

Horizontal Electrophoresis Tank, GEP-HH-SUB03

  • Gel area: 13*20cm, 13*15cm
  • Buffer volume: 800mL
  • Blue light shielding clamshell design can effectively dissipate heat.
  • 99.99% high purity platinum electrode has the best conductivity.

Share the product



This product is suitable for nucleic acid electrophoresis to separate and identify DNA and determine its molecular weight.


  • Polycarbonate high strength transparent plastic injection molding, no leakage and impact resistance.
  • Professional blue light shielding clamshell design, opening the lid can effectively dissipate heat.
  • Combined with the blue electrophoresis monitor, it can effectively shield the blue light and observe the clear spectral band.
  • The horizontal adjustment knob at the bottom can adjust the level of the electrophoresis tank.
  • Two different gel sizes meet the requirements of common and high-throughput electrophoresis.
  • The front and back design of the plastic box saves space.
  • The background bar at the bottom of the tray is more convenient to observe the loading.
  • 99.99% high purity platinum electrode has the best conductivity.


Technical Indicators
Gel area (W*L) 13*20cm, 13*15cm
Sample adding comb 1.0mm 14, 18 and 26 teeth
1.5mm 18 teeth
Buffer volume 800mL
