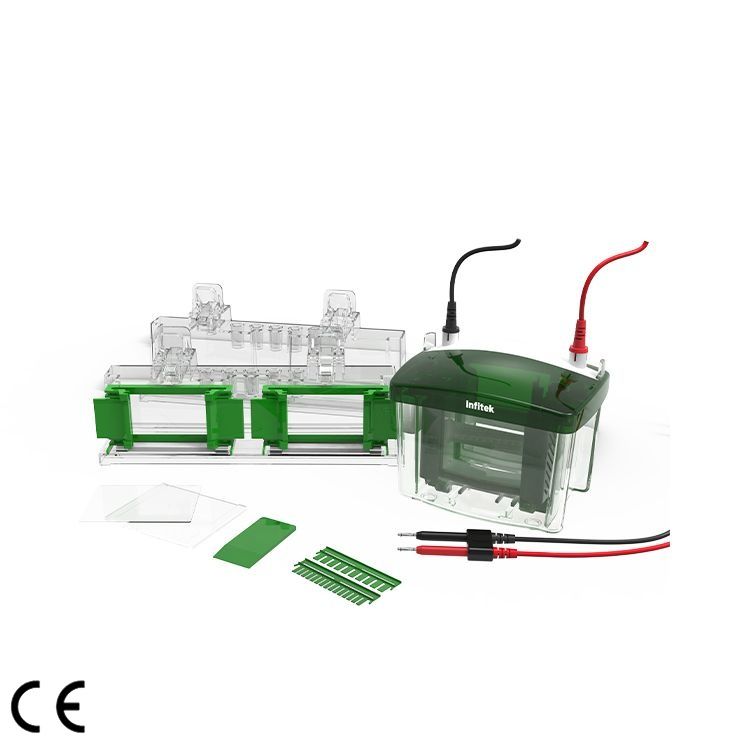

Mini Vertical Electrophoresis Tank, GEP-VH-4

  • Number of gels: 1-4 p
  • Gel thickness: 0.75, 1.0 and 1.5mm(optional)
  • Samplingcomb: 10 teeth,15teeth

Share the product


This product is ideal for subject research, screening new samples, and evaluating sample preparation conditions.


  • The edge sealing strip is permanently fixed on the long glass plate to ensure the precise alignment of the glass plate and prevent glue leakage;
  • The plastic frame of the cam lock is easy to operate and can accurately align the glass plate on any plane;
  • Special plastic electrophoresis comb does not inhibit gel polymerization; built-in ridges avoid air contact and ensure uniform gel polymerization;
  • The long glass plate with edge-sealing pads is thickened so that the glass plate will not be broken;
  • The one-piece gel-filling rack is arranged in parallel, and two gels can be observed at the same time.
  • High-purity platinum electrode wire to achieve the best electrical conductivity;
  • This product can be used with GEP-PH-300 electrophoresis power supply.


Number of gels 1-4 pcs.
Gel thickness 0.75, 1.0 and 1.5mm(optional)
Sampling comb 10 teeth,15teeth
Gel size (L*W) thick plate 101*82mm; thin plate 101*73mm
Gel size hand-poured gel (8.3×7.3cm); Precast gel (8.6×6.8cm)

Standard configuration

Name Quantity
Upper cover of electrophoresis cell (including wires) 1set
Lower shell of electrophoresis cell 1pc.
Electrode core 1set
Electrode secondary core 1set
Thick gel glass plate 5pcs.
Thin gel glass plate 5pcs.
10 teeth sampling comb 5pcs.
Gel casting tray 2pcs.
Gel casting frame 4pcs.
Single gel barrier 1pc.
Gel scoop 1pc.
Glass drying rack 1pc.
