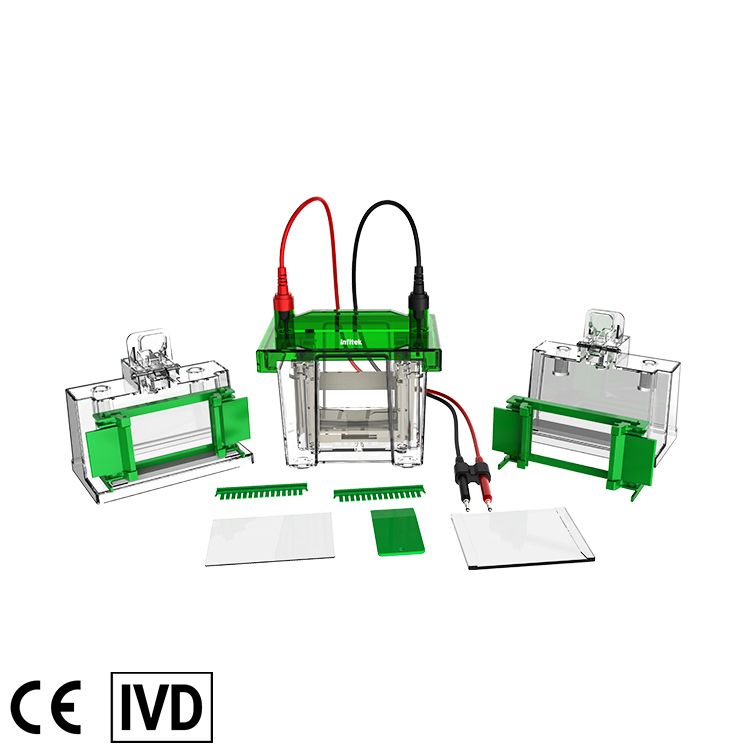

Mini Vertical Electrophoresis Tank, GEP-VH-1

  • Number of gels: 1-2 pieces
  • Sample comb:10, 15 teeth
  • Can be used as double glue, and the strip is clear
  • 99.99% high purity platinum electrode

Share the product



This product is a device for vertical electrophoresis of a small number of accounting and protein samples.


  • High transparency polycarbonate injection molding, durable, easy to observe;
  • Integrated design of glass gasket ensures no glue leakage.
  • Instead of flat concave plate, it is not easy to damage and cheap.
  • Special glue making rack, simple and reliable glue making operation.
  • Opening and closing the cover to ensure the safety of the experiment
  • Upper cover limit function, to ensure that the wrong electrode polarity will not be connected.
  • Opening and closing the cover to ensure the safety of the experiment
  • At the same time, it can be used as double glue, and the strip is clear;
  • 99.99% high purity platinum electrode has the best conductivity and strong corrosion resistance.


Basic parameters:
Overall dimensions (l*w*d) 150*120*130mm
Gel size (L*W) thick plate 101*83
thin plate 101*73mm
Gel area (L*W) hand jar glue 8.3*7.3cm
prefabricated glue 8.6*6.8cm
Number of gels 1-2 pieces
Sample comb 10, 15 teeth,
Gel thickness 0.75, 1.0 and 1.5mm thick (optional)
Total buffer capacity about 700ml


name specifications quantity
Electrophoresis tank (lower tank) one
Electrophoresis tank (upper cover) one
Electrode core (including gasket) one
Inner core frame one
Rubber seat (including gasket) two
Rubber frame two
Single rubber baffle one
Rubber shovel one
glass frame one
Thick glass plate five
thin glass plate . five
Sample comb 10 teeth two
15 teeth two
Electrophoretic wire one
