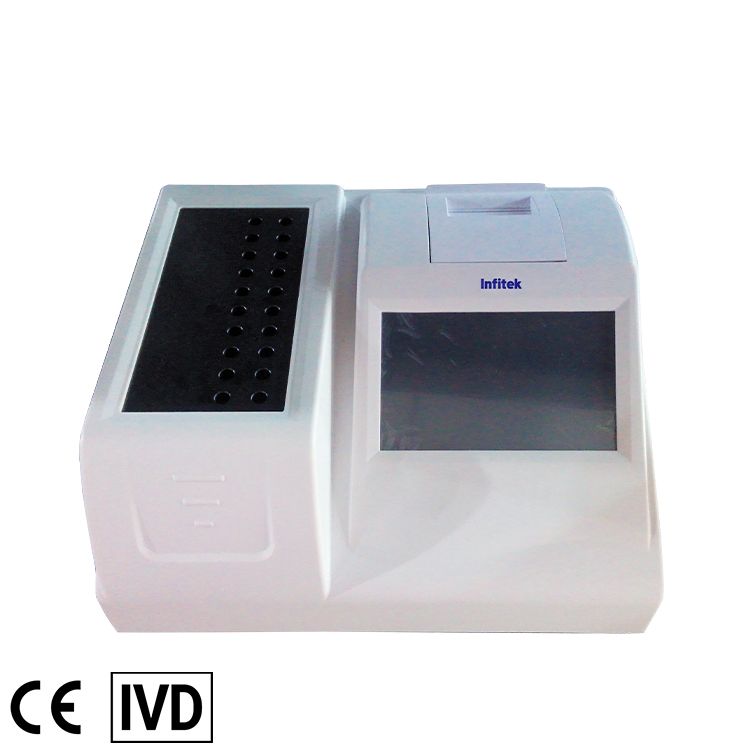

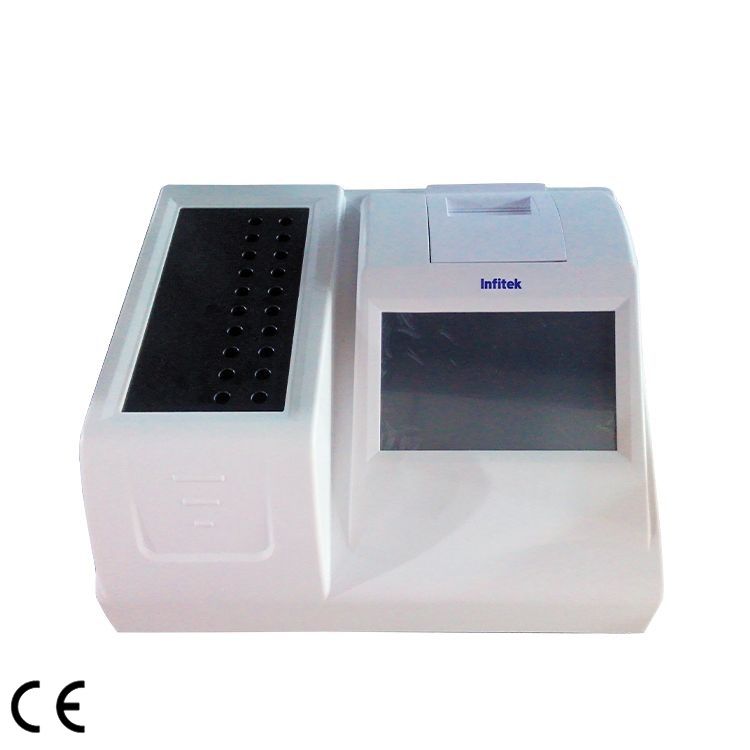

ESR analyzer, ESRA-20

  1. Loading capacity: 20 sample at same time
  2. Measuring time: 30/60 minutes selectable
  3. Throughput: 40 samples per hour
  4. Storage: 4,000 results
  5. Analysis result: Westergren ESR value (mm/hr)

Share the product



  1. Large color display, touch screen
  2. 20 channels, up to 40T/H
  3. Twoworking method: 30 mins or 60 mins
  4. ESR curve display and print out
  5. Barcode reader optional
  6. Can connect LIS


Item ESR analyzer, ESRA-20
Field of application Erythrocyte sedimentation rate analysis
Measuring principle Infrared sensor
Analysis result Westergren ESR value (mm/hr)
Throughput Up to 40 samples per hour
Reading channels 20
Loading capacity 20 sample at same time
Loading pattern Random
Measuring time 30 minutes or 60 minutes selectable
Sample interval 3 minutes
Measurement range (1-140)mm/h
Temperature compensation Refer to 18°C automatically (selectable)
Reading resolution ±0.1mm
Result resolution 1mm/1h, 1mm/2h
Blood level range 50mm~64mm
Display Color LCD screen
Input Touch screen
Interface RS-232 serial port
Print Internal thermal recorder
Storage 4,000 results
Power supply AC100-240V, 50-60Hz, 50W
Operation conditions Temperature 5C°~40°C  Humidity ≤80%
Dimension 365mm×300mm×180mm(L×W×H)
Net weight 11Kg
