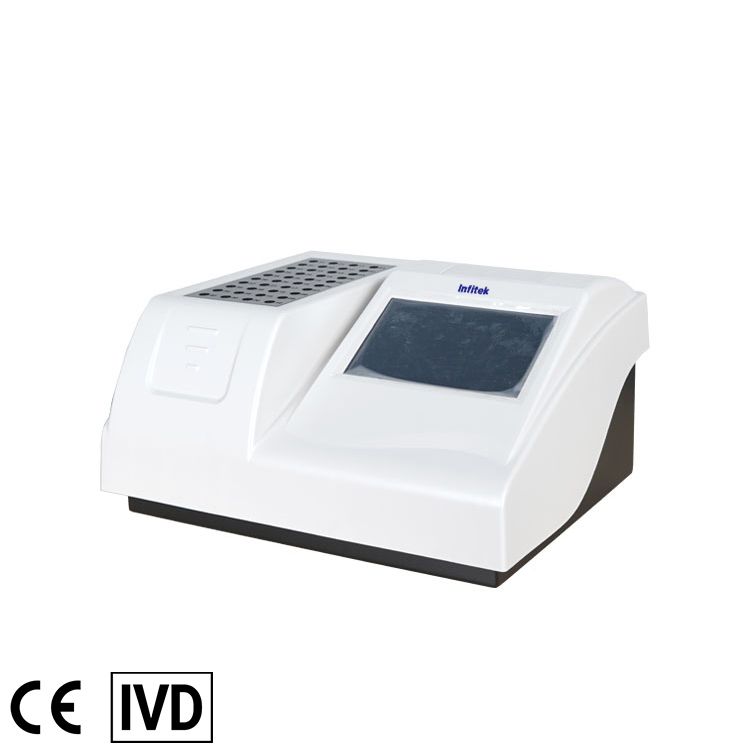

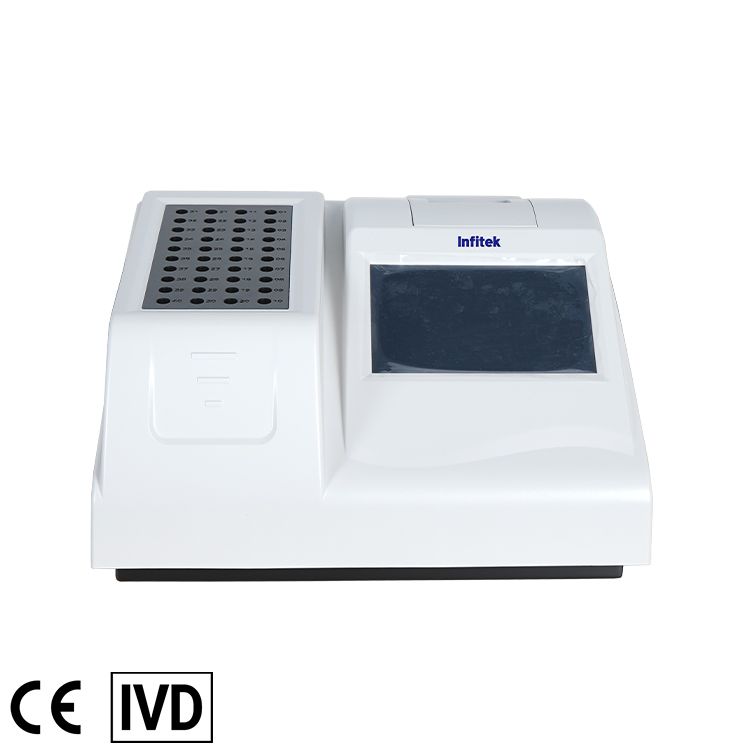

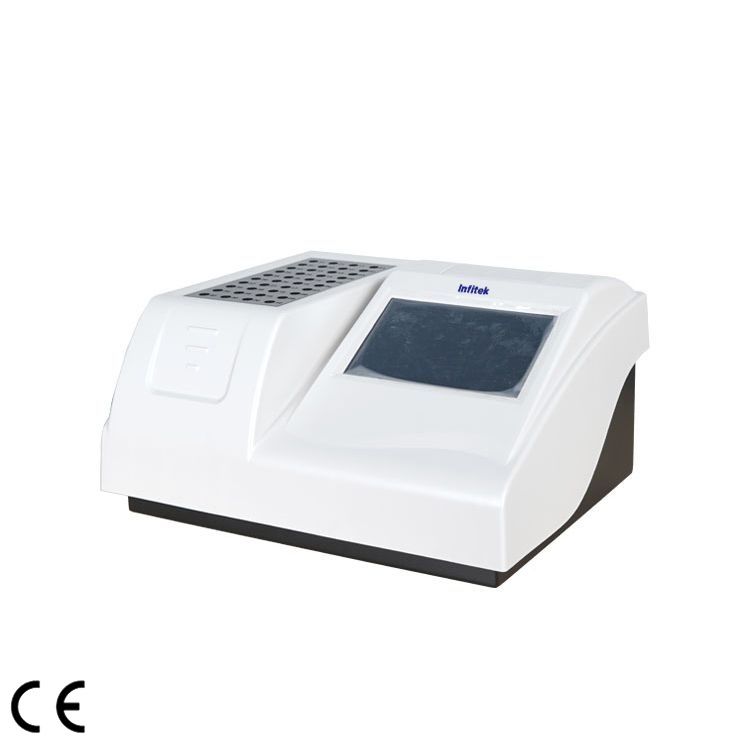

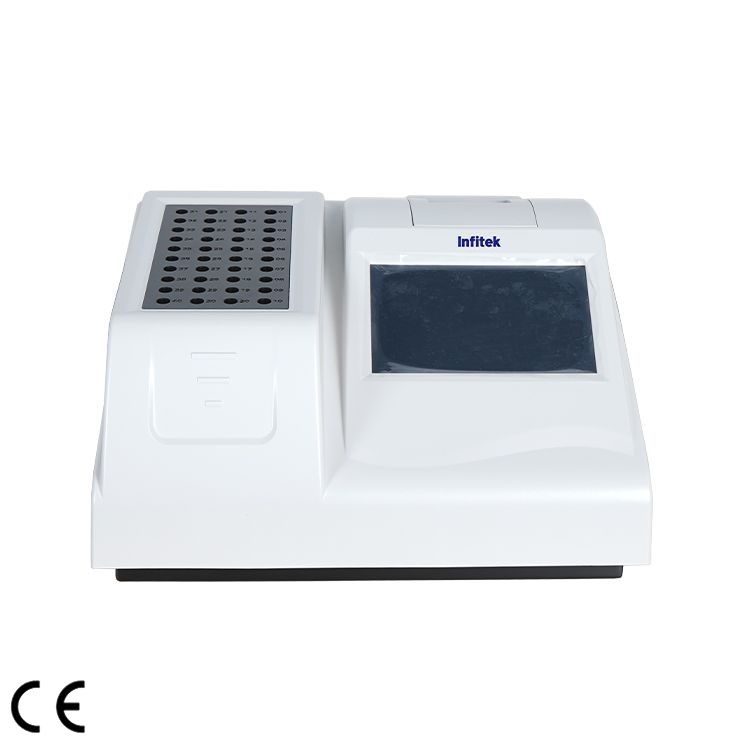

ESR analyzer, ESRA-40

  1. Loading capacity: 40 sample at same time
  2. Measuring time: 30/60 minutes selectable
  3. Throughput: Up to 80 samples per hour
  4. Storage: 4,000 results
  5. Analysis result: Westergren ESR value(mm/hr)

Share the product

Category:

Description

1.Large 7 inch touch screen
2.Two working methods: 30mins or 60mins
3.ESR curve display and print out
4.Barcode reader optional, Support LIS connection

Specifications

Principle
Field of application: Erythrocyte
sedimentation rate analysis Measuring principle: Infrared sensor
Analysis result: Westergren ESR value(mm/hr)
Test speed/Capacity
Throughput: Up to 80 samples per hour
Reading channels: 40
Loading capacity: 40 samples at same time
Loading pattern: Random
Storage: 4,000 results
Test range
Measuring time: 30 minutes or 60 minutes selectable
Sample interval: 3 minutes
Measurement range: (1-140) mm/h
Temperature compensation: Refer to 18C automatically(selectable) Reading resolution: ±0.1mm
Result resolution: 1mm/1h,1mm/2h
Blood level range: 50mm~64mm
Output/interface
Interface: RS-232 serial port
Print: Internal thermal recorder
Power/Working condition
Power supply: AC100-240V,50-60Hz,50W
Operation conditions: Temperature 5C~40℃ Humidity ≤80%
Dimension/Weight
Dimension: 365mm×300mm×180mm(LxWxH)
Net weight: 8Kg
Package 690mm*440mm*340mm, 12.2Kg
