- Pipe diameter: 38 mm
- Inlet height: 1190 mm
- Optional anti-scalding valve

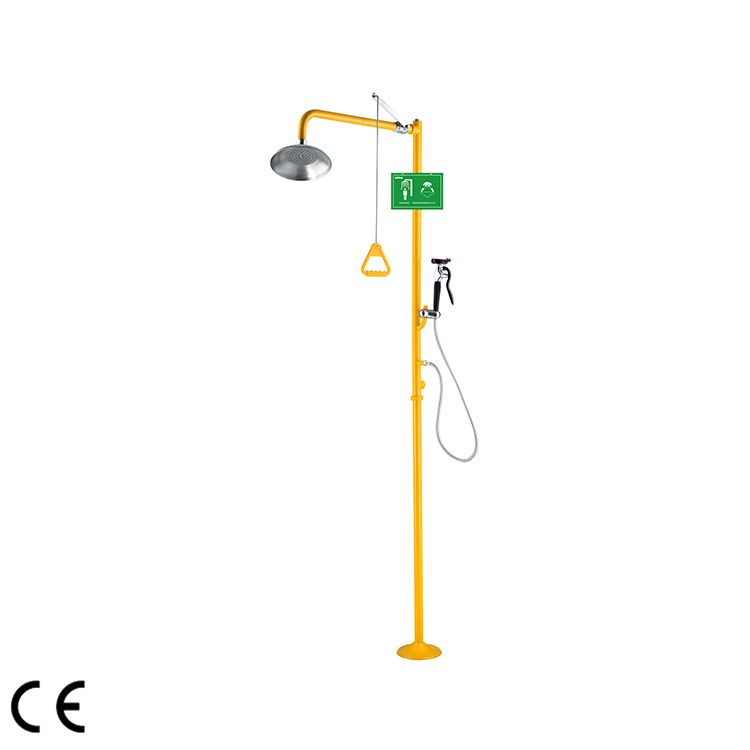

Eye/Face Wash and Shower Combination Station, EEWS-324
Description
- The inlet parts and outlet parts are customizable
- Shutoff valve and filter are proposed to be equipped on the water-supply end
- Optional anti-scalding valve: The anti-scalding function of the eyewash can be customized. This anti-scalding valve is the main accessory, and a small part of the structure of the eyewash needs to be changed.
Specifications
Material | Stainless Steel 304 |
Surface finishing | glossy epoxy coated |
Usage | single-nozzle hand-held shower is optional |
Shower & eye wash switch | SS304 ball valve |
Shower head | spinning-formed with curled rim, diameter 250 mm |
Pipe diameter | 38 mm |
Nominal pressure | 1.0 Mpa |
Working pressure | 0.2~0.4 Mpa |
Testing pressure | 1.5 Mpa |
Temperature requirement on working environment | 0°C~40°C |
Flow rate of body shower | ≥76 L/min |
Inlet thread | Rp 1”,female |
Inlet height ( from above the floor ) | 1190 mm |
Water pattern coverage | water pattern coverage at the height of 1524 mm above floor, the water pattern covers a circular area of at least 510 mm in diameter |
