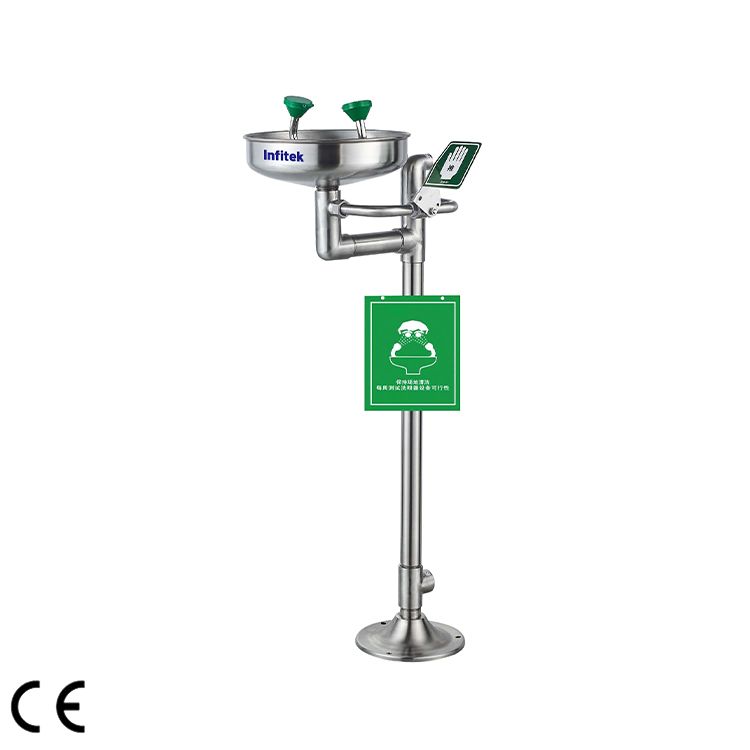

Vertical emergency eye wash, EEWS-314

  1. Pipe diameter: 42 mm
  2. Inlet height: 950 mm
  3. Outlet height: 100 mm

Share the product


  • The inlet part and outlet part are customizable
  • Shut off valve and filter are proposed to be equipped on the water-supply end


Materials  SS304
Surface finishing  Sanbed
Function  Eye and face washing
Switching ball valve  Two-piece ball valve
Pipe diameter  42mm
Nominal pressure  1.0Mpa
Working pressure  0.2~0.4Mpa
Test pressure  1.5Mpa
Working environment temperature  0°C~40°C
Eye wash/face wash water flow  ≥11.4 L/min
Flow of eye wash  ≥1.5 L/min
Eye wash bowl  300mm straight edge design, gather water, prevent splash
Dust cover  Integrated design of main body, not easy to lose
Inner size  Rc3/4” female
Outlet size  Rc1-1/4” female
Inlet height  950mm
Outlet height  100mm
