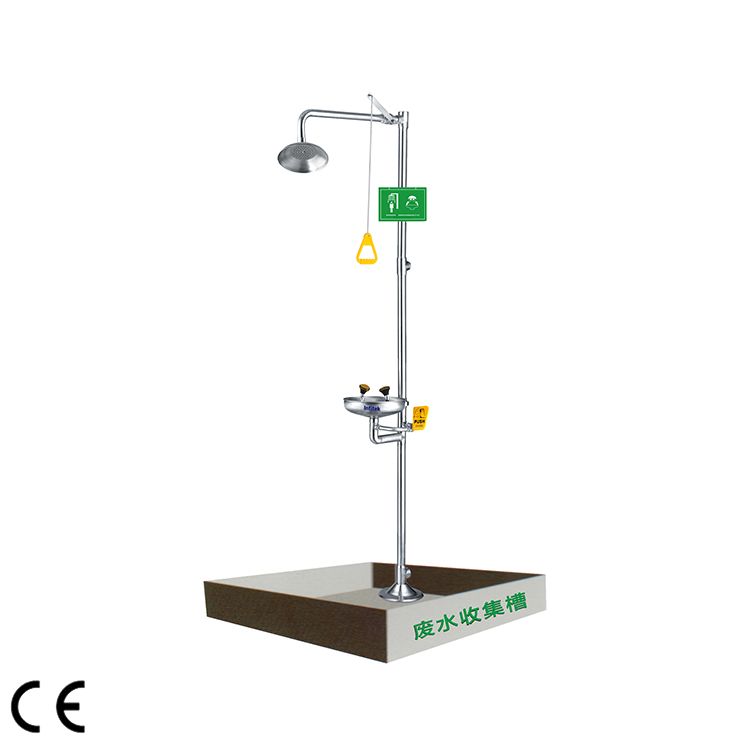

Eye face wash and shower combination station, EEWS-307

  1. Pipe diameter: 38mm
  2. Inlet height: 1186mm
  3. Outlet height: 86mm
  4. Optional anti-scalding valve

Share the product


  1. The inlet parts and outlet parts are customizable; shutoff valve and filter are proposed to be equipped on the water-supply end
  2. The shower, as well as the waste-water collecting sink are customizable
  3. Optional anti-scalding valve: The anti-scalding function of the eyewash can be customized. This anti-scalding valve is the main accessory, and a small part of the structure of the eyewash needs to be changed.
Optional anti-scalding valve 01

Working principle of anti-scalding valve

A thermal element is installed at the mixing outlet of the constant temperature water mixing valve, which uses the characteristics of the temperature sensing element to promote the movement of the valve core in the valve body and block or open the water inlets of cold and hot water. Turn on the hot water while blocking the cold water. When the temperature adjustment knob sets a certain temperature, no matter how the inlet temperature and pressure of cold and hot water change, the proportion of cold and hot water entering the outlet also changes, so that the outlet temperature remains constant. The temperature adjustment knob can be set arbitrarily within the specified temperature range of the product, and the water mixing valve will automatically maintain the outlet temperature.

Note: After setting the temperature, turn it on when the temperature is low and turn off when the temperature is high to avoid burns.


 Material  Stainless Steel 304 / PP
 Product features  equips with waste-water collecting sink
 Surface finishing  fine-polished, which makes the pipe surface performs better on corrosion resistance
 Usage  drenching body and rinsing faces / eyes can be operated separately or simultaneously
 Shower & eye wash switch  SS304 ball valve
 Shower head  spinning-formed with curled rim, diameter 250 mm
 Pipe diameter  38 mm
 Nominal pressure  1.0 Mpa
 Working pressure  0.2~0.4 Mpa
 Testing pressure  1.5 Mpa
 Temperature requirement on working environment  0°C~40°C
 Flow rate of body shower  ≥76 L/min
 Flow rate of eye/face wash  ≥11.4 L/min
 Flow rate of eye wash  ≥1.5 L/min
 Eyewash bowl features  300 mm in diameter, vertical bowl-wall design, allows better water collecting and anti-splashing
 Dust cover feature  integrated with the spray head ( not connected by chain )
 Spray head feature  patented design, each spray head equips with one water-flow control valve
 Inlet thread  Rp1″,female
 Outlet thread  Rp1″ ,female
 Inlet height ( from above the floor )  1186 mm
 Outlet height ( from above the floor ) 86mm
 Distance between spray heads  170 mm
 Size of waste-water collecting sink  1000 mm ( length ) X 1000 mm ( width ) X 150 mm ( depth )
