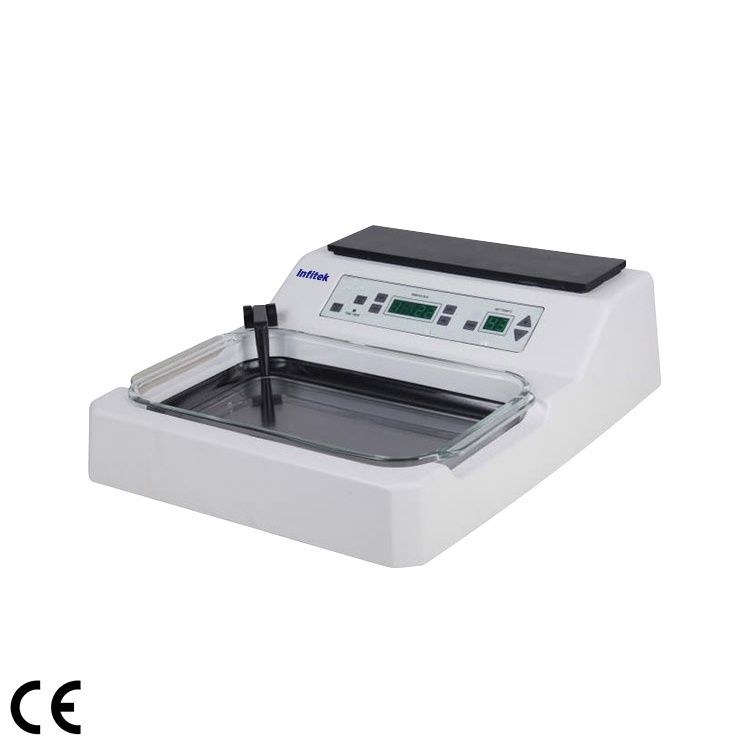

Flattening Table ( Water Bath / Slide Dryer ), TSBW-1

  1. Adopt imported single-chip microprocessor
  2. New type of heating element
  3. Unique temperature measurement design

Share the product


1.Full computer automatic control program, adopt imported single-chip microprocessor control, complete functions and simple setting.
2.Pure green digital display module, clear display, real-time display of all parameters of working status, and more intuitive data.
3.The temperature measurement adopts imported temperature measurement integrated block, which has high precision and reliable performance.
4.New heating mechanism using a new-type high-thermal-conductivity heating element provides even and quick heating.
5.Unique temperature measurement design directly collects the operating environment temperature, and the temperature measurement is more accurate.
6.Pre-interface (optional) with real-time acquisition of online temperature network.
7.With memory function:The set temperature is automatically retained after running.
8.Triple overheat protection device, safe and reliable.
9.Low-voltage DC lighting system, horizontal lighting design, no glare, clearer observation.
10.High borosilicate high temperature glass heating pot, high light transmission performance, split design, easy to change liquid and maintain.
11.The PID two-way independently control the temperature of the floating and drying slides, without affecting each other.
12.Special black material baking table, anti-corrosion and anti-wear.


Temperature Range  RT – 75℃
Temperature control range of drying slide RT-99℃
Temperature Control Precision  ±1℃
Optional Functions  Port for real-time online temperature recording
Dimensions of Water Bath Dish  350×220×45mm(W×D×H)
Dimensions of Drying Station  330mm×90mm
Working Voltage  AC220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power  500W
Dimensions  515×420×160mm (W×D×H)
Weight  9kg
