- Number of cylinders: 2
- Loop Number Range: 100 turns
- Rotating speed: 25 rpm
- Rotating accuracy: ±1 rpm

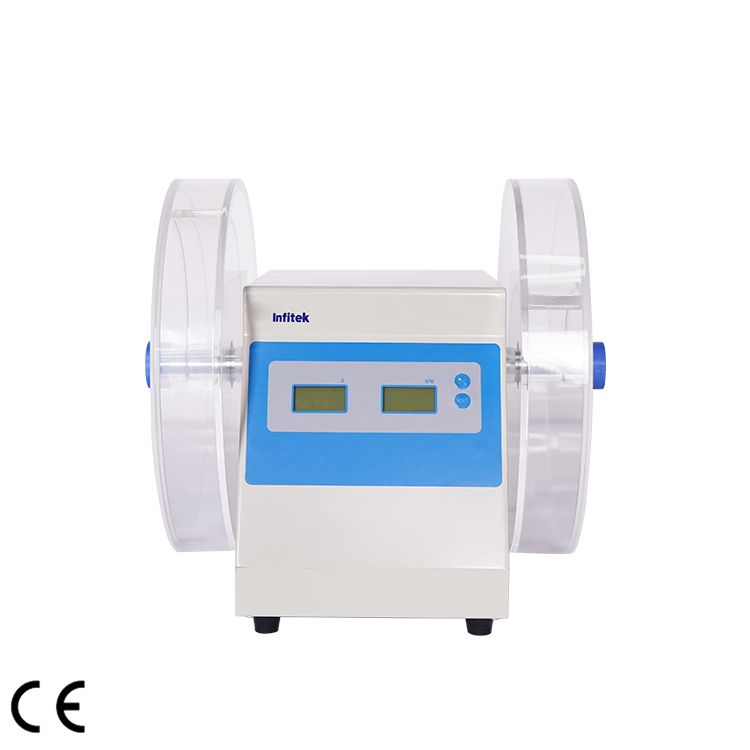

Tablet Friability Tester, FRAT-2
Description
DESCRIPTION
DESCRIPTION
Friability tester is used to test the physical properties of non-coated tablets in mechanical stability, abrasion resistance collision resistance and so on in the process of production, packaging and storage; it can also test the friable condition of tablet coating and capsules.
Main features:
① Single path and double cylinder, synchronous operation and automatic stop.
② LCD for the instrument, displaying the preset value and real-time value through time division.
③ The number of turns and rotating speed adopt the standard of Pharmacopeia, dispensing with modification, which enables the operation to be simple and convenient.
SPECIFICATIONS
SPECIFICATIONS
Number of cylinder | 2 |
Rotating speed | 25 rpm |
Rotating accuracy | ±1 rpm |
Counting mode | 100 turns, the countdown is adopted. |
Inner diameter of cylinder | 286mm |
Cylinder depth | 39mm |
Sliding height | 156mm |
Power supply | 220V50Hz |
Total power | 20W |
Overall Dimensions(W*D*H)(mm) | 370*300*340 |
Package Dimension (W*D*H)(mm) | 460*420*540 |
G.W.(kg) | 11.2 |
