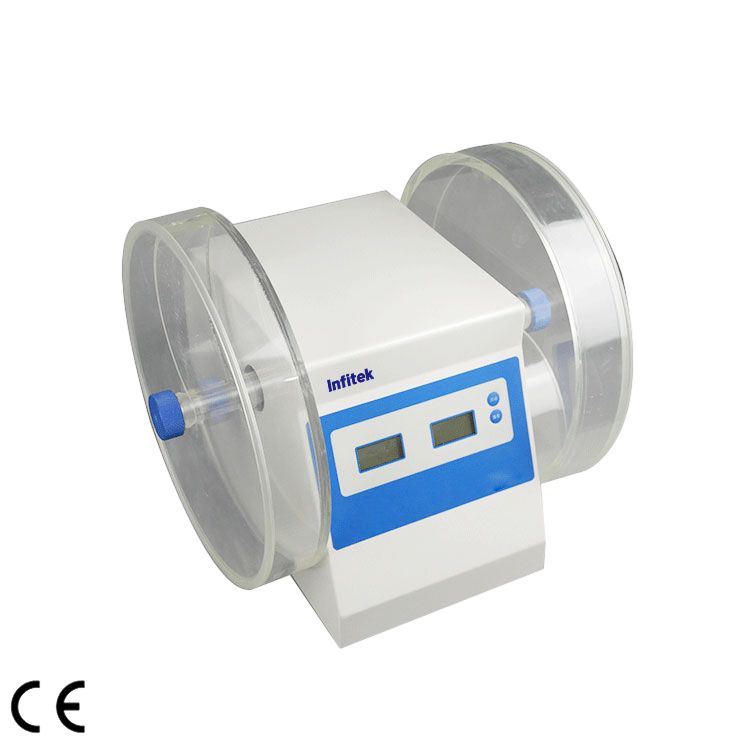

Tablet Friability Tester, FRAT-3

  • Number of Cylinders: 2
  • Loop Number Range: 5 turns~900 turns can be set arbitrarily
  • Rotating Speed: 25rpm
  • Rotating Accuracy: ±1 rpm

Share the product


Friability tester is used to test the physical properties of non-coated tablets in mechanical stability, abrasion resistance collision resistance and so on in the process of production, packaging and storage; it can also test the friable condition of tablet coating and capsules.

Main features:

①  Single path and double cylinder, synchronous operation and automatic stop.

②  LCD for the instrument, displaying the preset value and real-time value through time division.

③  The parameters of number of circles can be preset at will.


  Number of cylinder 2
  Rotating speed  25rpm
  Rotating accuracy  ±1 rpm
  Counting mode  5 turns~900 turns can be set arbitrarily; countdown is adopted.
  Inner diameter of cylinder  286mm
  Cylinder depth  39mm
  Sliding height  156mm
  Power supply  220V50Hz
  Total power  20W
  Overall dimensions (W*D*H)(mm)  370*300*340
Package Dimension (W*D*H)(mm) 420*460*550
G.W.(kg) 12
