- 150 Tests/Hour, Double Reagents
- 80 reagent positions, 40 sample positions
- 44 reaction cuvettes

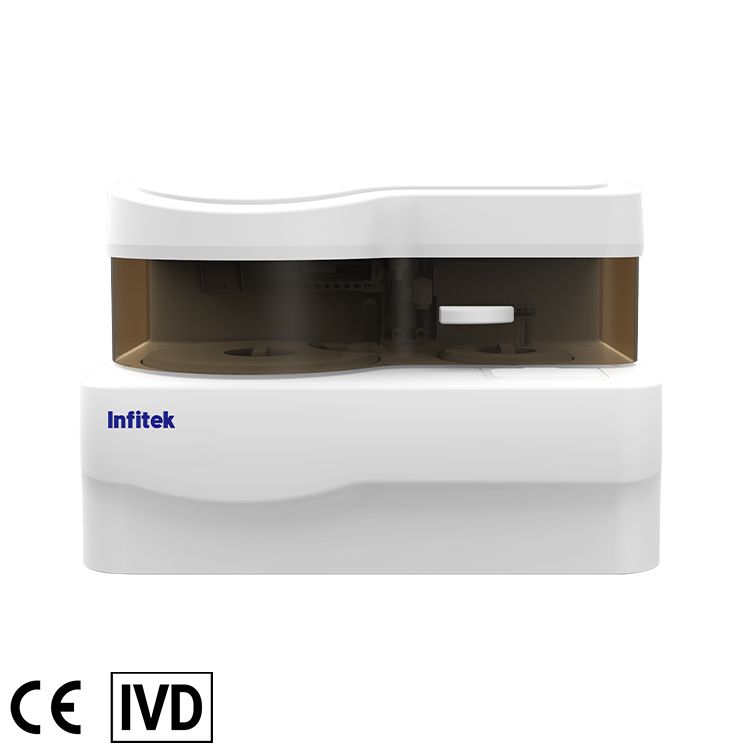

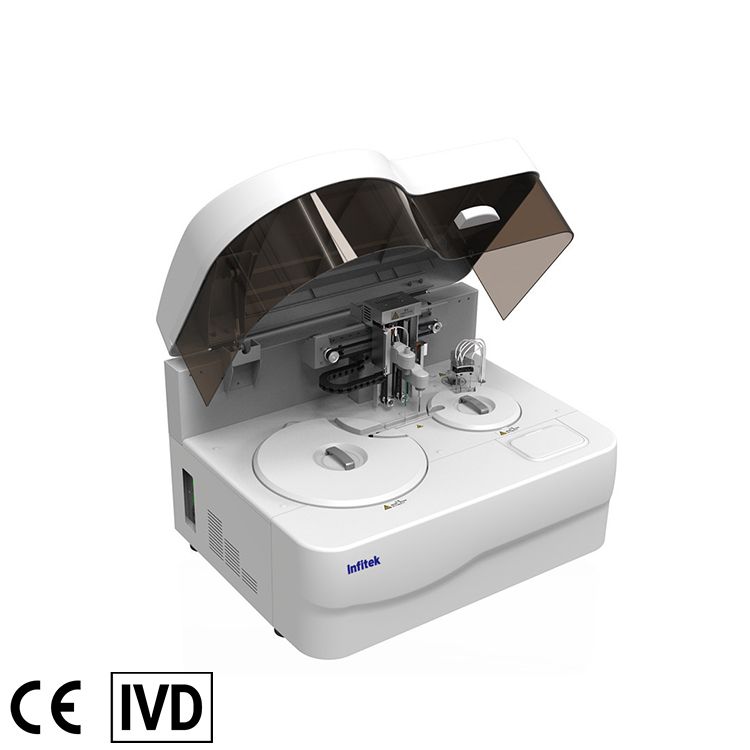

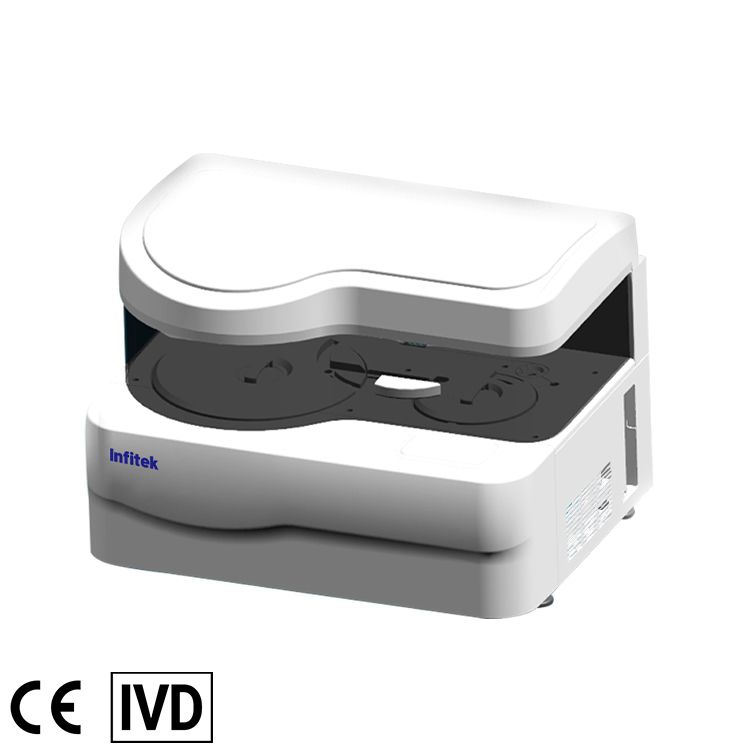

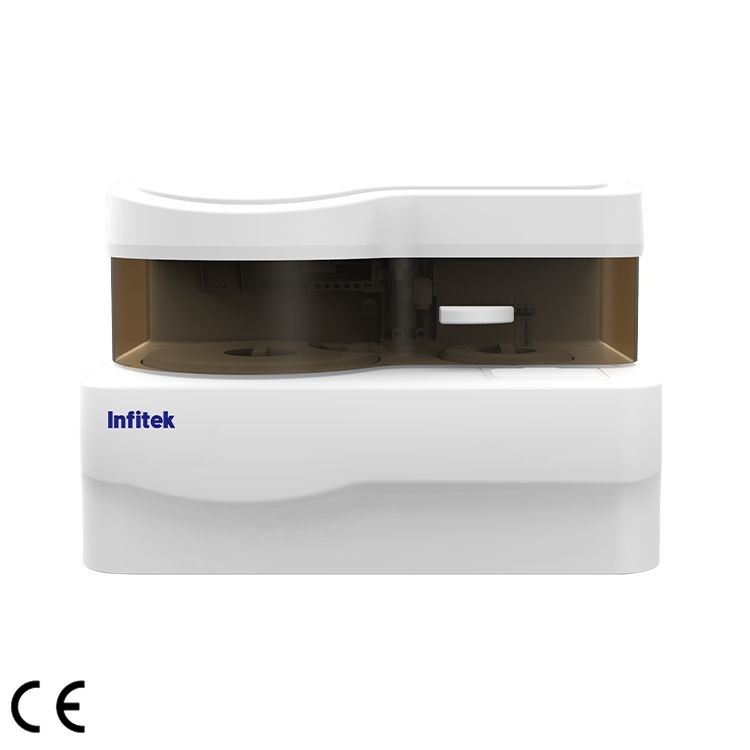

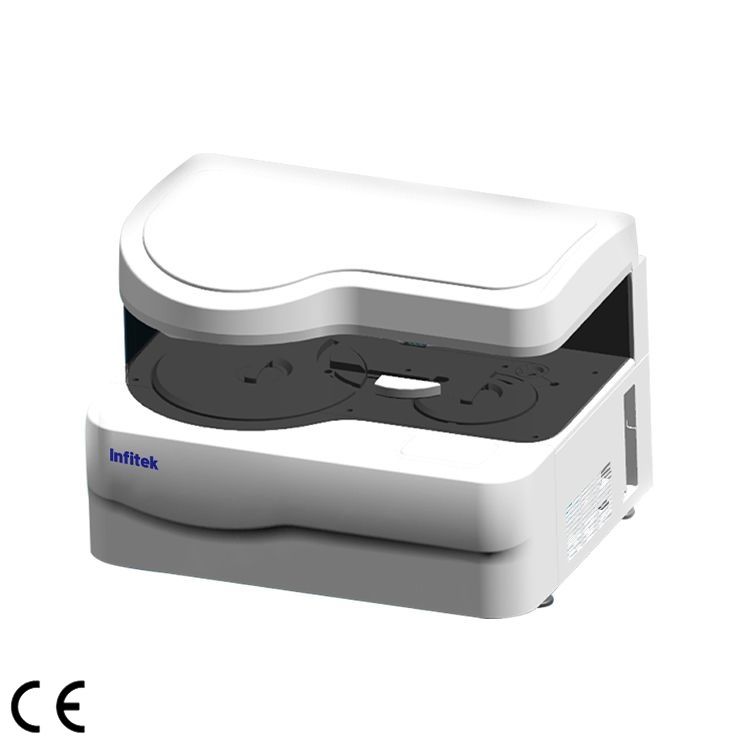

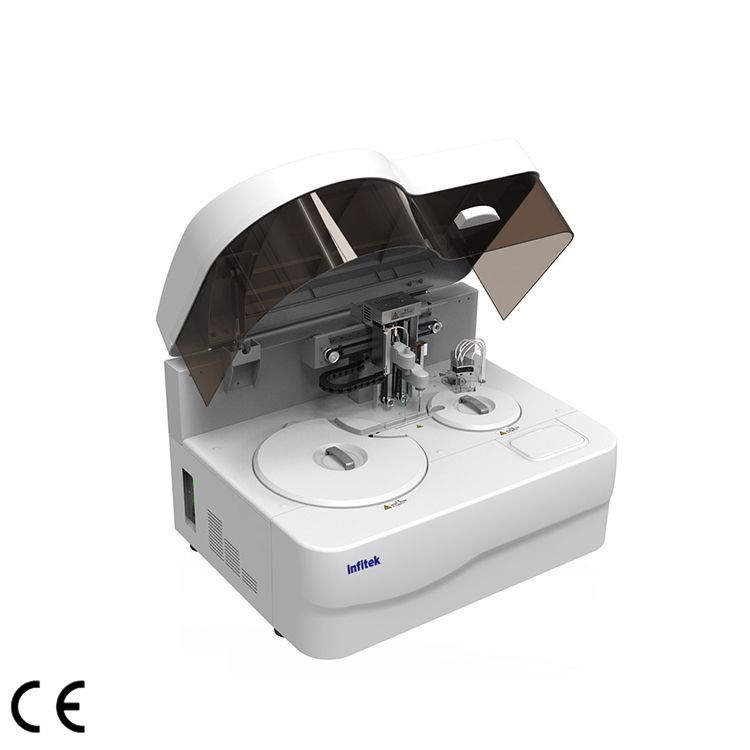

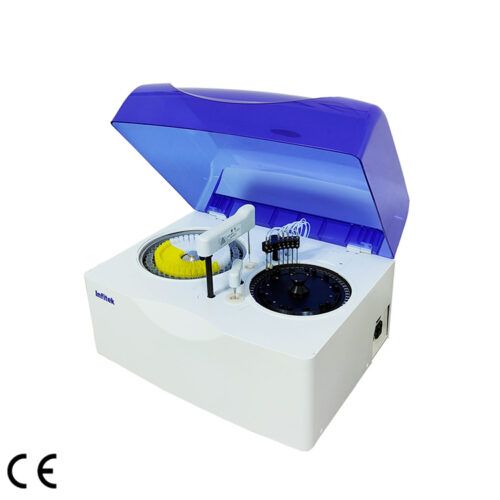

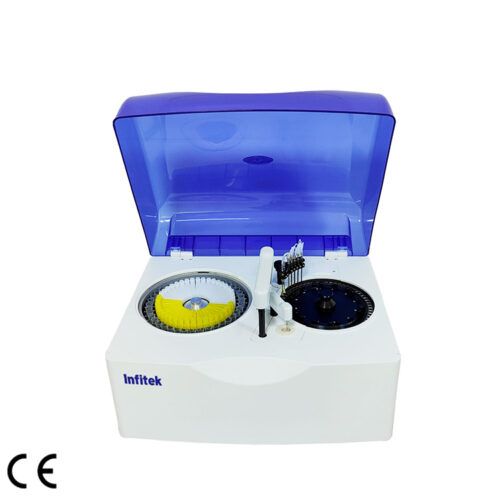

Fully-auto Biochemistry Analyzer, BA-A-160
Description
DESCRIPTION
DESCRIPTION
- Constant 150 test / hour with double reagent
- 80 reagent positions
- Automatic liquid level sensing, anti-collision protection.
- Integrated full closed optical system, multi wavelength simultaneous detection.
- New amorphous optical plastics reaction cups, perfect transmittance.
- Maintenance free semiconductor solid state refrigeration
- Friendly surface and easy to operation
Multifunctional precision sampling probe
- External & internal mirror polish, external & internal probe washing
- Dedicated sampling probe equipped with sensitive liquid sensor, timely feedback of reagent & sample residuals
- Collision protection, automatic probe depth adjusting
Excellent mixer design
- Teflon coating mixer. No water dropping(reducing carry-over)
- Excellent mixing effect with standard mixing procedure
High precision ceramic syringe
- Permanent ceramic piston
- Accurate dispensing as low as 0.1ul
Reagent tray & Sample tray
- 80 reagent positions，40 sample positions
- Non-stop cooling system with peltier pad inside, 24 hours 2℃-14℃
- Bar code reader(optional)
Reaction tray
• 44 reaction cuvettes
• Reaction volume as low as 150µI
• Stable & accurate temperature{37士0.1 °C) for reaction
Advanced operating system
- User friendly software interface simple, easy-to-operation
- Sample automatic dilution(decrease, increase, normal)
- Reaction result automatic checking and warning, calibration result automatic checking, warning alarm log
- Linear & nonlinear calibration, Multi-points calibration up to 8 points
- Quality control apply to westgard, L-T plot, cumulative
SPECIFICATIONS
SPECIFICATIONS
| General information | |
| Machine type | Random access, open reagent & locked reagent (optional) |
| Test speed | Constant 150 tests/hour (Mono reagent or double reagent) |
| Test principle | Colorimetric method, turbidimetry |
| Test method | 1 point end, 2 point end, Fixed-Time, Kinetics |
| Calibration type | Linear & nonlinear |
| Sample unit | |
| Sample tray | 40 sample positions |
| Sample tube | Micro cup & test tube & blood collection tube can be used.(φ12 -13 )mm * (25 -100 )mm |
| Sample volume | 2-30µL step by 0.1µL |
| Sample probe | Liquid surface detection, timely tracking for liquid volume.Collision avoidance |
| Sample barcode | Sample barcode reader (optional) |
| Reagent unit | |
| Reagent tray | 80 reagent positions (40 for Rl & 40 for R2), Non-stop cooling system with peltier pad inside, 24 hours 2°C-14°C, open system, could accept any reagent |
| Reagent volume | 20-300µL, step by lµL |
| Reagent needle | Liquid surface detection, timely tracking for liquid volume. Collision avoidance. |
| Regent barcode | Regent barcode reader (optional) |
| Reaction unit | |
| Reaction tray | 44 reaction cuvettes, new amorphous optical plastics reaction cups, perfect transmittance. |
| Reaction volume | 150µL-330µL |
| Reaction time | 10 minutes |
| Temperature | Peltier pad incubation system, reaction temperature (37°C ±0.1 °C) |
| Mixing system | |
| Mixer | paddle-type mixing, effective reducing of carry-over |
| Optical system | |
| Light source | Halogen lamp |
| Wavelength | 340nm; 405nm; 450nm; 505nm; 546nm; 578nm; 630nm; 700nm(4 more options) |
| Absorbance range | 0-4.0 Abs |
| Resolution | 0.0001 Abs |
| Operating system | |
| Operation system | Windows XP, Windows 7, Windows 8, Windows 10 |
| Data processing | Automatic calibration, test combination, effective time management of reagents, serum index, whole process detection, linear expansion of enzyme, blank deduction,dirty cuvette memory , cross infection prevention, patient information memory and association input, automatic report audit, data fuzzy query, report statistics and printing, reference range grading, alarm information classification, user operation privilege classification management |
| Report printing | 6 formats optional, support custom pattern |
| Interface | TCP/IP network interface |
| Working conditions | |
| Power supply | AC 110/220V ± 10%z 50/60 Hz, 650W |
| Water consumption | 6L/hour(maximum) |
| Dimension | 750mm * 475mm * 535mm(L*W*H) |
| Weight | 80kg |
| Language | All languages |
