DESCRIPTION

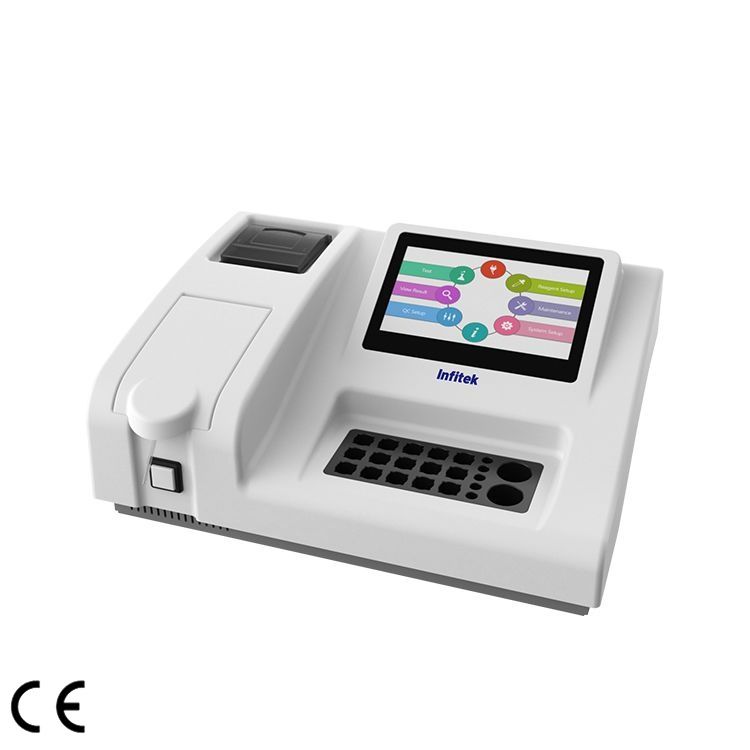

Semi-Auto Biochemistry Analyzer is suitable for the analysis of serum, plasma, urine and other body fluid samples, and can complete the test of biochemical, special protein, drug monitoring and blood coagulation items

Flow cell & cuvette testing mode
Huge storage of more than 300 programs & 200000 sample results
Blood coagulation function: The instrument can perform blood coagulation routine tests: PT，APTT, TT and can measure blood coagulation time
Different vacancies on the multifunctional incubator can be used for different sizes of test tubes, cuvettes, etc（22 incubation positions in total）.

7″ inch true color touch screen(800*480 pixels)

5 USB ports & 1 ethernet port
Mouse, keyboard and printer can be connected freely, easy transmission of LIS data.

Multifunctional incubator & blood coagulation function

Multifunctional incubator specially designed for chemistry and coagulation tests, different holes can be used to put sampe tubes, chemistry cuvettes, coagulation cuvettes, accurate temperature control, more efficient sample incubation

Windows embedded compact 7 smart operation system

More convenient to edit test items freely, clear presentation of real-time curve, calibration, quality control and sample results.

SPECIFICATIONS

Model	BA-SA-100C
Test method	1 point end, 2 point end(Sample blank), Kinetics, Fixed-time, Coagulation.
Optics	7 standard filters: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm. 2 more for optional.
Lamp house	Long-life tungsten halogen lamp(6V/10W), auto-sleep function.
Display	7.0″ TFT LCD with touch screen, 800*480 pixels.
Printer	Build-in thermal printer, 57mm printer paper.
Temperature	25,30, 37°C and Room temperature. By means of Peltier elements.
Flow cell capacity & optical path	32µL, 10mm
Resolution	0.0001 Abs.
Photometric range	0.0000-4.0000 Abs.
CPU	ARM Cortex-A8, 720M Hz.
Memory	DDR2 SDRAM: 1G bit;
Flash	256 MB; Over 300 programs, 200000 results can be stored.
Interface	4 USB Hosts, 1 USB Slave, 1 Ethernet port. USB port(host) for keyboard, mouse, printer, U disk, bar code reader etc. USB port(slave) for PC connection(support PC software control function).
Operational environment	Temperature: 10°C~30°C, Humidity: 30%~80%
Power requirement	Wide power supply AC 100-240V, 50/60 Hz
Dimension	400300160mm(LWH)
Language	English、Portuguese、Spanish、Chinese
