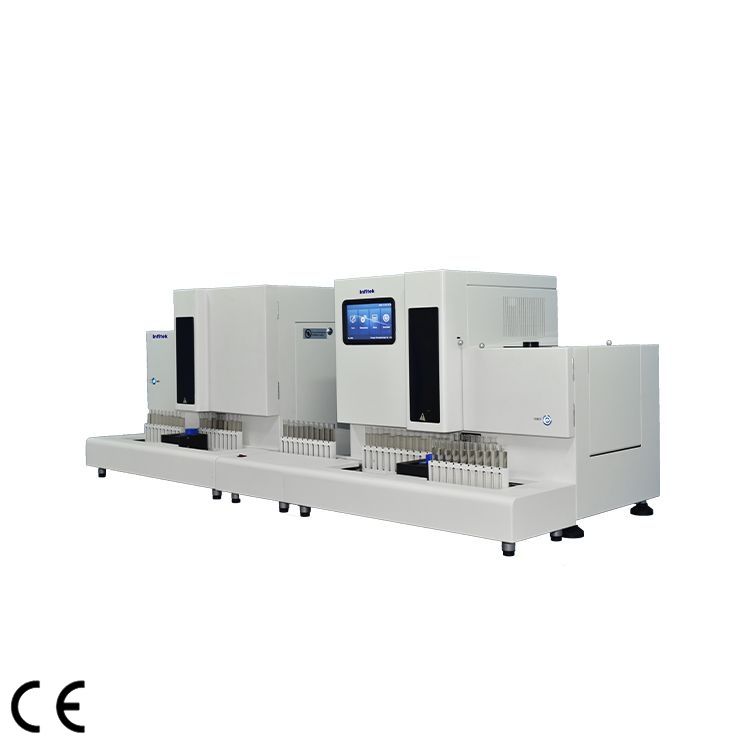

Fully Automatic Urine Analysis Workstation, UA-S3-120&UA-A3-240

  • Test Speed:UA-S3-120:120 samples/hour;UA-A3-240:240 strips/hour
  • Automatic urine dry chemical detection and microscopic examination
  • Automatic focus calibration without focus fluid

Share the product



UA-S3-20&UA-A3-240 Fully Automatic Urine Analysis Workstation combines the urine chemistry analysis and the urine formed element detection together in one workstation. It makes the urine test efficient, fast and contamination-free.


  • Automatic urine dry chemical detection and microscopic examination will be finished in one time, which is efficient, fast and pollution-free.
  • Comprehensive report of dry chemical analysis results, urine formed elements test results, scientific indicators, illustrated, provides full diagnostics means for clinical;
  • Automatic focus calibration without focus fluid, which reduces maintenance costs.

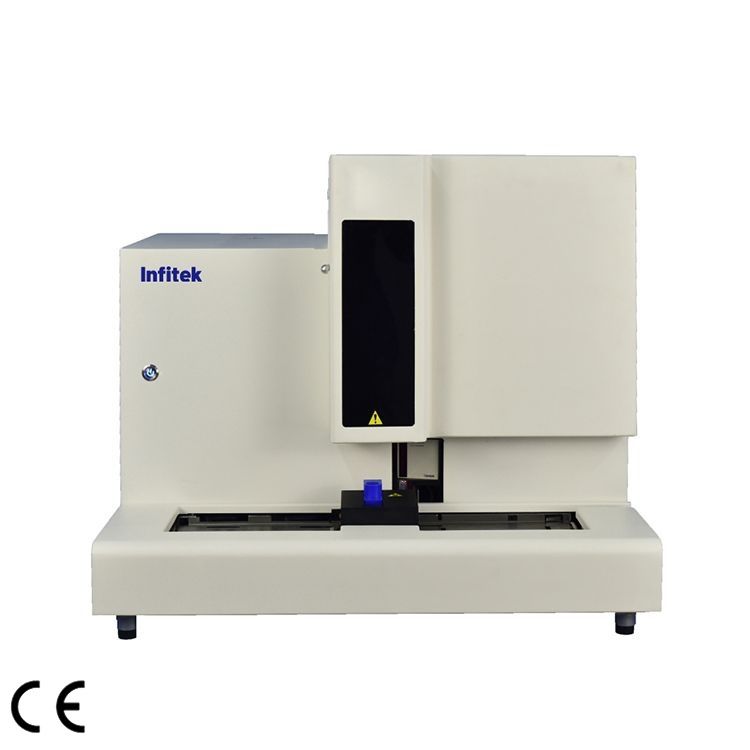

Model UA-S3-120
Test Parameters Normal RBC, Standing RBC, Dysmorpuic RBC, Normal WBC, WBCC, Pus Cell, Hyaline Cast, Granular Cast,WBC Cast ,Squamous Epithelial Cell,Normal Epithelial Cell,Sperm, Calcium Crystal, Oxalate Crystal Bacteria,Yeast, Amorphous Urates, Mucus etc.
Test Principle Flow cell digital imaging technology,medical image fusion technology,artificial intelligence identification technique
Channel Four channels fixed flow counting cell
Sample Volume Minimum volume:3mL,Aspiration volume:1mL
Test Speed 120 samples/hour
Aspiration Volume 1ml
Test Sensitivity 5 cells/μL
Accuracy >95%
Repeatability CV<10%
Cross Contamination Rate <0.05%
Data Storage 200,000
Report Mode International general quantitative unit; unit /μL&HPF, complete and illustrated report, with urine chemistry test results and urine sediment test results
Environment Temperature:15°C~35°C

Optimum temperature: 20°C~25°C

Relative humidity:≤75%

Electricity AC220V±10% , 50Hz
Dimensions(L*W*H) 660mm*440mm*570mm
N.W./G.W. 37kg/95kg
Shipping Dimension(L*W*H) 1150*760*770mm


Model UA-A3-240
Test Speed 240 strips/hour(15 seconds/strip)
On Board Sample Capacity 5 racks of 10 tubes (50 samples)
Sample Volume Minimum volume: 3mL;Aspiration volume:1mL
Test Principle Photoelectric colorimetric method
Test Parameters Urobilinogen(URO), Bilirubin(BIL), Ketone (KET), Blood (BLD), Protein (PRO), Nitrite (NIT), Leukocytes(LEU), Glucose(GLU), Specific Gravity(SG), PH(pH), Ascorbic Acid(VC), Microalbumin(MAL)
Data Storage Capacity 20,000
External Output RS-232
Electricity AC 220V, 50Hz
Power 300VA
Fuse 250V 2A
Environment Temperature:15° C ~ 35° C

Optimum temperature: 20° C~25° C

Relative humidity:≤75%

Printer Thermal printer
Dimensions(L*W*H) 660*625*581mm
Net Weight 65kg
