Gloss Meter, Triangle, GLOM-268S

  1. Measuring Angle: 20°, 60°, 85°
  2. Measuring Range: 20°: 0~1000GU 60°: 0~1000GU 85°: 0~160GU
  3. Display 5 sets of measurement data
  4. Connect to PC
  5. Comply with international standards
  6. Stable performance

Share the product



1. 20, 60 and 85° in one: from high to low gloss – have the specified angle on hand
2. Concise appearance, feel good
3. Display 5 sets of measurement data, good for comparison
4. Built-in lithium ion rechargeable battery
5. Basic model measurement can meet basic glossiness testing requirements
6. Connect to PC, more extend functions
7. One button for all angles measurement at the same location
8. Comply with international standards
9. Stable performance, easy to read data.

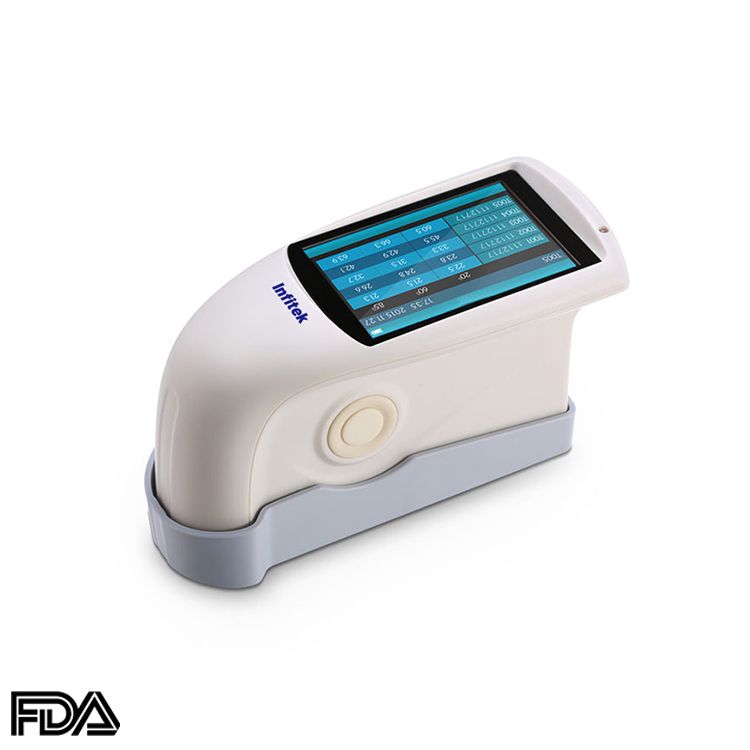

GLOM-268S Tri-angle Gloss Meter
Model: GLOM-268S
Measuring Angle 20°/60°/85°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm) 20°: 10×10    60°: 9×15    85°: 5×36
Measuring Range 20°: 0~1000GU   60°: 0~1000GU   85°: 0~160GU
Division Value 0.1GU
Measurement Range 0-10GU            10-100GU      100-1000GU
Repeatability ± 0.1GU           ± 0.2GU           ± 0.2%GU
Reproducibility ± 0.2GU           ± 0.5GU           ± 0.5%GU
Measurement Standard Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°)  under CIE C light source
Errors ±1.5 , ± 1.5%
Measuring Time 0.1s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3.7V,3200mAh Li-ion Battery ,>10000 times(within 8 hours)
Display TFT 3.5 inch
Interface USB/RS-232
Storage Basic mode: 1000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature  0~40℃(32~104°F)
Storage Temperature  -20~50℃(-4~122°F)
Humidity <85% relative humidity,  no condensation
Standard Accessories Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.
