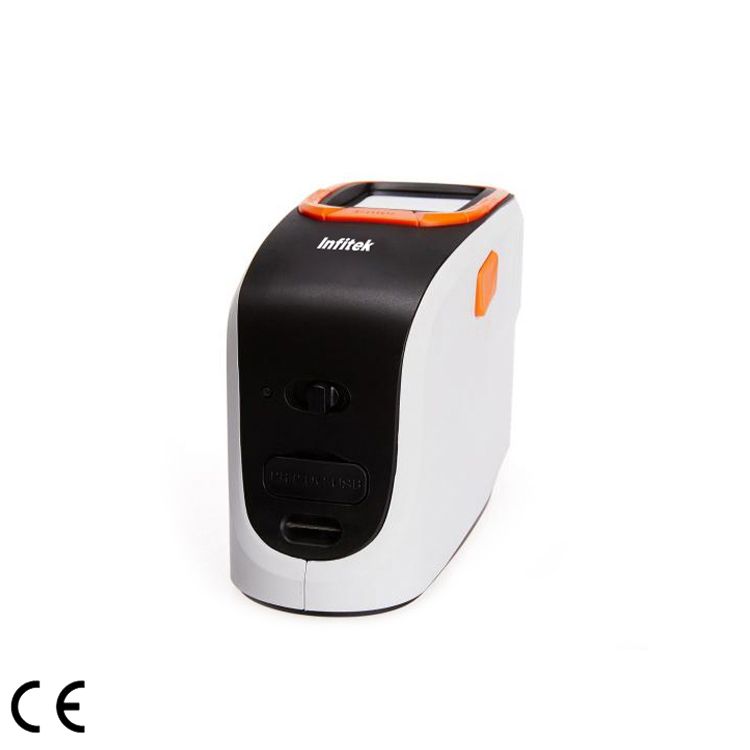

Grating Portable Spectrophotometer, SP-CLR650A,B

  • Observer Angles:2°/10°
  • Integrating Sphere Size:φ40mm
  • Wavelength Interval:10nm
  • Wavelength Range:360-740nm
  • Measuring Aperture:Type A:10mm;Type B:4mm, 6mm

Share the product


It can be used for color matching in various industries, and is widely used in the quality control of painting industry, textile industry, plastic industry, food industry, building materials industry and other industries.


1. Adopt D/8 optical structure and SCI/SCE mode.

Adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded).

2.The camera can clearly observe the measured area.

The built-in camera is used for view taking and positioning. Through real-time view taking, it can accurately determine whether the measured part of the object is the target center, which improves the measurement efficiency and accuracy.

3. Adopts Every TimeCalibration Technology (ETC)

The innovative ETC (Every Time Calibration) and standard whiteboard included in the optical system allow reliable accuracy and repeatability in every measurement.

4.Free Color QC software

Our spectrophotometer comes with the color QC software, which is applicable in various industries’ quality control and management of color data.

It converts colors into numerical data, compares color differences, and generates measurement reports. Moreover, it provides measurement data in different color spaces and customizes color management for each customer.

5.Automatic gloss compensation technology

The automatic gloss compensation technology guarantees the accuracy of color measurement data for surfaces of different gloss.

6.Innovative light splitting SCS optical engine

Adopt innovative single-grating-double-beam light splitting system: SCS optical engine, creates the best measurement repeatability for portable spectrophotometers in the industry, ensuring accurate measurement of material surface color.

7.Complete light sources

Compared with similar products, our spectrophotometer provides the most complete 28 kinds of standard light sources for lighting conditions and 40 kinds of measured color value indicators;

Measurement methods can also be customized according to your requirements to meet all your color measurement needs.


Model SP-CLR650A SP-CLR650B
Optical Geometry d/8(Diffused lighting, 8 degrees observe angle)、SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement。(conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standards)
Light Source Pulse xenon lamp,with UV
Integrating Sphere Size φ40mm, Avian diffused reflection surface coating
Sensor Dual optical path sensor array
Measuring Aperture 10mm 4mm, 6mm
Wavelength Range 360-740nm
Wavelength Interval 10nm
Half Spectral Width 5nm
Measured Reflectance Range 0-200%
Reflectance Resolution 0.01%
Observer Angle 2°/10°
Illuminant A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Display SPD distribution/data,sample’s color values,color difference values/graph,pass/fail results,color error tendency,color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement report
Measuring Time Interval 1s
Measuring Time 2s
Color Space CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance

Hunterlab,Munsell MI,CMYK,RGB,HSB

Color Difference Formula ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00

ΔEab(Hunter),555 shade sort

Other Colorimetric Index WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz)

Metamerism index Milm, Stick color fastness, Color fastness

ISO luminance, 8 gloss, A density, T density, M density, E density,Covering power, force,Opacity, color strength

Repeatability Light splitting reflectivity:standard deviation within 0.08%
Color values:ΔE*ab<=0.02,


Battery Rechargeable, 10000 continuous tests, 7.4V/6000mAh
Interface USB
Data Storage 20000 test results
Illuminant Life Span 1.5 million measurements in 5 years
Inter-Instrument Error ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Screen True color screen that includes all colors
Operating Environment 0~45℃, relative humidity 80% or below( at 35°C ),

no condensation

Storage Environment -25℃ ~55℃,relative humidity 80% or below(at 35°C ),

no condensation

Standard Accessory DC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, spire lamella, portable bag, electronic color charts, measurement and test report
Optional Accessory Powder molding device, micro printer
External Dimension(L*W*H) 181*73*112mm
Net Weight About 0.55kg (excluding battery’s weight)
