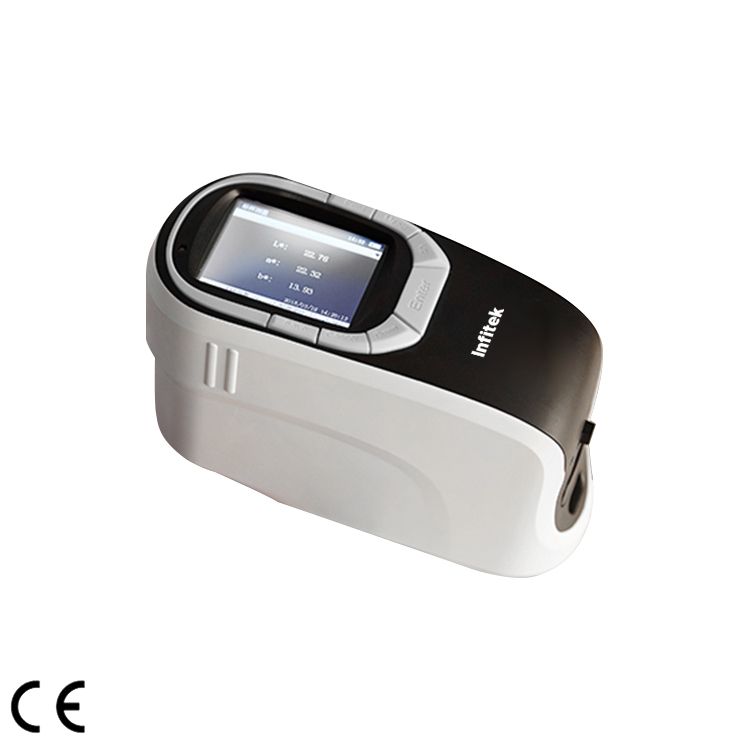

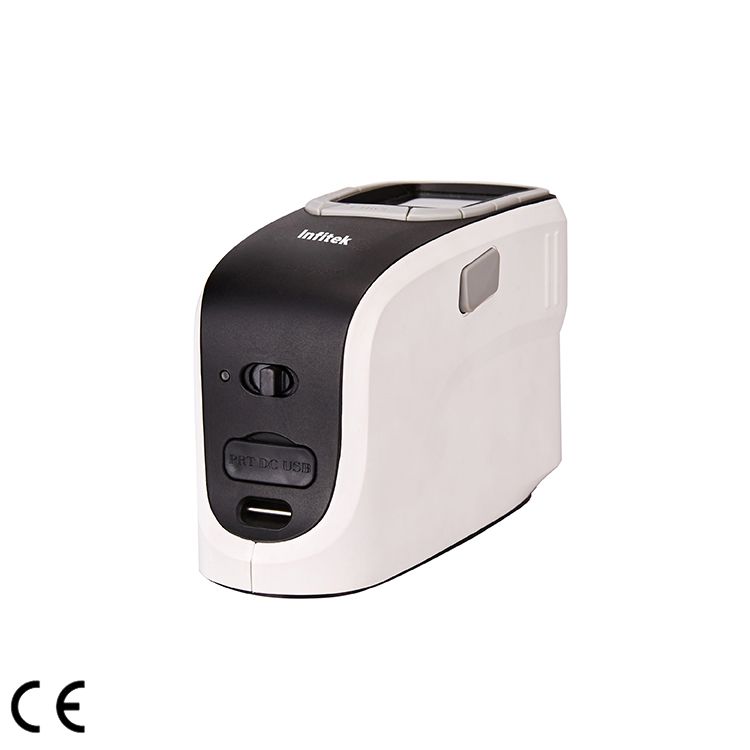

Grating Portable Spectrophotometer, SP-CLR600G

  • Observer Angle:2°/10°
  • Wavelength Interval:10nm
  • Wavelength Range:400-700nm
  • Measuring Aperture: φ11mm

Share the product


It is a portable 45/0 geometry color measuring instrument and can also measure 60° gloss. 45/0 geometry is the most consistent with the visual perceptual color value, which can eliminate the specular light on the surface of the texture, and the built-in gloss sensor can accurately measure the gloss of the surface.


1.Adopts 45/0 geometry (45 ring-shaped illumination, 0° viewing)

The innovative ring-shaped illumination system eliminates the direction dependence, regardless of changing the sample position; The tilt sample or the rotating instrument can achieve the high accuracy and the repeatability, will reduce the influence which the grain brings to the lowest.

The measurement on the surface of abrasive, textured and structured materials has brought great advantages.

  1. Compatible with 60° gloss measurement

The instrument is equipped with a high-precision gloss measurement sensor, which can measure gloss and color at the same time.

3.Color QC software

Our spectrophotometer comes with free PC color QC software, which is applicable in various industries for management of color value.

It is used for store test result, generate test report and print test report after connect with printer.


Model SP-CLR600G
Function Color, 60° Luster
Optical Geometry 45/0(45 ring-shaped illumination,0 observe degree)
Measuring Aperture φ11mm
Light Source LED
Wavelength Range 400-700nm
Wavelength Interval 10nm
Sensor High sensitivity silicon photodiode
Repeatability Light splitting reflectivity:standard deviation within 0.08%
Color values;ΔE*ab≤0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),Max.:0.05
Inter-instrument error ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Observer Angle 2°/ 10°
Illuminant A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30.DLF,NBF,TL83,TL84.U35
Color Space CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance

Hunterlab,Munsell MI,CMYK,RGB,HSB

Other Colorimetric Index WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz)

Metamerism index Milm, Stick color fastness, Color fastness

ISO luminance, 8 gloss, A density, T density, M density, E density

Color Difference ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555 shade sort
Measuring Angle 60°
Measuring Area 5*10 mm
Measuring Range 0 – 1000 GU
Reproducibility 1.0 GU(0-100GU)


Illuminant Life Span 3 million measurements in 10 years
Data Storage 20000 test results
Interface USB
Screen 2.8-inch color screen
Battery Rechargeable, 10000 continuous tests, 7.4V/6000mAh
Operating Environment 0~45℃, relative humidity 80% or below( at 35°C ),no condensation
Standard Accessory AC adapter, lithium battery, manual, color management software, driver software, manual electronic version, color Management tutorial, data cable, black and white correction tube, portable bag
Gloss calibration tile
Optional Accessory Measurement area locator
External Dimension


Net Weight About 0.8kg(excluding battery’s weight)
