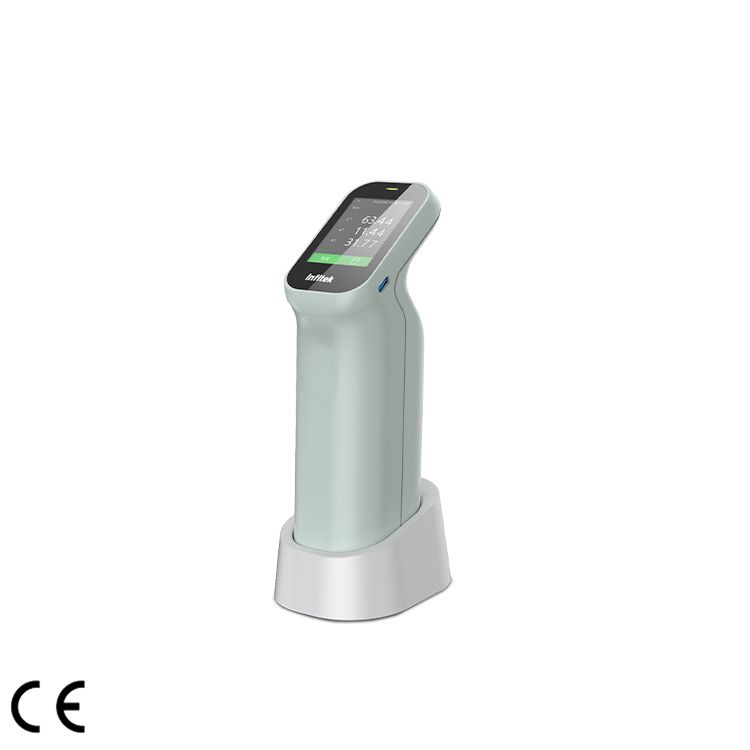

Colorimeter, SP-CLR410C, 411C, 412C

  • Autocalibration
  • Display Accuracy:0.01
  • Different apertures: Two Apertures / Small Aperture / Big Aperture
  • Test Aperture/Illuminated Area:Φ8mm/Φ11mm;Φ4mm/Φ6mm;Φ8mm/Φ11mm,Φ4mm/Φ6mm

Share the product



Colorimeter, SP-CLR410C, 411C, 412C has auto calibration to make it simple in operation and contains 30 kinds of parameters and 26 kinds of illuminants. Two apertures version are with switchable apertures to measure samples with different sizes.

Features of Colorimeter

  • With Auto calibration
  • Different apertures: Two Apertures / Small Aperture / Big Aperture
  • Supports both SCI and SCE test which is more consistent with result of visual method.
  • Many different kinds of test parameters:Opacity, whiteness index, yellowness index and other 30 kinds of test parameters
  • Provide 26 kinds of illuminants for choice
  • Good repeatability for stable measurement (Delta E*ab 0.08)


Model SP-CLR410C SP-CLR411C SP-CLR412C
Type Economical(Big Aperture) Economical(Small Aperture) Economical(Two Apertures)
Color Green
Geometry D/8 (Diffused illumination, 8°viewing)

SCI (specular component included),SCE (specular component excluded)

Repeatability Chromaticity Value: Standard deviation ΔE*ab≤ 0.04

Average: dE*ab≤ 0.05

Max.: dE*ab≤ 0.08(When a white tile is measured 30 times at 5 seconds interval)

Inter-instrument Agreement ΔE*ab≤0.4
Display Accuracy 0.01
Test Aperture/ Illuminated Area Φ8mm/Φ11mm Φ4mm/Φ6mm Φ8mm/Φ11mm,Φ4mm/Φ6mm
Color Space and Indices Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB, Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), Whiteness Index (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), Yellowness Index(ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness Index(My,dM), Staining Fastness, Color Fastness, Tint(ASTM E313-00), Color Density CMYK(A,T,E,M), Metamerism Index Milm, Munsell, Opacity, Color Strength
Illuminants A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Support Color Matching Software No
Light Source LED
Camera No
Calibration Auto
Software Windows
Accuracy Guarantee Pass National Metrology Level I
Observer 2°,10°
Sphere Size 40mm
Spectroscopic Method Integrated optics
Sensor CMOS Sensor
Wavelength interval 10nm
Wavelength Range 400-700nm
Reflectance Range 0-200%
Reflectance Resolution 0.01%
Reflectance Resolution 0.01%
Measurement Time About 1 second
Display IPS full color screen ,2.4 inches
Battery Rechargeable, 8,000 times continuous tests, 3.7V/3000mAh
Light Source Lifetime 10 years, 1 million tests
Language English
Storage 100 pieces of data
Dimensions (L*W*H) 180*60*51mm
Weight 280g
