- Max. speed/RCF: 12000rpm/13680×g
- Rotor capacity: capillary tubes×24

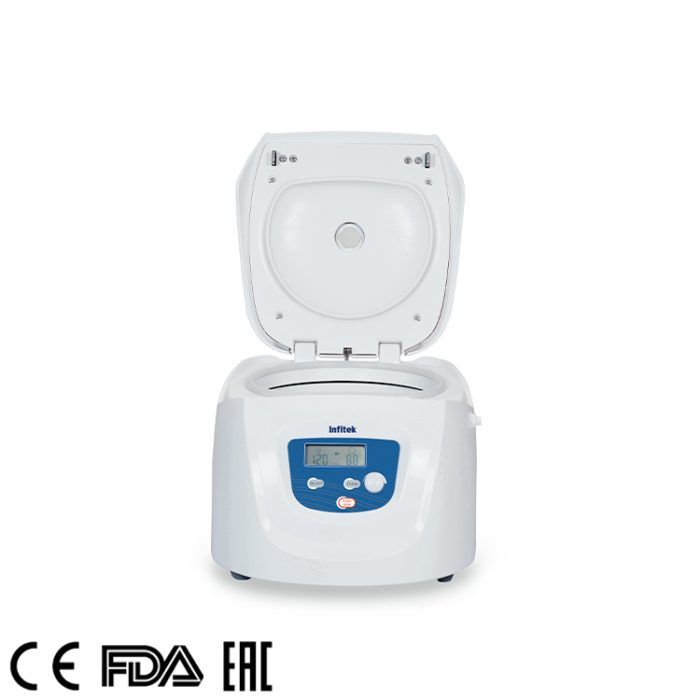

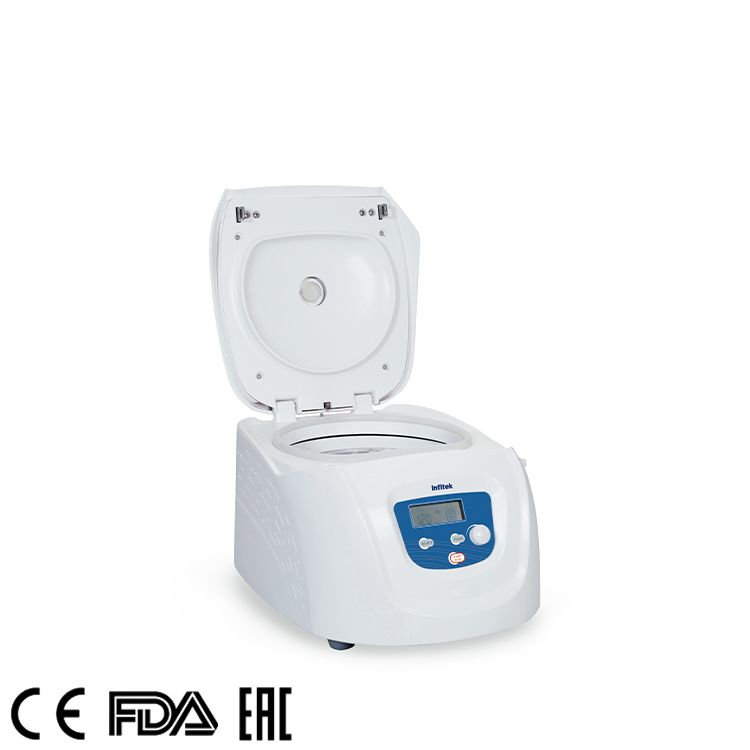

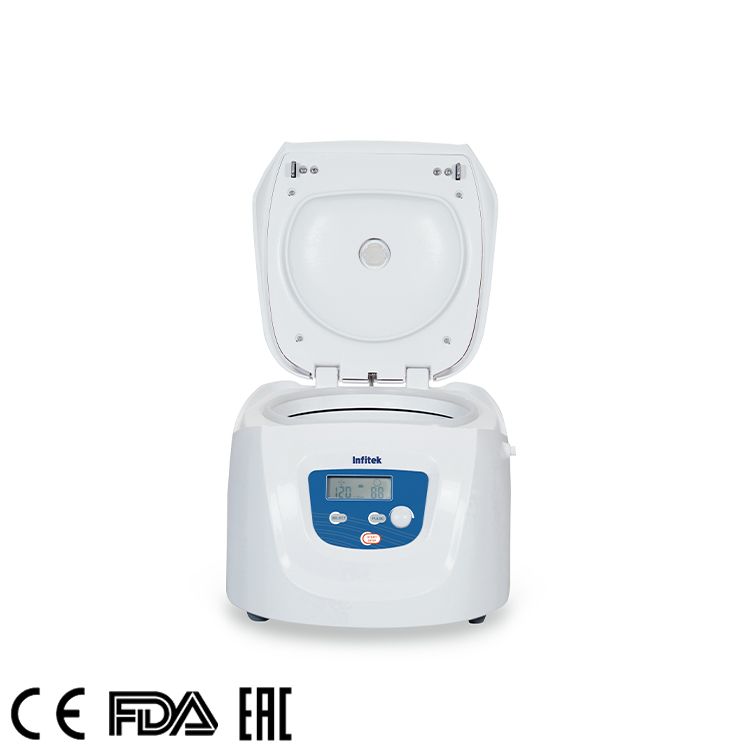

Microematocrit Centrifuge, CFG-14D,CFG-12D
Description

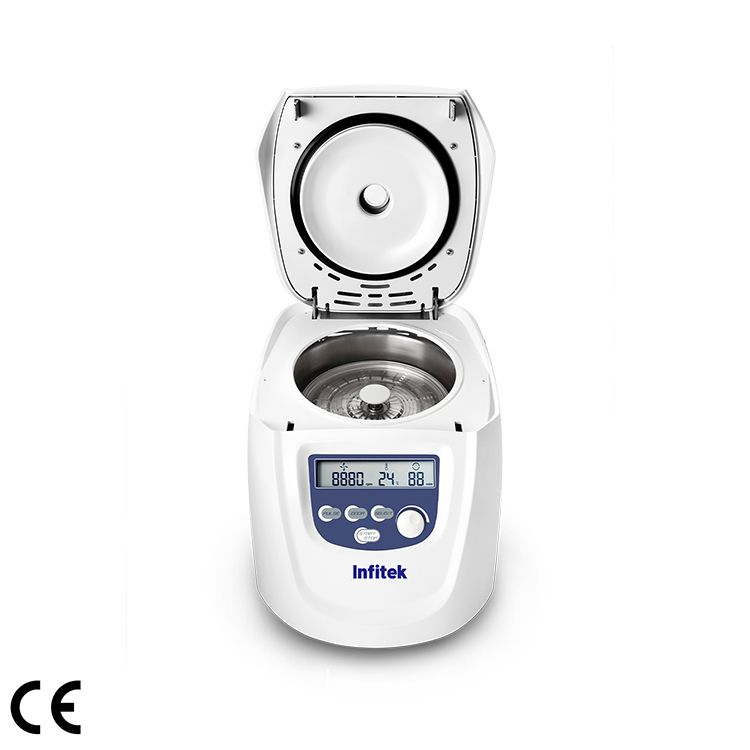

CFG-14D Features
- Speed range of 200-12000rpm Precise and independent control of speed and time.
- Easy operation with intuitive menu and LCD display.
- Maintenance-free brushless DC motor.
- Pulse operation for fast and convenient quick spins.
- Advance features include speed/RCF switch; short-time run function;audible alert function.
- Safety features include door interlock, overspeed detector;over-temperature detector; automatic internal diagnosis and automatic rotor identification.
CFG-12D Features
- Speed range of 500-12000 rpm.
- Precise control of speed and time.
- Maintenance-free brushless DC motors.
- Door interlock
Specifications
| Specifications | CFG-14D | CFG-12D |
| Speed Range | 200-12000rpm, increment: 10rpm | 500-12000rpm, increment: 100rpm |
| Max. RCF | 13680×g | 13680×g |
| Speed Accuracy | ±20 | ±100 |
| Run Time | 30sec-99min/Continuous | 10sec-99min/Continuous |
| Motor | Brushless DC motor | Brushless DC motor |
| Display | LCD | LCD |
| Safety Devices | Door interlock, Overspeed detector; Automatic internal diagnosis, Automatic rotor identification | Door interlock |
| Acceleration/Braking time | 30s↑30s↓ | 40s↑40s↓ |
| Power | Single-phase, 200V-240V,50Hz/60Hz, 5A; 100V-120V,50Hz/60Hz, 5A 160W |
Single-phase, 200V-240V,50Hz/60Hz, 5A; 380W |
| Dimension[W×D×H] | 280mm×364mm×274mm | 280mm×364mm×213mm |
| Weight | 10.5kg | 8.5kg |
| Advanced features | Speed/RCF switch; Short-time run function; sound-alert function | Speed/RCF switch; Short-time run function; sound-alert function |
Available rotors
 |
Cat. No.19400047
CFG-14D & CFG-12D Max. speed: 12000rpm Max. RCF: 13680×g Rotor capacity: capillary tubes×24 Rotor material: High strength aluminum |
