- Microcomputer control
- With touching pad and LED digital display
- Durability and easy cleaning
- Various safety protections
- Safety and reliability during running

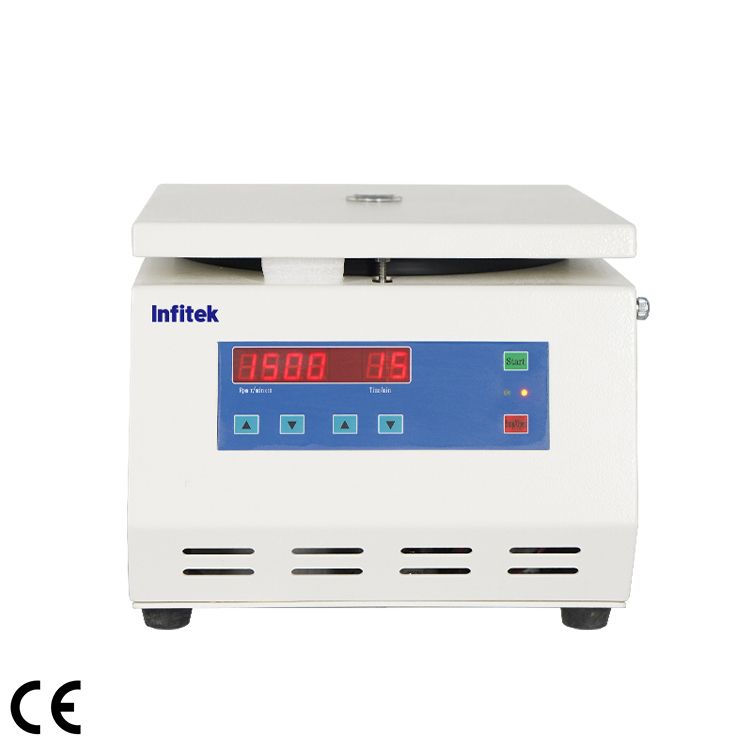

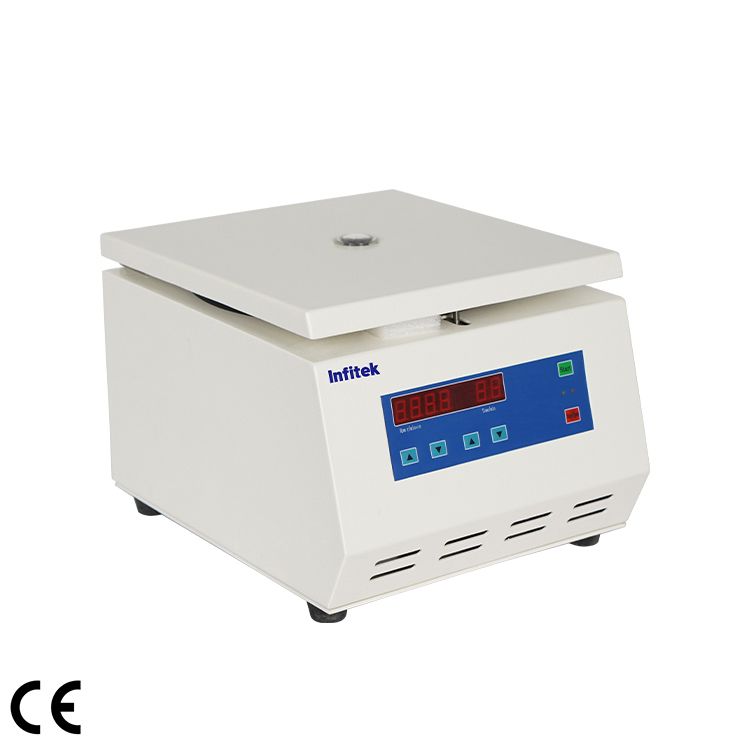

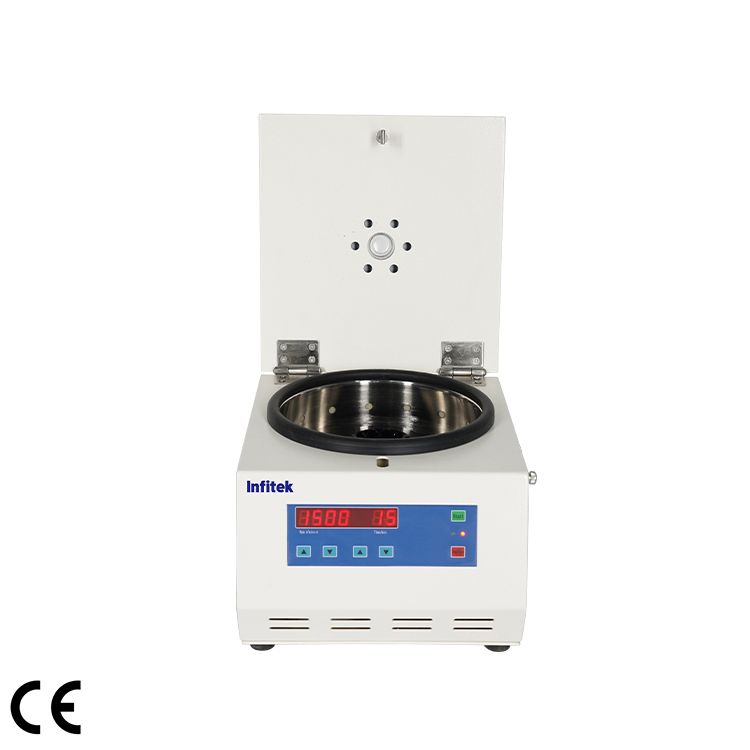

High Speed Centrifuge, CFG-16D
Description
DESCRIPTION
DESCRIPTION
This series of centrifuges is a conventional laboratory centrifuge. They are applicable for the tests with small samples, many processes, large centrifugal force and little temperature requirement. They are widely used in the fields of biochemistry, genetic engineering, agriculture, farming, food safety, medicine and so on. Bench top low speed centrifuges for micro samples’ fast separation and synthesis.
Advantages
- Driving: Drived by maintenance-free brushless DC motor with high torque. It offers fast acceleration and dynamic brake and the powerful vibration absorbers make the motor run more steady.
- Display: Controlled by microcomputer with touching pad and LED digital display. The last program is stored automatically and RCF can be directly set.
- Body Structure: Premium steel housing for safety and reliability; stainless steel chamber for durability and easy cleaning.
- Safety Protection: Rotor recognition system(Optional function). It contains various safety protections including lid locking and holding during rotor on, over speed, over temp., unbalance. The electronic lock ensures its safety and reliability during running.
SPECIFICATIONS
SPECIFICATIONS
Model | CFG-16D |
Max. Speed | 16000 r/min |
Max. RCF | 17800×g |
Max. Capacity | 10×5ml |
No.16 Angle Rotor | 18×0.5ml(16000r/min)RCF:17800×g |
No.17 Angle Rotor | 12×1.5/2.0ml(16000r/min)RCF:17800×g |
No.26 Angle Rotor | 8×5ml(13000r/min)RCF:10000×g |
Speed Accuracy | ±30r/min |
Time Range | 0~99min |
Sound Emission | ≤58dB |
Motor | Brushless DC motor and microcomputer controlled |
Electricity | AC 220V 50Hz 8A |
Dimension (W*D*H) | 330*280*215mm |
Weight | 15Kg |
