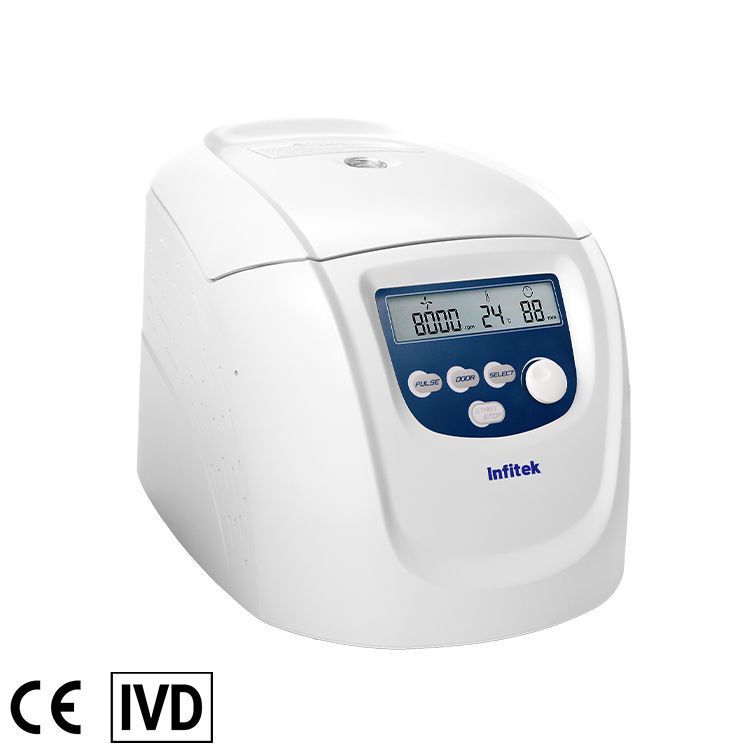

Micro Centrifuge, High Speed, CFG-15D

  • Max. Speed: 15000rpm
  • Max. RCF: 21380×g
  • Capacity: 5ml×18, 5mL culture tube×12 0.2ml/0.5ml/1.5ml/ 2ml×24, 0.5ml×36, PCR8×4

Share the product




  • Patent multi-flow air cooling design to provide air exchange to prevent chamber warming.
  • Three-layer seal ensures air-tightness and biosafety.
  • High strength aluminum alloy rotor can be fully autoclaved for unlimited service life.
  • Four rotors are optional complete with 24 places 1.5/2.0ml tubes, bigger 5.0ml, smaller 0.2ml and 0.5ml tubes with adapters



Specifications CFG-15D
Max. Speed 15000rpm(200-15000rpm), increment: 10rpm
Max. RCF 21380×g, increment: 10×g
Speed Accuracy ±20 rpm
Rotor Capacity 5ml×18, 5mL culture tube×12 0.2ml/0.5ml/1.5ml/2ml×24, 0.5ml×36, PCR8×4
Run Time 30sec-99min/Continuous
Acceleration/Braking time (Sec) 25s↑25s↓
Motor Brushless DC motor
Safety Devices Dual door interlock, over-speed detection, automatic internal diagnosis
Power Single-phase, AC200V-400V, 50Hz/60Hz, 5A, AC100V-120V, 50Hz/60Hz, 8A 200W
Noise Level ≦64dB
Dimension(W×D×H) 280mm×364mm×266mm
Weight 12 kg
Other functions Speed/RCF switch; Short-time run function; sound-alert function
