- Speed: 21000rpm
- RCF: 30910×g
- Capacity: 4×800ml Swing rotor
- Temperature Range: -20℃～40℃

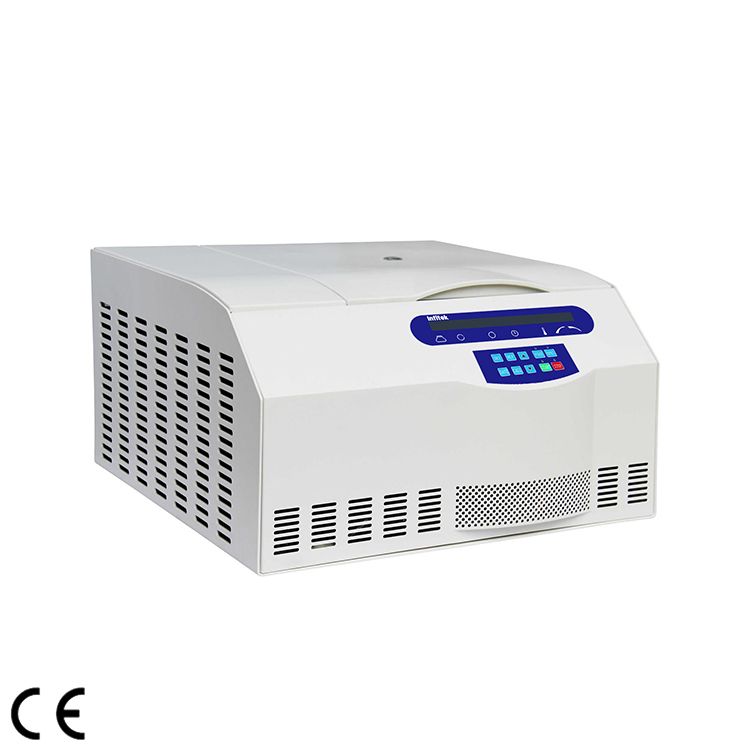

High Speed Refrigerated Centrifuge, CFGR-21BY
Description
Application
The high speed refrigerated centrifuge is used for bacteria, protein precipitation, nucleic acid extraction, subcellular component separation, clinical test sample processing, blood, suitable for medical, life sciences, biopharmaceutical, agricultural sciences, environmental protection and other scientific research units, as well as universities and colleges.
Features
- Adopt large torque brushless frequency conversion motor, maintenance-free, no dust, fast lifting speed.
- Induction automatic electric suction door lock, with emergency door opening device; self-inspection and protection of door lock, over-speed, unbalance, etc., safe and reliable.
- Using a microcomputer processor for precise control, LED display, and key programming; Real time and simultaneous display of rotor No., Program number, Speed/RCF, Time, Temperature, and Acceleration/Deceleration gear; Parameters can also be modified during operation.
- It uses imported fluorine-free compressor units, high-quality copper tubes wrapped around the centrifugal chamber, full tin soldering technology, and double-circulation pipelines, which greatly improves the refrigeration efficiency and can reduce the room temperature from 25°C to 4°C within 4 minutes.
- Use”automatic constant temperature control system adjustment technology” to accurately control temperature.
- Using a unique spring cone sleeve to connect the rotating head and spindle, the rotating head is locked 360°, and the loading and unloading of the rotating head is non directional, fast and simple.
- Can store and call 10 sets of programs, with 10 acceleration rates and 10 deceleration rate options.
- The whole machine is all-steel structure, stainless steel centrifugal chamber; multi-layer protection design, three-stage vibration reduction, safe and stable.
- The instrument door cover is equipped with a hydraulic rod to reduce operating load.
Specifications
| Model | CFGR-21BY |
| Max. Speed | 21000rpm |
| Max. RCF | 30910×g |
| Max. Capacity | 4×800ml Swing rotor |
| Temperature Range | -20℃～40℃ |
| Timer | 1min～99h59min |
| Speed Accuracy | ±10rpm |
| Temperature Accuracy | ±1℃ |
| Sound Emission | ≤65dBA |
| Electricity | AC 110V/220V, 50/60Hz |
| External Dimension | 675*725*400mm |
| N.W./G.W. | 118kg/148kg |
| Package Dimension | 930*830*580mm |
Matched Rotors
| Rotor No. | Rotor Type | Max. Speed | Max.Capacity | Max. RCF | Notes |
| No.05105 | Angle rotor | 18000rpm | 30×0.5ml | 26660×g | Optional |
| No.05106 | Angle rotor | 15000rpm | 40×0.5ml | 22930×g | Optional |
| No.05101 | Angle rotor | 21000rpm | 12×1.5/2ml | 30910×g | Optional |
| No.05102 | Angle rotor | 18000rpm | 24×1.5/2ml | 29670×g | Optional |
| No.05103 | Angle rotor | 13500rpm | 30×1.5/2ml | 19340×g | Optional |
| No.05104 | Angle rotor | 13000rpm | 48×1.5/2ml | 17930×g | Optional |
| No.05107 | Angle rotor | 16000rpm | 16×5ml | 22020×g | Optional |
| No.05108 | Angle rotor | 16000rpm | 12×7ml | 21380×g | Optional |
| No.05109 | Angle rotor | 16000rpm | 6×10ml | 21500×g | Optional |
| No.05110 | Angle rotor | 15000rpm | 12×10ml | 22680×g | Optional |
| No.05113 | Angle rotor | 13000rpm | 8×15ml | 17790×g | Falcon |
| No.05114 | Angle rotor | 10000rpm | 12×15ml | 11840×g | Falcon |
| No.05116 | Angle rotor | 12000rpm | 8×20ml | 14510×g | Optional |
| No.05117 | Angle rotor | 14000rpm | 6×30ml | 19060×g | Optional |
| No.05120 | Angle rotor | 13000rpm | 6×50ml | 18840×g | Optional |
| No.05122 | Angle rotor | 8000rpm | 8×50ml | 8090×g | Optional |
| No.05128 | Angle rotor | 12000rpm | 4×100ml | 14850×g | Optional |
| No.05129 | Angle rotor | 12000rpm | 6×100ml | 16390×g | Optional |
| No.05131 | Angle rotor | 8000rpm | 4×250ml | 9090×g | Optional |
| No.05132 | Angle rotor | 7000rpm | 6×250ml | 8050×g | Optional |
| No.05607 | Swing rotor | 4000rpm | 4×25×5/7ml | 3450×g | For 2-7ml vacuum tube |
| Swing rotor | 4000rpm | 4×800ml(round) | 3450×g | Optional biosafety cover | |
| Adapter | 4×500ml(falcon) | Falcon | |||
| Adapter | 4×250ml(falcon) | Falcon | |||
| Adapter | 4×24×5/7ml vacuum tube | For 2-7ml vacuum tube | |||
| Adapter | 4×19×10ml vacuum tube | For 10ml vacuum tube | |||
| Adapter | 4×14×10/15ml | For 10/15ml tube | |||
| Adapter | 4×5×50ml | For 50ml tube | |||
| No.05608 | Swing rotor | 4000rpm | 4×500ml(round) | 3530×g | Optional biosafety cover |
| Adapter | 4×18×5/7ml vacuum tube | For 2-7ml vacuum tube | |||
| Adapter | 4×14×10ml vacuum tube | For 10ml vacuum tube | |||
| Adapter | 4×9×10/15ml | For 10/15ml tube | |||
| Adapter | 4×3×50ml | For 50ml tube | |||
| No.05609 | Swing rotor | 4000rpm | 4×500ml(rectangle) | 3450×g | Optional biosafety cover |
| Adapter | 4×20×5/7ml vacuum tube | For 2-7ml vacuum tube | |||
| Adapter | 4×16×10ml vacuum tube | For 10ml vacuum tube | |||
| Adapter | 4×12×10/15ml | For 10/15ml tube | |||
| Adapter | 4×5×50ml | For 50ml tube | |||
| No.05611 | Swing rotor | 4000rpm | 4×4×96 well | 2940×g | Optional |
| No.05610 | 4×7×50ml | 3470×g | Falcon | ||
| No.05629 | Swing rotor | 5000rpm | 4×1×50ml | 4730×g | Optional |
| No.05630 | 4×1×100ml | 4730×g | Optional | ||
| No.05635 | 4000rpm | 4×2×100ml | 3020×g | Optional | |
| No.05634 | 4×2×50ml | 3200×g | Optional | ||
| No.05631 | 4×8×15ml | 3200×g | For 5-15ml | ||
| No.05639 | 4×16×5ml vacuum tube | 2530×g | For 2ml vacuum tube | ||
| No.05638 | 4×16×7ml vacuum tube | 2890×g | For 5ml vacuum tube | ||
| No.05640 | 4×12×10ml vacuum tube | 2880×g | For 10ml vacuum tube | ||
| No.05614 | Swing rotor | 4000rpm | 4×30×7ml vacuum tube | 3160×g | For 5-7ml vacuum tube |
| No.05615 | 4×40×7ml vacuum tube | 3270×g | For 5-7ml vacuum tube | ||
| No.05618 | 4×28×10m vacuum tube | 3270×g | For 10ml vacuum tube |
