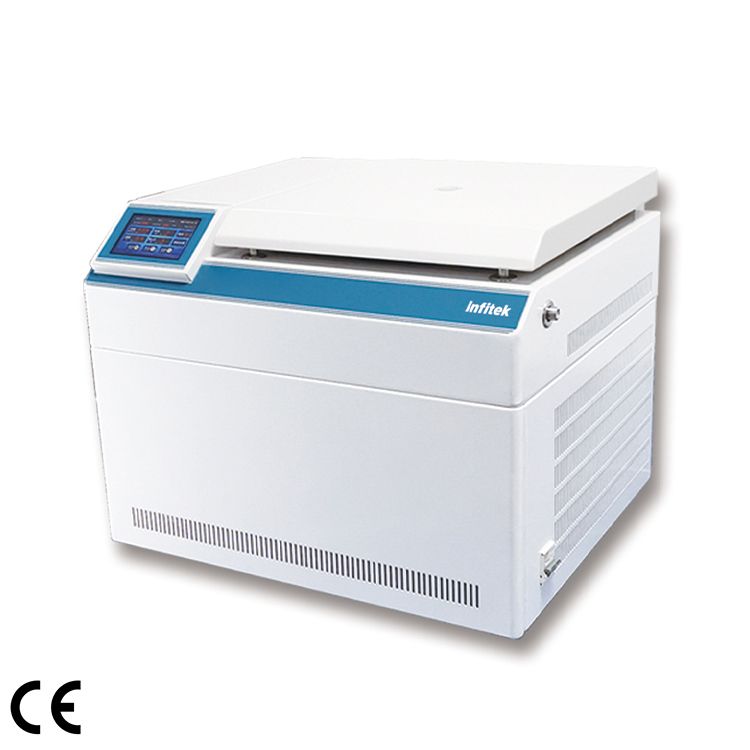

High Speed Refrigerated Centrifuge, CFGR-23JP

Description

Description

The CFGR-23JP High Speed Refrigerated Centrifuge adopts microcomputer control, large-screen color LCD display, and full touch-screen operation interface to directly set the working program, RCF, speed, time, acceleration and deceleration, and rotor model.

Features

1. Brushless AC variable frequency motor drive and special drive module ensure the reliability of the circuit.
2. Double door cover lock system, starting means locking, ensuring safe operation.
3. Provides 20 kinds of working program storage, users can freely program and call theirworking parameters, which is easy to use and improves work efficiency.
4. Provide 15 kinds of acceleration/deceleration; User can set one group of acceleration and deceleration arbitrarily according to the sample requirements.
5. Two timing functions: at set rpm and start timing, and the jog is short spin function.
6. Differential centrifugation: Five differential centrifugation programs are reserved, and users can set them according to their needs.
7. Double-layer steel structure and stainless steel centrifugal chamber to avoid corrosion.
8. Automatic balance and imbalance protection. When an error or imbalance occurs, an audible alarm signal will be issued and the centrifuge will automatically stop running.
9. Easily adjust speed, RCF, time and temperature during operation without
10. The shortest acceleration / deceleration time≤15s[H0.512].
11. Countdown function : The countdown in seconds,real time display of remaining working time.
12. The centrifuge chamber is equipped with a condensate drainage hole to prevent water accumulation in the centrifuge chamber.
13. Prefabricated cooling function:In standby mode, the centrifuge can be continuously cooled to the set temperature.
14. Automatic standby function: When the temperature drops to the set temperature, the compressor will automatically standby to reduce energy consumption and extend the life of the compressor.
15. Quick cooling function:When the temperature drops from 21℃ to 4 ℃of biological zero, the cooling time is≤5 minutes.
16. The rotor can be autoclaved at 121°C for more than 2 hours. The rotor is a sealed angle and has high biological safety.Airtight angle rotor with high biological safety.
17. Automatically recognizes the magnetic rotor without manually setting the rotor model, and has over-speed protection function.
18. Can customize 485 communication interface function.
