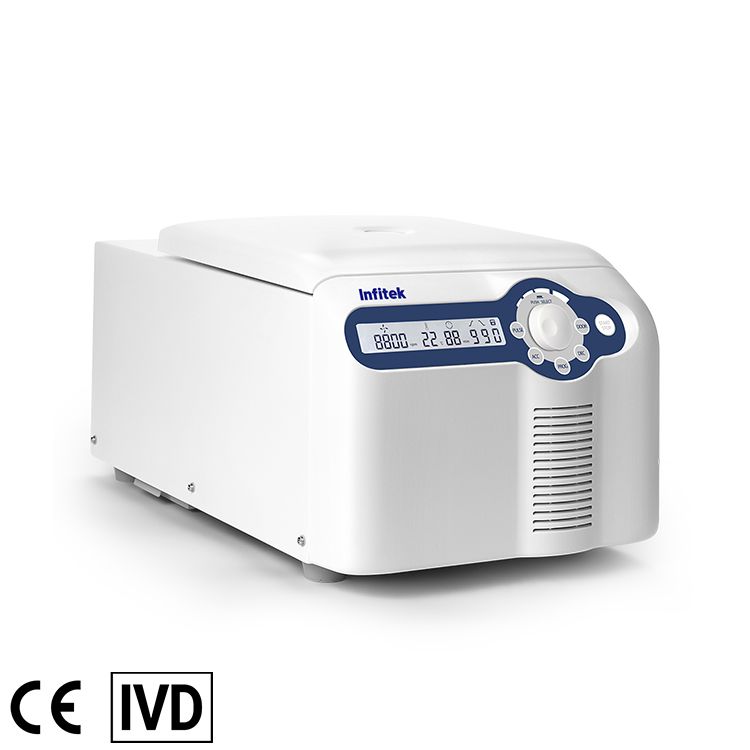

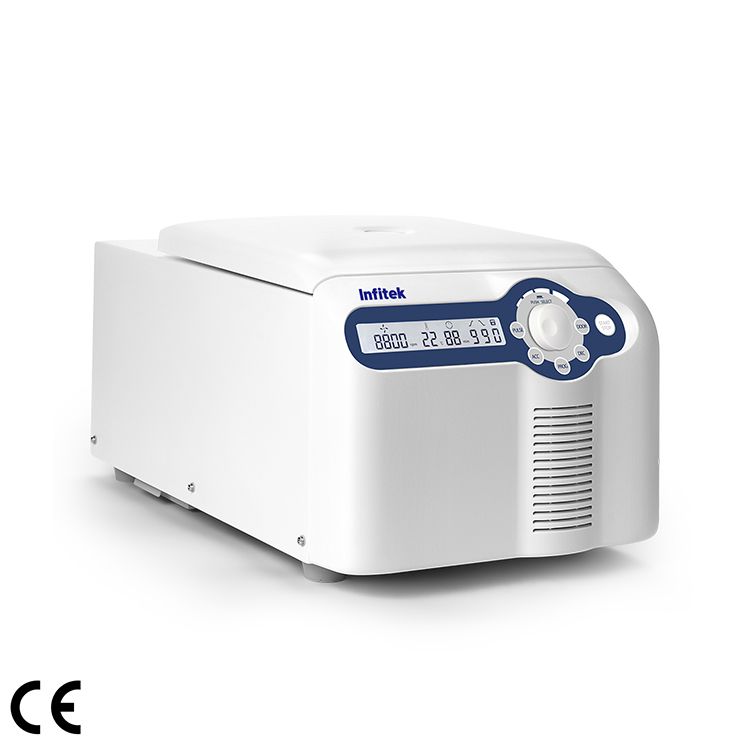

Refrigerated Microcentrifuge, High Speed, CFGR-15D

  • Max. Speed/RCF: 15,000rpm/21,380×g
  • Capacity: 1.5/2mL×24, 0.5mL×36, PCR8×4, 5mL×12, 5mL×18
  • Temperature Setting: -20℃ -40℃
  • Fast and powerfulcooling capacity, 7 minutes cooling from room temp to 4℃

Share the product

Description

DESCRIPTION

DESCRIPTION

  1. Ergonomic electronic lock design,the centrifuge lid can be closed with single finger touch.
  2. Pre-cooling, the compressor will automaticallystart cooling as long as the set temperature is lower than the ambient temperature.
  3. Sound indicator to prompt that the uppercover is closed to maintain the temperature inside the chamber, after centrifugation.
  4. Advanced R290 fluorine free refrigerant, lowcarbon and environmental protection.
  5. Temp range:-20℃- 40℃, fast and powerfulcooling capacity, 7 minutes cooling from room temp to 4℃. Temp can kept at max speed.
  6. Up to 9 program storage capacity accordingto experimental needs.
  7. Three-layer sealed rotors ensure air-tightnessand biological
  8. High-strength aluminum alloy withstand numeroushigh temperature and high pressure sterilizations.
  9. Five rotors with 0.2mL, 0.5mL, 1.5mL, 2mLand 5mL centrifuge tubes/ PCR tubes capacity.
  10. An external condensation tank prevents wateraccumulation within the centrifuge chamber.
  11. Rotor imbalance detection alarm.

SPECIFICATIONS

SPECIFICATIONS

Specifications CFGR-15D
Max. Speed 15,000rpm (200-15,000rpm) in 100rpm increments.
Max. RCF 21,380×g, step: 10×g
Capacity 1.5/2mL×24, 0.5mL×36, PCR8×4, 5mL×12, 5mL×18.
Temperature Setting -20℃- 40℃
Run Time 30s-99 min; HOLD (continuous running)
Acceleration and deceleration time 25s↑25s↓
Motor Type DC brushless motor
Safety Performance Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system.
Power Requirements Single phase, 200-240V, 50Hz, 500W
Noise ≤56dB
Dimensions(mm) 332(width) × 553(depth) × 283(height)
Weight 30 kg
Package Dimension (W*D*H) 920*530*530mm
G.W. 47kg
Other functions Rotation speed/RCF switchover, inching operation, running process indicator, sound alert. Acceleration/deceleration in 9 steps, program storage capacity.

Available rotors

centrifuge rotors (7).png

CAT. NO. 19400069

for CFG-15D & CFGR-15D

Max. speed: 15000rpm

Max. RCF: 21380×g

Rotor capacity: 2mL/1.5mL×24/0.2mL×24/0.5mL×24

Rotor material: Aluminum alloy

Bio-safe (Bio sealing): Yes

Available rotor adapters: CAT. NO. 19500001, CAT. NO. 19500002



 centrifuge rotors (8).png CAT. NO. 19400070

for CFG-15D & CFGR-15D

Max. speed: 15000rpm

Max. RCF: 21380×g

Rotor capacity: 5mL×12(Cone bottom)

Rotor material: Aluminum alloy

Bio-safe (Bio sealing): Yes



 centrifuge rotors (1).png CAT. NO. 19400071

for CFG-15D & CFGR-15D

Max. speed: 15000rpm

Max. RCF: 21380×g

Rotor capacity: 0.5mL×36,0.2mL×36

Rotor material: Aluminum alloy

Bio-safe (Bio sealing): Yes

Available rotor adapters: CAT. NO. 19500003



 centrifuge rotors (2).png CAT. NO. 19400072

for CFG-15D & CFGR-15D

Max. speed: 15000rpm

Max. RCF: 21380×g

Rotor capacity:0.2mL/PCR8×4

Rotor material: Aluminum alloy

Bio-safe (Bio sealing): Yes



 centrifuge rotors (3).png CAT. NO. 19400073

for CFG-15D & CFGR-15D

Max. speed :15000rpm

Max. RCF:21380×g

Rotor capacity:5mL×18 (Round bottom)

Rotor material: Aluminum alloy

Bio-safe (Bio sealing): Yes

Available adapters

centrifuge adapters (2).png  CAT. NO. 19500001

0.2mL rotor adapter

24pcs/pk

 centrifuge adapters (2).png CAT. NO. 19500002

0.5mL rotor adapter

24pcs/pk

 centrifuge adapters (2).png CAT. NO. 19500003

0.2mL rotor adapter

36pcs/pk

Model

Rotor model

Capacity

Hole diameter(mm)

Hole depth (mm)

Max. tube length (mm)

CFG-Mini15D

Cat. No. 19400010

2×12

11.2

39

47

CFG-15D, CFGR-15D

CAT. NO. 19400069

2×24

11.2

40.5

54.2

CAT. NO. 19400070

0.5×36

8.2

29.3

36

CAT. NO. 19400071

0.2×32

6.5

20.4

36

CAT. NO. 19400072

5×18

13.7

39

56.5

CAT. NO. 19400073

5×12

17.5

44

56.5
