Description

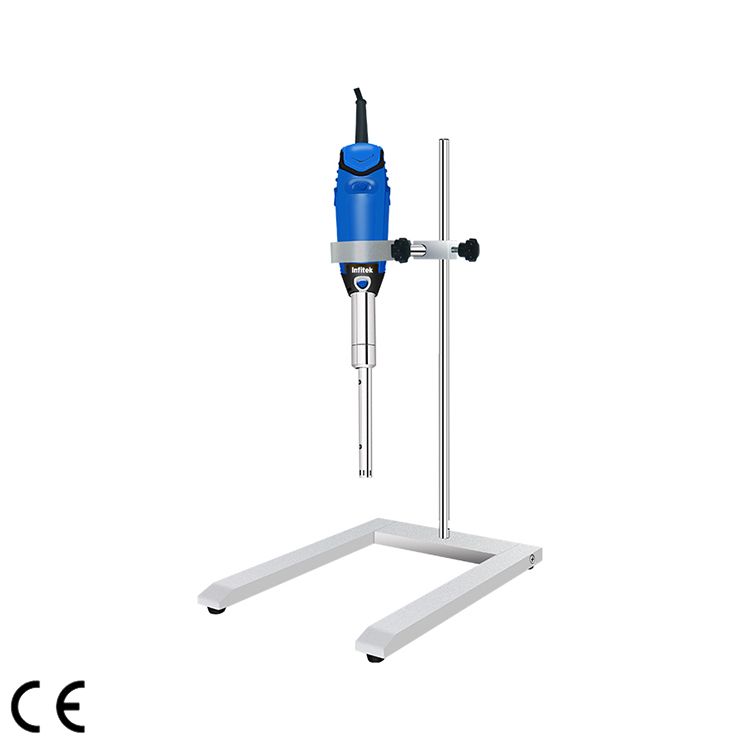

Homogenizer

Product application

HMG-6B product is suitable for mixing, emulsifying and homogenizing between liquids, dispersing liquid and solid powder, and the mashing and pulping of tissue cells. It is an ideal and reliable product specially designed for micro-processing in the laboratory. It can be used in pharmaceutical, biochemical, food, nanomaterial, coatings, adhesives, daily chemicals, printing and dyeing, petrochemicals, paper chemistry, polyurethane, inorganic salts, asphalt, organic silicon, pesticides, water treatment, heavy oil emulsification, diesel emulsification, electronics, batteries and other industries. It is also an ideal product for applications in scientific research, product development, quality control, and production processes in factories, scientific research institutions, colleges, and medical institutions.

Product characteristics

1. One-handed control, humanized operation, exquisite motor contains superpower, and the experimental effect is more ideal;
2. Double insulation protection to ensure safety;
3. All parts of the working head contacting materials are made of high-quality stainless steel with good corrosion resistance;
4. The working head is connected with the driving motor by coupling, which is simple and flexible;
5. The speed regulating base adopts a step-less speed regulator, which is convenient for speed regulation and stable operation.

Specifications

Model	HMG-6B
Range of rotation	1000-32000r/min
Processing capacity	0.2-150ml (H2O)
Standard working head	10G
Processing viscosity	2000mpas
Power	120W
Rotation speed control	6-speed
Contact material material	SS316L
Material of shaft sleeve entering material part	PTEE
Allowable relative humidity	80%
Type of working procedure	Micro-batch processing
Weight	2kg
Power supply	220V 50HZ
Optional working head configuration	HR-6G HR-8G HR-6GST HR-8GST HR-10GST
Optional bracket	Single column bracket

Optional tool bit

Tool bit	Specification	Processing capacity(ml)	Viscosity (cp)	Linear velocity(m/s)	Length of tool bit (mm)	Diameter of tool bit(mm)
	6G	0.2-50	100	5	125	6
	8G	10-60	500	8	150	8
	10G	30-150	2000	10	185	10
	6G-ST	0.2-50	100	5	125	6
	8G-ST	10-60	500	8	150	8
	10G-ST	30-150	2000	10	185	10
