Hotplate Magnetic Stirrer, HPS-340 series

  1. Stirring positions: 1
  2. Max. stirring quantity[H2O]: 20L
  3. Max. magnetic bar[length]: 80mm
  4. Speed range: 0-1500rpm

Share the product

Description

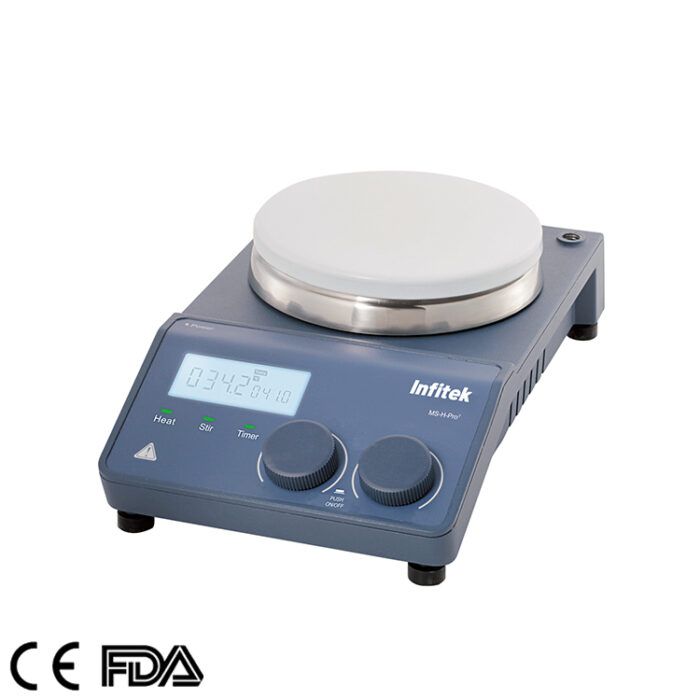

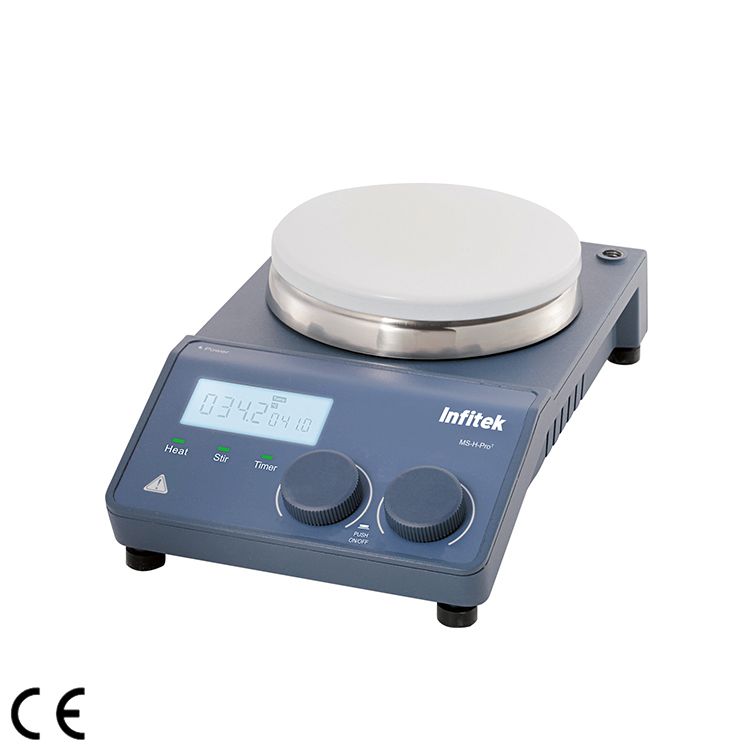

 HPS-340PT

Features

  • Brushless DC motor is maintenance free and explosion-proof
  • Digital temperature control with max. temperature at 340°C
  • Digital speed control with max. speed up to 1500rpm
  • stirring quantity of H2O at 20L
  • Safety circuits provide overheating protection
  • The “HOT” warning will flash if the plate temperature isabove 50°C even when the hotplate is turned off
  • High-resolution LCD display shows actual temperatures andspeed
  • External temperature control is possible by connecting thetemperature sensor (PT 1000) with accuracy at ±0.2°C
  • Stainless steel work plate with ceramic coating provides goodchemical-resistant performance
  • Remote function provides PC control and data transmission
  • A wide variety of accessories are available

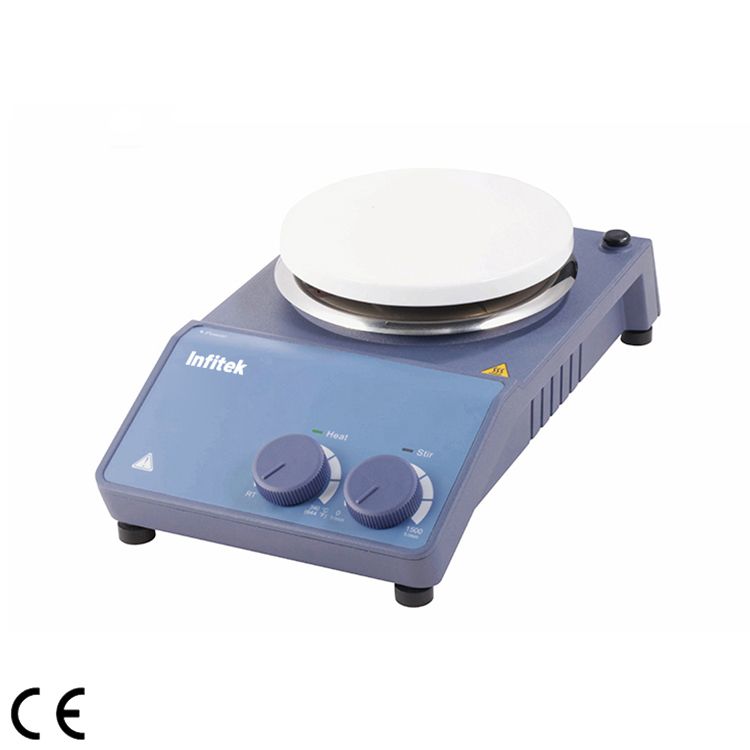

HPS-340

Features

  • Maintenance free brushless DC motor
  • temperature to 340°C
  • Stirring speed up to 1500 rpm
  • Stainless steel work plate with ceramic coating providesgood chemical-resistant performance
  • Safety circuits provide overheating protection
  • A wide variety of accessories are available
Specifications HPS-340PT HPS-340
Work plate dimension φ135mm(5 inch) φ135mm(5 inch)
Work plate material stainless steel cover with ceramic stainless steel cover with ceramic
Motor type Brushless DC motor Brushless DC motor
Stirring positions 1 1
Max. stirring quantity [H2O] 20L 20L
Max. magnetic bar[length] 80mm 80mm
Speed range 100-1500rpm 0-1500rpm
resolution±1rpm
Speed display LCD Scale
Temperature display LCD Scale
Heating temperature range Room temp.-340°C, increment 1°C Room temp.-340°C
Temperature control accuracy ±1°C(<100°C)
±1%(>100°C)
Over temperature protection 420°C 420°C
Temperature display accuracy ±0.1°C
External temperature sensor PT1000 (accuracy ±0.2)
“Hot” warning 50°C
Timer function 1min~99h59min
Data connector RS232
Protection class IP21 IP21
Motor rating input 18W 18W
Motor rating output 10W 10W
Power 550W 530W
Heating output 500W 500W
Voltage 100-120/200-240V 50/60Hz 100-120/200-240V 50/60Hz
Dimension [WxDxH] 160×280×100mm 160×280×100mm
Package Dimension 500×360×270mm 490×280×280mm
[WxDxH]
N.G./G.W. 2.8kg/5kg 2.8kg/3.7kg
Permissible ambient temperature and humidity 5-40°C, 80%RH 5-40°C, 80%RH
