- Speed range: 200-1500rpm
- Speed display resolution: ±1rpm
- Overheating protection: 320°C
- Temperature display accuracy: ±1°C

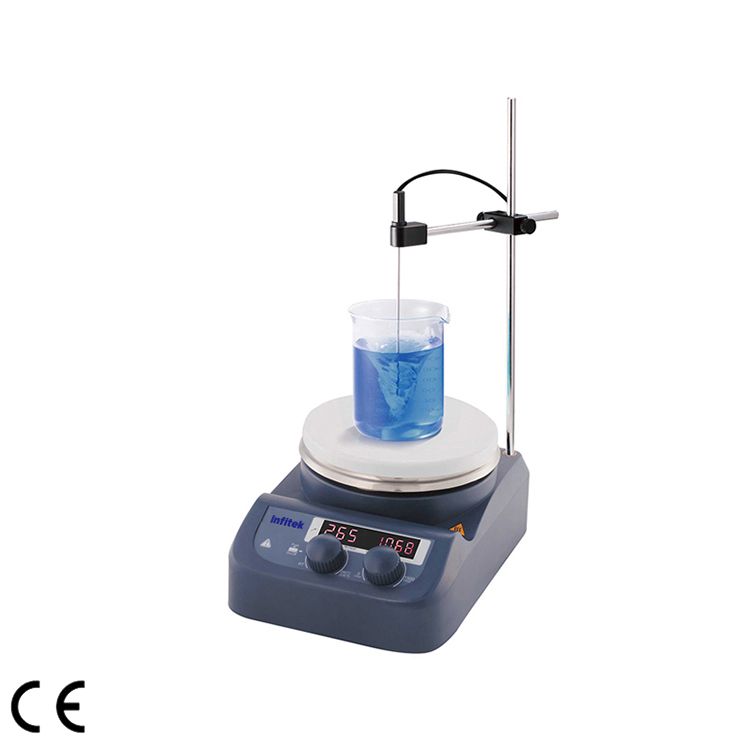

Hotplate Magnetic Stirrer, max. temperature 280°C, HPS-280
Description
DESCRIPTION
DESCRIPTION
Features:
•Digital temperature control with max. temperature up to 280°C.
•Digital speed control with max. speed up to 1500rpm.
•Stainless steel work plate with ceramic coating provides good chemical resistant performance.
•External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at ±0.5°C.
•LED display shows temperature and speed.
•The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off.
SPECIFICATIONS
SPECIFICATIONS
| Specifications | HPS-280 |
| Work plate Dimension | φ135mm (5 inch) |
| Work plate material | Stainless steel cover with ceramic |
| Motor type | Brushless DC motor |
| Stirring positions | 1 |
| Max. stirring quantity | 3L |
| Max. magnetic bar[length] | 50mm |
| Speed range | 200-1500rpm |
| Speed display | LED |
| Temperature display | LED |
| Speed display resolution | ±1rpm |
| Heating temperature range | Room temp.-280, increment 1°C |
| Control accuracy of work plate | ±1°C(<100°C) ±1%(>100°C) |
| Overheating protection | 320°C |
| Temperature display accuracy | ±1°C |
| External temperature sensor | PT1000 (accuracy ±0.5°C) |
| “Hot” warning | 50°C |
| Protection class | IP21 |
| Motor rating input | 5W |
| Motor rating output | 3W |
| Power | 515W |
| Heating output | 500W |
| Voltage | 100-120/200-240V 50/60Hz |
| Dimension [WxDxH] | 150×260×100mm |
| Weight | 1.8kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
