Magnetic Stirrer, MGS-1 Series

  1. Max. stirring quantity [H2O]: 3L
  2. Max. magnetic bar [length]: 50mm
  3. Speed range: 0-1500rpm

Share the product

Description

DESCRIPTION

DESCRIPTION

magnetic stirrerMGS-1Amagnetic stirrerMGS-1B

             MGS-1A                           MGS-1B

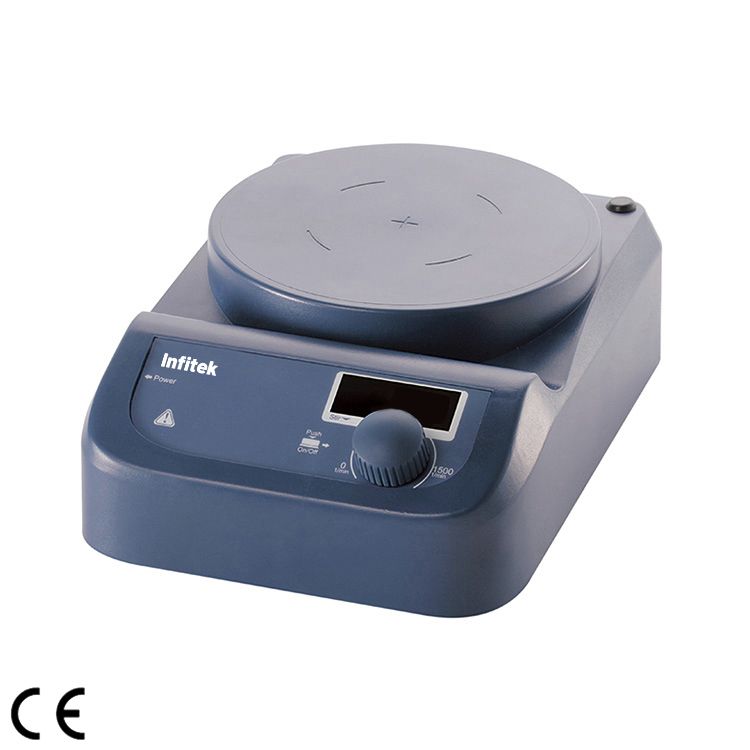

MGS-1A Features

  • Digital speed control within the range of 0-1500rpm.
  • stirring quantity of H2O at 3L.
  • LED display shows speed.
  • Nylon+GF housing provides a good performance ofchemical resistance.

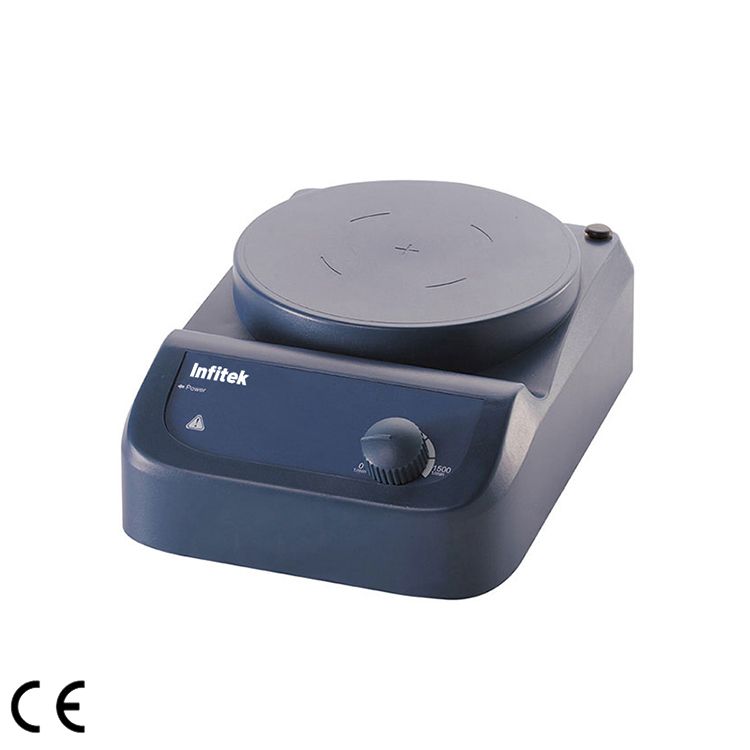

MGS-1B Features

  • A wide range of 0-1500rpm.
  • stirring quantity of H2O at 3L.
  • Nylon+GF housing provides a goodperformance of chemical resistance.

SPECIFICATIONS

SPECIFICATIONS

Specifications MGS-1A MGS-1B
Work plate dimension [W×H] φ 135mm (5 inch) φ 135mm (5 inch)
Work plate material Nylon+GF Nylon+GF
Motor type Brushless DC motor Brushless DC motor
Stirring positions 1 1
Max. stirring quantity [H2O] 3L 3L
Max. magnetic bar [length] 50mm 50mm
Speed range 0-1500rpm 0-1500rpm
Speed display LED Scale
Protection class IP42 IP42
Motor input power 5W 5W
Motor output power 3W 3W
Power 15W 10W
Voltage 100-120/200-240V, 50/60Hz 100-120/200-240V, 50/60Hz
Dimension [W×D×H] 150×260×80mm 150×260×80mm
Weight 1.8kg 1.8kg
Permissible ambient temperature and humidity 10-40℃, 80%RH 10-40℃, 80%RH
