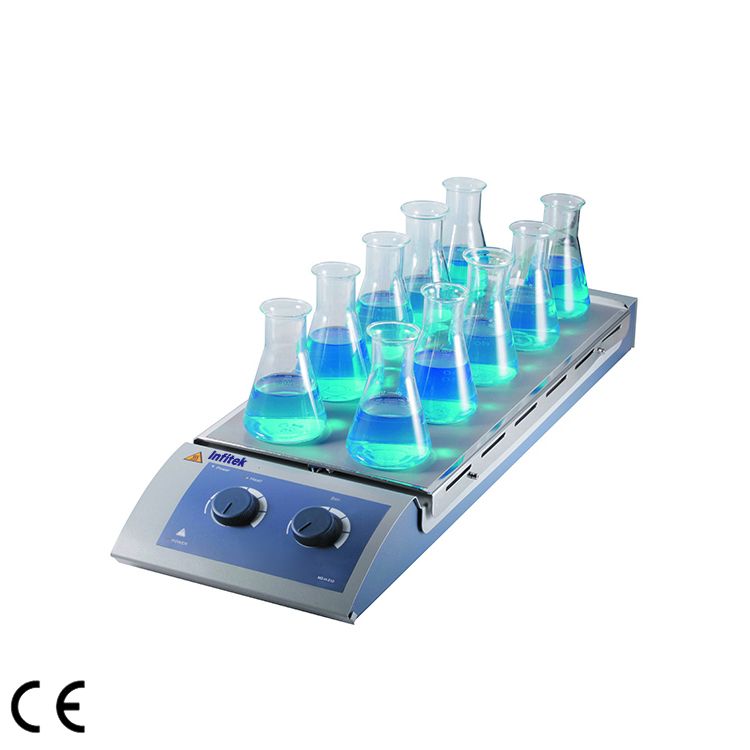

Hotplate Magnetic Stirrer, Multi-Position, HPS-M120-S10

  1. Max. stirring quantity: 0.4Lx10
  2. Max. magnetic bar[length]: 40mm
  3. Speed range: 0-1100rpm
  4. Heating temperature range: Room temp.-120°C
  5. Overheating protection: 140°C

Share the product



•Maintenance-free brushless DC motor.
•Max speed 1100rpm.
•Max. temperature 120°C.
•Stainless steel work plate, covered with silicone cushion, provides the excellent performance of heating uniformity and skid resistance.


Specifications HPS-M120-S10
Work plate dimension [W x D] 180x450mm
Work plate material Stainless steel with silicone
Motor type Brushless DC motor
Stirring positions 10
Max. stirring quantity 0.4Lx10
Max. magnetic bar[length] 40mm
Speed range 0-1100rpm
Speed display scale
Temperature display scale
Heating temperature range Room temp.-120°C
Overheating protection 140°C
Protection class IP42
Motor rating input 12W
Motor rating output 4W
Power 490W
Heating output 470W
Voltage 100-120/200-240V 50/60Hz
Dimension [WxDxH] 182×622×65mm
Weight 3.2kg
Permissible ambient temperature and humidity 5-40°C, 80%RH
