Magnetic Stirrer, MGS Series

  1. Stirring positions: 1
  2. Max. stirring quantity [H2O]: 20L; 10L; 5L
  3. Max. magnetic bar [length]: 80mm; 80mm; 40mm
  4. Speed range: 0-1500 rpm; 0-1500 rpm; 200-1500 rpm

Share the product


Magnetic Stirrer, MGS SeriesMagnetic Stirrer, MGS SeriesMagnetic Stirrer, MGS Series

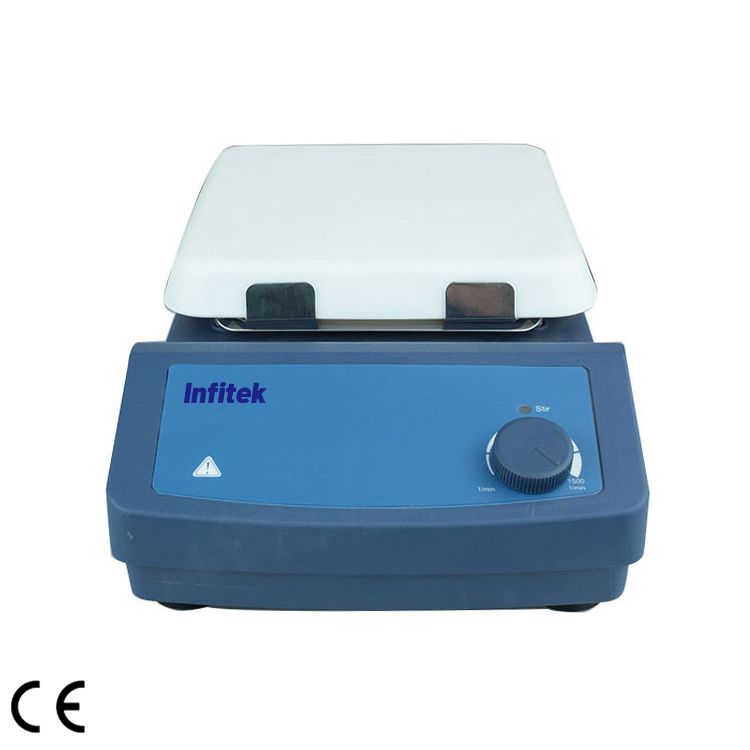

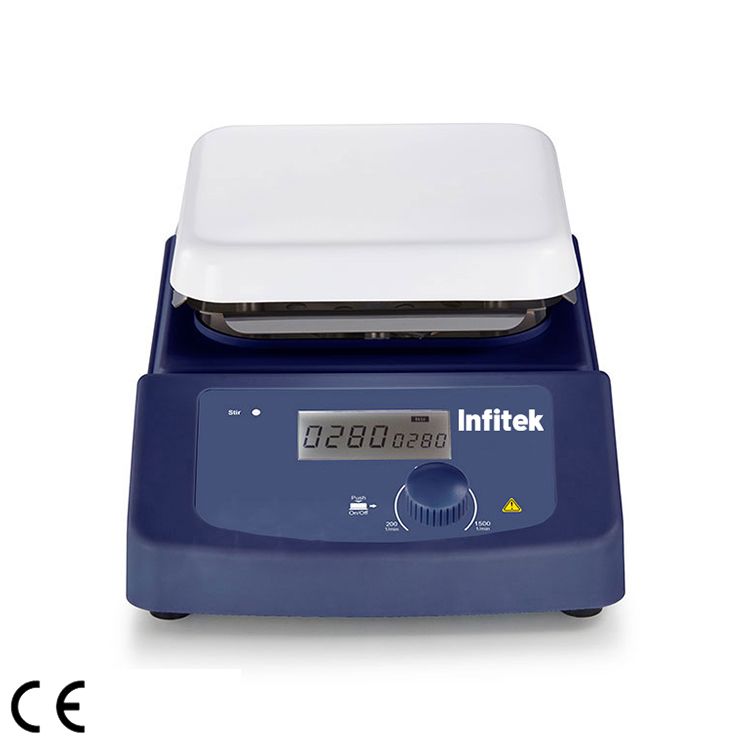

             MGS-1C                                     MGS-6P                                  MGS-7S


•Maintenance free brushless DC motor.
•Speed range of 0-1500 rpm.
•Max. stirring quantity of H2O at 20L.
•Stainless steel work plate cover with ceramic material provides good chemical resistance performance.

•Speed range of 0-1500rpm.
•Max. stirring quantity of H2O at 10L.
•Ceramic work plate provides excellent chemical resistant performance.

•High resolution LCD displays actual speed.
•Brushless DC motor is maintenance free
•Aluminum cover with ceramic work plate provides good chemical resistant performance.
•Digital speed control with max. speed up to 1500rpm.
•Max. stirring quantity of H2O at 5L.


Specifications MGS-1C MGS-7S MGS-6P
Work plate dimension [W×H] φ 135mm (5 inch) 184×184mm (7 inch) 140 ×140mm
Work plate material Stainless steel cover with ceramic Glass ceramic Aluminum cover with ceramic
Motor type Brushless DC motor Shaded pole motor Brushless DC motor
Stirring positions 1 1 1
Max. stirring quantity [H2O] 20L 10L 5L
Max. magnetic bar [length] 80mm 80mm 40mm
Speed range 0-1500rpm 0-1500rpm 200-1500rpm
Speed display Scale Scale LCD
Protection class IP42 IP21 IP21
Motor input power 18W 15W 2.4W
Motor output power 10W 1.5W 1.8W
Power 30W 30W 10W
Voltage 100-240V, 50/60Hz 100-120/200-240V, 50/60Hz 100-240V, 50/60Hz
Dimension [W×D×H] 270*500*280mm 215×360×112mm 320×180×108mm
Weight 3.6kg 3.8kg 2.2kg
Permissible ambient temperature and humidity 5-40℃, 80%RH 5-40℃, 80%RH 5-40℃, 80%RH
