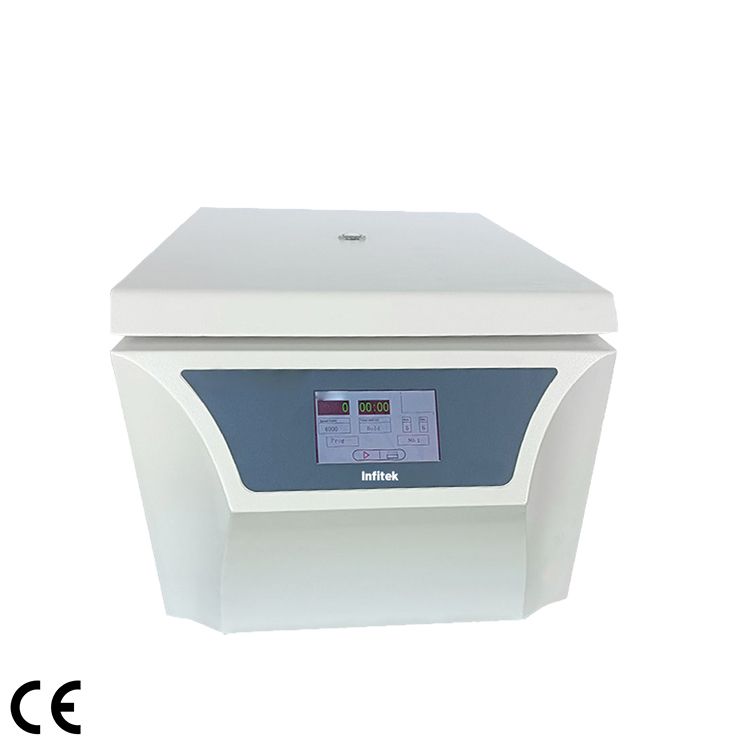

Low Speed Benchtop Centrifuge, CFG-5BL

  1. Max. Speed: 6000rpm
  2. Max. RCF: 3800×g
  3. Max.Capacity: 4×500mL

Share the product


It is suitable for separation of biological, chemical, pharmaceutical, biological products and other different liquids.


1. 5-inch high-definition touch screen, easy to operate and intuitive display;

2. Automatically identify 4different rotors to eliminate potential safety hazards caused by user misoperation;

3. It has 9 files of acceleration and10 files of deceleration level,which can effectively prevent secondary suspension and have a good centrifugal effect;

4. 15 groups of programs can be stored for users to use;

5. Special air duct, continuous working temperature rise is less than 10℃ at room temperature of 26-28℃;

6. AC variable frequency motor, high speed control precision;

7. Unique two-stage shock absorption; large-capacity rotor has little vibration during operation, runs smoothly, and increases the service life of the instrument;

8. There are various protections such as overspeed, door protection, imbalanceprotection, etc. to ensure the safety of human and machine;


Model CFG-5BL
Max. Speed 6000rpm
Max. RCF 3800×g
Max.Capacity 4×500mL
Motor AC frequency conversion motor
Speed Accuracy ±30r/min
Time Setting Timed centrifugation:1min~99 min59sec

Continuous centrifugation : Hold

Power Supply AC220±22V 50/60Hz 10A
Noise ≤60dB(A)
Dimensions(L×D×H) 458mm×620mm×380mm
Net Weight 55kg


NO. Max. speed (r/min) Max. RCF(×g) Rotor Type Capacity Dimension of  Test Tube (mm) Picture
NO.1 4000 2810 Swing Rotor 4x2x100ml

(It can be equipped with adapter)



centrifuge rotor
4000 2810 4x100ml

(It can be equipped with adapter)



centrifuge rotor
4000 2810 4x2x50ml Φ29×107
4000 2810 4x50ml Φ29×107 centrifuge rotor
4000 2810 4x8x15ml Φ17×118
4x6x15ml Φ17×118 centrifuge rotor
4x4x15ml Φ17×118
NO.2 4200 3500 4x250ml Φ62×110 centrifuge rotor
NO.3 4000 3040 4×500ml Φ80×137 centrifuge rotor
NO.4 4000 2800 4×12×7/5ml Φ13×110 centrifuge rotor
NO.5 4000 2800 4×18×7/5ml Φ13×110 centrifuge rotor
NO.6 4000 2800 4×24×7/5ml Φ13×110 centrifuge rotor
NO.7 4000 2000 Microplate Rotor 2×2×96 well plate Microplate centrifuge rotor
NO.8 6000 4390 Angle rotor 12×10ml Φ16×83 centrifuge rotor
