- Speed: 6000rpm
- RCF: 4730×g
- Capacity: 4×300ml Swing rotor

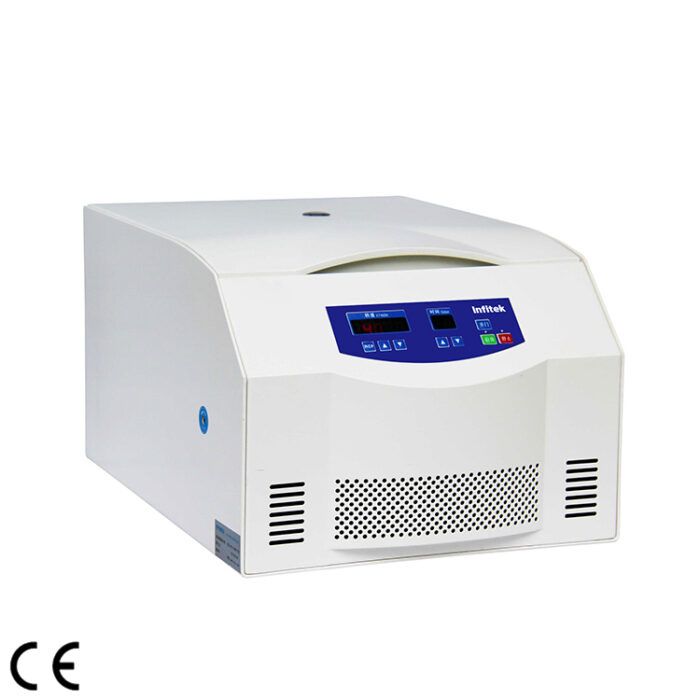

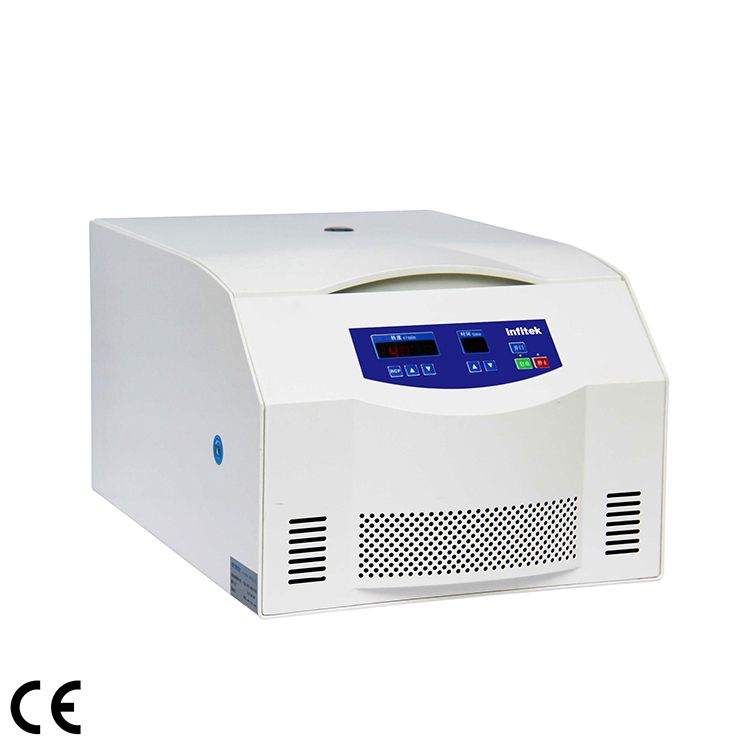

Low Speed Centrifuge, CFG-6BA
Description
Application
It is mainly used in laboratories of biology, medicine, chemistry, physics, etc. It is an ideal instrument for the analysis of serum, plasma, urine, radioimmunoassay, etc.
Features
- Adopt large torque brushless frequency conversion motor, maintenance-free, no dust, fast lifting speed.
- Induction automatic electric suction door lock, with emergency door opening device; self-inspection and protection of door lock, over-speed, unbalance, etc., safe and reliable.
- Using a microcomputer processor for precise control, eye-catching red digital LED display, key programming, and parameter modification during operation.
- Using a unique spring cone sleeve to connect the rotating head and spindle, the rotating head is locked 360°, and the loading and unloading of the rotating head is non directional, fast and simple.
- Aero forged aluminum rotors (except multi-tube frame rotors) and various Teflon adapters are available.
- 10 acceleration rates and 10 deceleration rates for users to choose to achieve the best centrifugal effect.
- The whole machine is all-steel structure, stainless steel centrifugal chamber; multi-layer protection design, three-stage vibration reduction, safe and stable.
- The instrument door cover is equipped with a hydraulic rod to reduce operating load.
Specifications
| Model | CFG-6BA |
| Max. Speed | 6000rpm |
| Max. RCF | 4730×g |
| Max. Capacity | 4×300ml Swing rotor |
| Timer | 1s～99min |
| Speed Accuracy | ±10rpm |
| Sound Emission | ≤60dBA |
| Electricity | AC 110V/220V, 50/60Hz |
| External Dimension | 610*450*355mm |
| N.W./G.W. | 52kg/70kg |
| Package Dimension | 820*520*540mm |
Matched Rotors
| Rotor No. | Rotor Type | Max. Speed | Max. Capacity | Max. RCF | Notes |
| No.05619 | Swing Rotor | 4000rpm | 4×14×5/7ml | 3180×g | For 2-7ml vacuum tube |
| Swing Rotor | 4000rpm | 4×300ml(round) | 3180×g | Optional biosafety cover | |
| Adapter | 4×10×5/7ml vacuum tube | For 2-7ml vacuum tube | |||
| Adapter | 4×9×10ml vacuum tube | For 10ml vacuum tube | |||
| Adapter | 4×7×10/15ml | For 10/15ml tube | |||
| Adapter | 4×2×50ml | For 50ml tube | |||
| No.05620 | Swing Rotor | 4000rpm | 4×300ml(rectangle) | 3150×g | Optional biosafety cover |
| Adapter | 4×16×5/7ml vacuum tube | For 2-7ml vacuum tube | |||
| Adapter | 4×12×10ml vacuum tube | For 10ml vacuum tube | |||
| Adapter | 4×9×10/15ml | For 10/15ml tube | |||
| Adapter | 4×4×50ml | For 50ml tube | |||
| No.05623 | Swing Rotor
|
4000rpm
|
4×24×5ml vacuum tube | 2840×g | For 2ml vacuum tube |
| No.05622 | 4×24×7ml vacuum tube | 3140×g | For 5ml vacuum tube | ||
| No.05621 | 4×18×10ml vacuum tube | 3140×g | For 10ml vacuum tube | ||
| No.05211 | Swing Rotor | 4000rpm | 4×250ml(falcon) | 3260×g | 250ml falcon |
| 4×250mlAdapter | |||||
| No.05214 | Swing Rotor | 4000rpm | 2×4×96 well | 2910×g | Optional |
| No.05216 | 2×3×48 well | 2300×g | Optional | ||
| No.05629 | Swing Rotor | 5000rpm | 4×1×50ml | 4730×g | Optional |
| No.05630 | 4×1×100ml | 4730×g | Optional | ||
| No.05635 |
4000rpm |
4×2×100ml | 3020×g | Optional | |
| No.05634 | 4×2×50ml | 3200×g | Optional | ||
| No.05631 | 4×8×15ml | 3200×g | Optional | ||
| No.05639 | 4×16×5ml vacuum tube | 2530×g | For 2ml vacuum tube | ||
| No.05638 | 4×16×7ml vacuum tube | 2890×g | For 5ml vacuum tube | ||
| No.05640 | 4×12×10ml vacuum tube | 2880×g | For 10ml vacuum tube | ||
| No.05182 | Angle Rotor | 2000rpm | 12×Gabor milk fat meter | 815×g | For Gabor milk fat meter |
| No.05139 | Angle Rotor | 6000rpm | 12×15ml | 4430×g | Optional |
| No.05140 | Angle Rotor | 5000rpm | 24×15ml | 3500×g | Optional |
| No.05142 | Angle Rotor | 6000rpm | 4×50ml | 3620×g | Optional |
| No.05143 | Angle Rotor | 6000rpm | 6×50ml | 4110×g | Optional |
| No.05144 | Angle Rotor | 5000rpm | 12×50ml | 3860×g | Optional |
| No.05146 | Angle Rotor | 6000rpm | 4×100ml | 3790×g | Optional |
| No.05147 | Angle Rotor | 5000rpm | 6×100ml | 3130×g | Optional |
| No.05148 | Angle Rotor | 4000rpm | 12×100ml | 2970×g | Optional |
