- Max. Speed: 4000r/min
- Max. RCF: 2200×g
- Max.Capacity: 6×50ml

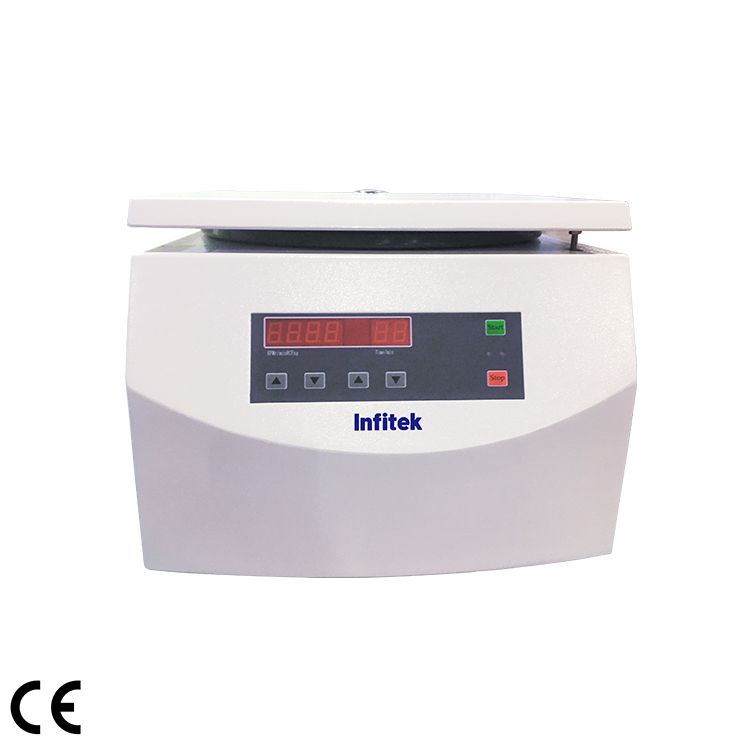

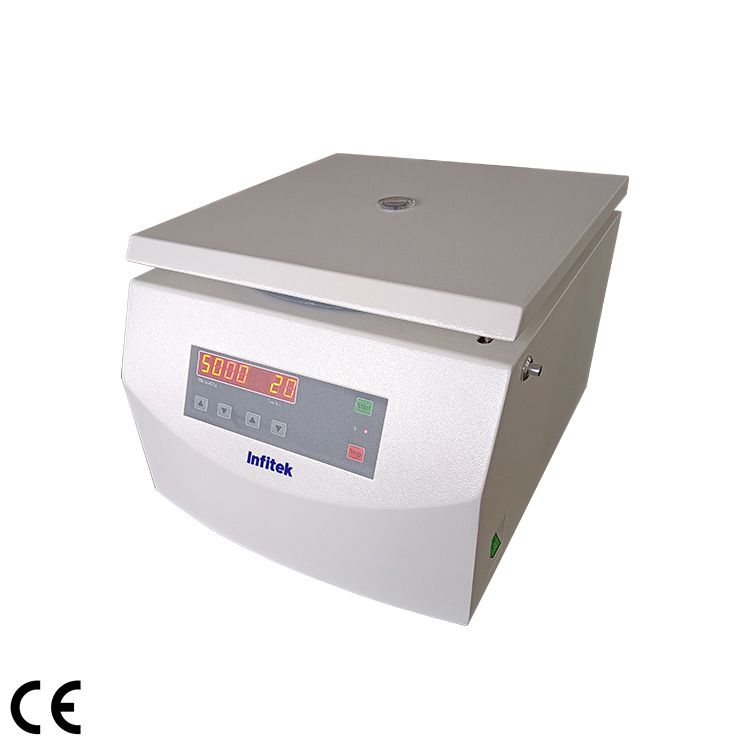

Low Speed Centrifuge, Automatic Balance, CFG-4BA
Description
1. Drive: Brushless DC motor drive, maintenance-free, high torque, fast lifting speed, special combination shock absorption device to make the motor run smoothly, with small vibration, low noise, and meet environmental protection requirements.
2. Display: Intelligent control, touch panel, intuitive digital display.
3. Machine body: Itadopts high-quality steel structure and stainless steel centrifugal chamber.
4. Security: It adopts silent motor, integrated electronic lock.It has multiple protection functions such as door cover, over-speed, imbalance, etc. It is equipped with electronic door lock to ensure safe and reliable operation.
5. Application: Suitable for biochemical laboratory, hospital clinical test, etc.
| Model | CFG-4BA |
| Max. Speed | 4000r/min |
| Max. RCF | 2200×g |
| Max.Capacity | 6×50ml |
| Time Setting | 0～99min |
| Motor | Brushless DC motor, microcomputer control |
| Power Supply | AC 220V 50Hz 3A |
| Dimensions(L×D×H) | 430×340×250mm |
| Net Weight | 20kg |
| Rotor NO. | Max.
Capacity |
Max. Speed | Max. RCF | Dimension
of Centrifuge Tube |
| No.1 Angle Rotor | 24*5ml | 4000r/min | 2200×g | Φ13×75mm |
| No.2 Angle Rotor | 18*10/7ml | 4000r/min | 2200×g | Φ16×106mm |
| No.3 Angle Rotor | 24*10/7ml | 4000r/min | 2200×g | Φ16×106mm |
| No.4 Angle Rotor | 12*15ml | 4000r/min | 2200×g | Φ16×120mm |
| No.5 Angle Rotor | 12*20ml | 4000r/min | 2200×g | Φ20×120mm |
| No.6 Angle Rotor | 6*50ml | 4000r/min | 2200×g | Φ29×116mm |
| Category | Title | File type/size | Download |
| Brochure | Brochure – Lab Centrifuges | PDF(5 MB) | download |
