- Speed: 8000 rpm
- RCF: 12166× g
- Capacity: 6 × 2400 mL
- Temperature Range: -20°C ~ 40°C
- 10 acceleration and deceleration rates

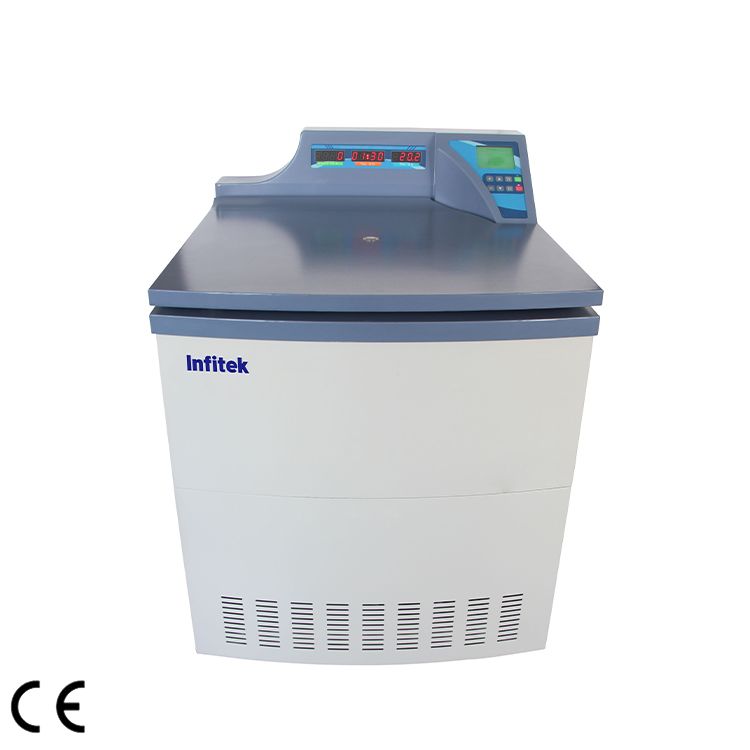

Low Speed Refrigerated Centrifuge, CFGR-8DL
Description
Featuring an ultra-large capacity design of 14.4 L, this series of centrifuges can process 12 bags of 400–500 mL whole blood at one time to ensure high production efficiency. It is widely used in blood centers, pharmaceuticals, biological products, and other industries.
Features
- Drive: Driven by an AC variable-frequency motor. Equipped with a SOFT braking function to prevent sample resuspension.
- Speed Control: Takes 14 seconds to accelerate to the maximum speed, and 15 seconds to decelerate from the maximum speed to zero.
- Display: Intelligent control with a touch panel and dual LCD/LED display. Operating parameters are automatically memorized, and RCF can be set directly.
- Refrigeration: Utilizes an imported CFC-free compressor unit and control valve, featuring low vibration, rapid cooling, and low noise, while meeting environmental protection standards.
- Rotor: Features a standby cooling function. Rotors are autoclavable (121°C, 20 minutes).
- Body Structure: Premium steel housing and stainless steel chamber.
- Safety: Rotor identification function (optional), electronic safety door lock, and multiple protection features against lid opening, overspeed, and imbalance.
- Control: 10 acceleration and deceleration rates, storage for 40 custom operating modes; inching/short-spin function supports diverse centrifugation
Specifications
| Model | CFGR-8DL |
| Max. Speed | 8000 rpm |
| Max. RCF | 12166 × g |
| Max. Capacity | 6 × 2400 mL |
| Speed Accuracy | ±20 rpm |
| Timer Range | 0–99 h 59 min 59 s |
| Temperature Range | -20°C ~ 40°C |
| Temperature Accuracy | ±1°C |
| Compressor | High-performance compressor with CFC-free refrigerant |
| Noise | ≤ 58 dB |
| Motor | AC variable-frequency motor, microprocessor control |
| Electricity | AC 220 V, 50 Hz, 35 A |
| Dimensions | 960*860*1200 mm |
| Weight | 500 kg |
Compatible Rotors and Tubes
| Rotor No. | Max. Capacity | Max. Speed | Max. RCF | Tube Dimensions |
| No.1 Angle Rotor | 6×500 mL | 8000 rpm | 11680×g | Φ74×168 mm |
| No.2 Angle Rotor | 6×1000 mL | 7200 rpm | 12166×g | Φ97×175 mm |
| No.3 Swinging Rotor | 6×2400 mL | 4200 rpm | 6130×g | 24 × 200 mL quadruple blood bags |
| 12 × 450–500 mL blood bags | ||||
| No.4 Swinging Rotor | 6×2×1000 mL | 4000 rpm | 5000×g | Biopharmaceutical applications |
