- Max Speed/RCF: 6000rpm/4020×g
- Max. Capacity: 100mLx4

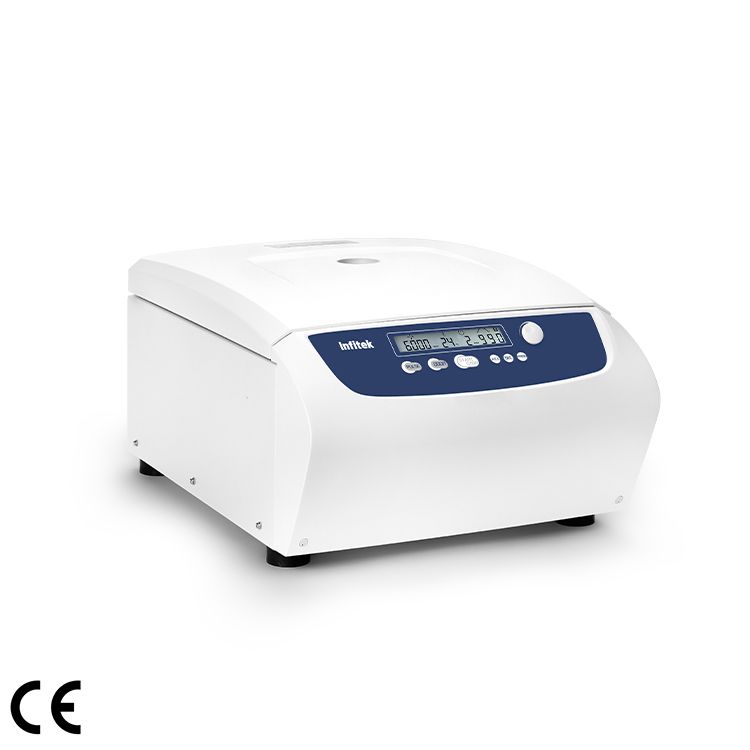

Multi-Purpose Centrifuge, CFG-6D
Description
CFG-6D Multi-Purpose Low-speed Centrifuge is ideal for the centrifugation of samples in clinical chemistry, cytology, research laboratories, industrial laboratories, etc.
This centrifuge is suitable for tubes with caps, blood collection or urine tubes. Swing-out bucket rotors and adapters can be compatible with standard tubes up to100mL at low speed.
Features
- Speed range: 300- 6000rpm.
- Maximum capacity: 100 ml×4.
- 9 acceleration/10 brake speed settings to ensure optimal separation.
- A wide range of rotors optional (Angle Rotor and Swing Rotor).
- Automatic rotor identification.
- Timers can be set up to 99 min or HD for continuous running.
- Pulse key for quick spin function.
- 9 procedures stored in memory makes the operation much simplified.
- Maintenance-free brushless DC motors.
Specifications
|
Specifications |
CFG-6D |
|
Speed range |
300-6000rpm increment:10rpm |
|
Max. RCF |
4020×g |
|
Speed accuracy |
±20rpm |
|
Max. Capacity |
100mLx4 |
|
Run Time |
30sec-99mins/continuous |
|
Motor |
Brushless DC |
|
Display |
LCD |
|
Program Memory |
9 |
|
Safety Devices |
Door Imbalance protection |
|
Acceleration/Deceleration |
9↑/10↓steps |
|
Power |
660W; Single-phase AC220V-240V, 50Hz/60Hz, 6.3A; AC110V-120V,50Hz/60Hz,10A |
|
Dimension[W×D×H] |
445mm×579mm×269mm |
|
Weight |
36 kg |
|
Advanced features |
speed/rcf switch; Rotor identification |
Available Adapter
|
|
Uncapping block |
 |
CAT. NO. 19400041(Standard accessory)
for CFG-6D Max. speed: 4000rpm Max. RCF: 2950×g Rotor material: stainless steel body and adapter |
 |
CAT. NO. 19500025
15ml conical tube adapter, MOQ 8 Pcs (optional) |

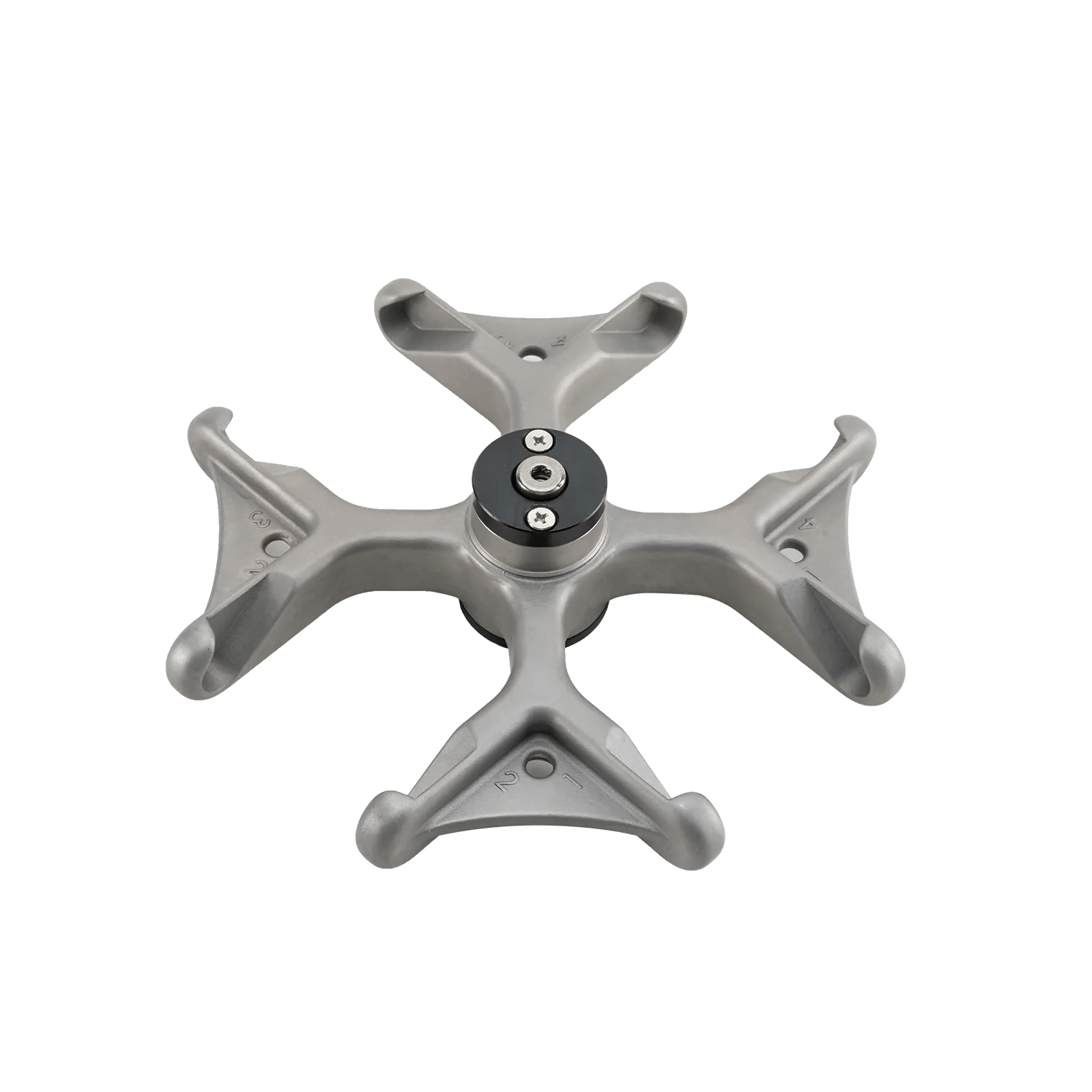

Available rotors
 |
CAT. NO. 19400062
CFG-6D Max. speed: 4000rpm Max. RCF: 2200×g Rotor capacity: Micro-plates 384-PCR/96-PCR/Elisa plates×8pcs; Deep well plates×4pcs Rotor material: stainless steel body and aluminum buckets |
 |
CAT. NO. 19400036
CFG-6D Max. speed: 6000rpm Max. RCF: 4020×g Rotor capacity: PCR 8 trips×12 Rotor material: aluminum Biosealing: Yes |
 |
CAT. NO. 19400034
CFG-6D Max. speed: 6000rpm Max. RCF: 4020×g Rotor capacity: 2mL×30 Rotor material: aluminum Biosealing: Yes |
 |
CAT. NO. 19400037
CFG-6D Max. speed: 6000rpm Max. RCF: 4020×g Rotor capacity: 2mL×60 Rotor material: aluminum Biosealing: Yes |
 |
CAT. NO. 19400038 (cone button)
CFG-6D Max. speed: 6000rpm Max. RCF: 4020×g Rotor capacity: 50mL×6 or 15mL×6 Rotor material: aluminum Biosealing: Yes |
 |
CAT. NO. 19400035 (cone button)
CFG-6D Max. speed: 6000rpm Max. RCF: 4020×g Rotor capacity: 5mL×18 Rotor material: stainless steel body and aluminum buckets Biosealing: Yes |
 |
CAT. NO. 19400039 (round button)
CFG-6D Max. speed: 5000rpm Max. RCF: 3960xg Rotor capacity: 50mL×8 or 15mLx16 Rotor material: aluminum body and stainless steel adapter |
 |
CAT. NO. 19400040 (round button)
CFG-6D Max. speed: 4500rpm Max. RCF: 3210xg Rotor capacity: 15mL×30 Rotor material: aluminum body and stainless steel adapter Bio-safe (Bio-sealing): Yes |
