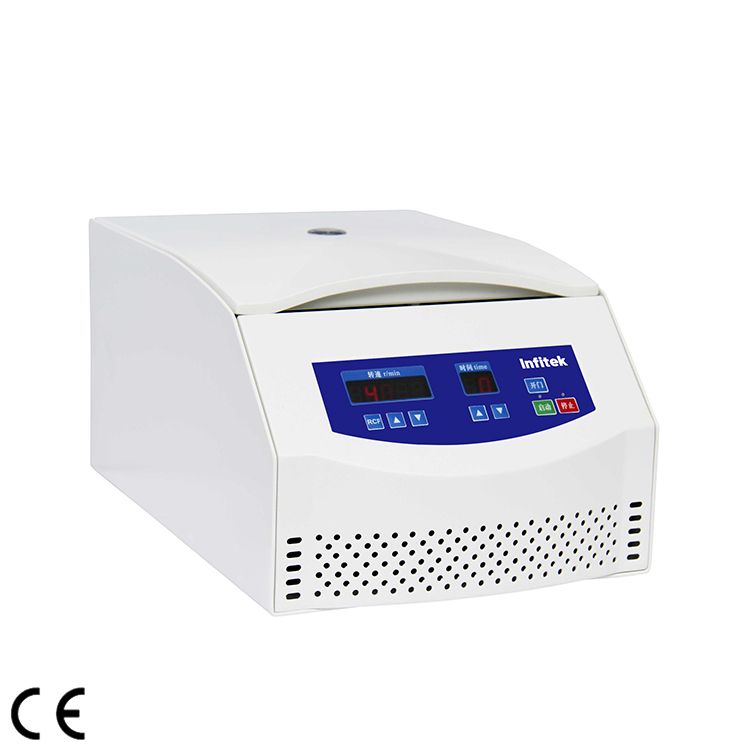

Description

Application

It is mainly used in laboratories of biology, medicine, chemistry, physics, etc. It is an ideal instrument for the analysis of serum, plasma, urine, radioimmunoassay, etc.

Features

All-steel multi-layer explosion-proof structure, stainless steel centrifugal chamber.
Maintenance-free DC brushless motor drive, smooth and quiet operation.
Microcomputer processor precise control, digital display, easy operation, automatic calculation of centrifugal force RCF value, speed and centrifugal force can be switched with each other by one key.
10 acceleration rates and 10 deceleration rates for users to choose to achieve the best centrifugal effect.
The mute electronic door lock is easy to use and has an emergency door opening function.
Small size and low cover height, saving laboratory space.
With door lock, over-speed, imbalance automatic protection, and fault self-diagnosis.

Specifications

Model	CFG-6BC
Max. Speed	6000rpm
Max. RCF	3660×g
Max. Capacity	6×100ml
Timer	1s～99min
Speed Accuracy	±10rpm
Sound Emission	≤55dBA
Electricity	AC 110V/220V, 50/60Hz
External Dimension	470320250mm
N.W./G.W.	16kg/18kg
Package Dimension	565410340mm

Matched Rotors

Rotor No.	Rotor Type	Max. Speed	Max. Capacity	Max. RCF
No.05177	Angle rotor	4000rpm	12×10/15ml	2150×g
No.05198	Angle rotor	4000rpm	12×20ml	2220×g
No.05175	Angle rotor	4000rpm	18×10ml	2250×g
No.05179	Angle rotor	4000rpm	30×7/5ml	2250×g
No.05180	Angle rotor	4000rpm	6×50ml	2100×g
No.05176	Angle rotor	4000rpm	24×10ml	2200×g
No.05137	Angle rotor	6000rpm	6×15ml	3660×g
No.05143	Angle rotor	5000rpm	6×50ml	2850×g
No.05147	Angle rotor	5000rpm	6×100ml	3130×g
No.05139	Angle rotor	5000rpm	12×15ml	3080×g
No.05221	Swing rotor	5000rpm	6×10ml	3460×g
