- Speed: 4000rpm
- RCF: 2390×g
- Capacity: 6×50ml Angle rotor

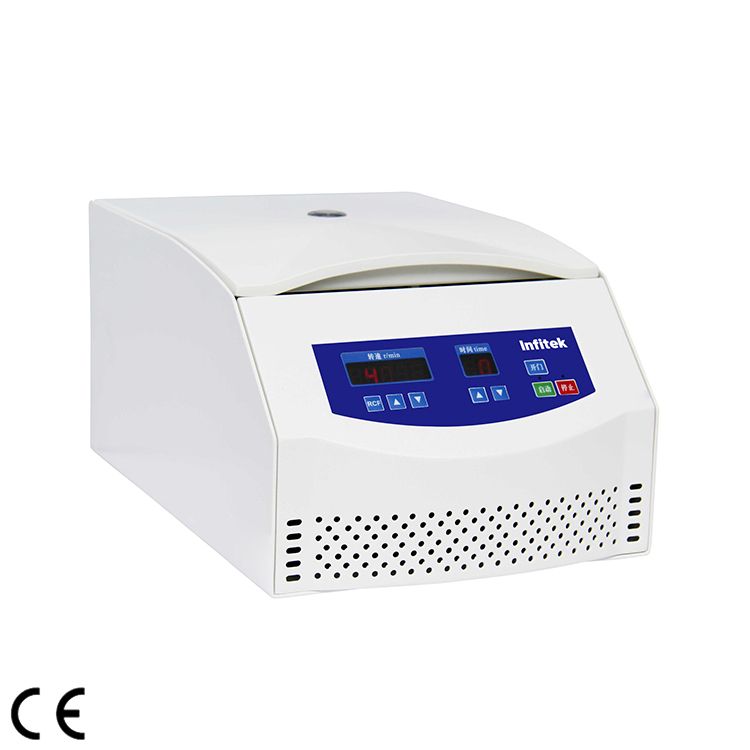

Low Speed Centrifuge, CFG-4AY
Description
Application
It is mainly used in laboratories of biology, medicine, chemistry, physics, etc. It is an ideal instrument for the analysis of serum, plasma, urine, radioimmunoassay, etc.
Features
- All-steel multi-layer explosion-proof structure, stainless steel centrifugal chamber.
- Maintenance-free DC brushless motor drive, smooth and quiet operation.
- Microcomputer processor precise control, digital display, easy operation, automatic calculation of centrifugal force RCF value, speed and centrifugal force can be switched with each other by one key.
- 10 acceleration rates and 10 deceleration rates for users to choose to achieve the best centrifugal effect.
- The muteelectronic door lock is easy to use and has an emergency door opening function.
- Small size and low cover height, saving laboratory space.
- With door lock, over-speed, imbalance automatic protection, and fault self-diagnosis.
Specifications
Specification
| Model | CFG-4AY |
| Max. Speed | 4000rpm |
| Max. RCF | 2390×g |
| Max. Capacity | 6×50ml Angle rotor |
| Timer | 1～99min |
| Speed Accuracy | ±10rpm |
| Sound Emission | ≤58dBA |
| Electricity | AC 110V/220V, 50/60Hz |
| External Dimension | 470*320*250mm |
| N.W./G.W. | 16kg/18kg |
| Package Dimension | 565*410*340mm |
Matched Rotors
| Rotor No. | Rotor Type | Max. Speed | Max. Capacity | Max. RCF | Notes |
| No.05174 | Angle rotor | 4000rpm | 12×10ml | 2150×g | 5-10ml blood collection tube |
| No.05177 | Angle rotor | 4000rpm | 12×15ml | 2150×g | 5-15ml general purpose |
| No.05198 | Angle rotor | 4000rpm | 12×20ml | 2220×g | |
| No.05175 | Angle rotor | 4000rpm | 18×10ml | 2250×g | 5-10ml blood collection tube |
| No.05179 | Angle rotor | 4000rpm | 30×5ml | 2250×g | 2-4ml blood collection tube |
| No.05179 | Angle rotor | 4000rpm | 30×7ml | 2250×g | 5-7ml blood collection tube |
| No.05180 | Angle rotor | 4000rpm | 6×50ml | 2100×g | |
| No.05176 | Angle rotor | 4000rpm | 24×10ml | 2200×g | 5-10ml blood collection tube |
| No.05242 | Swing rotor | 4000rpm | 6×10ml | 2390×g | 10ml blood collection tube |
